HW-Z6 Convenient Height and Weight Scale

Product introduction

Measurement items: height, weight, BMI
Expanded functions: human body composition, body temperature
Height range: 0-200CM
Weight range: 1-200KG
Product advantages:
7-inch true color high-definition touchable large screen
The body is foldable
High-speed thermal printing, easy paper replacement
The chassis has wheels and can be carried to the countryside by car

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer case

product description

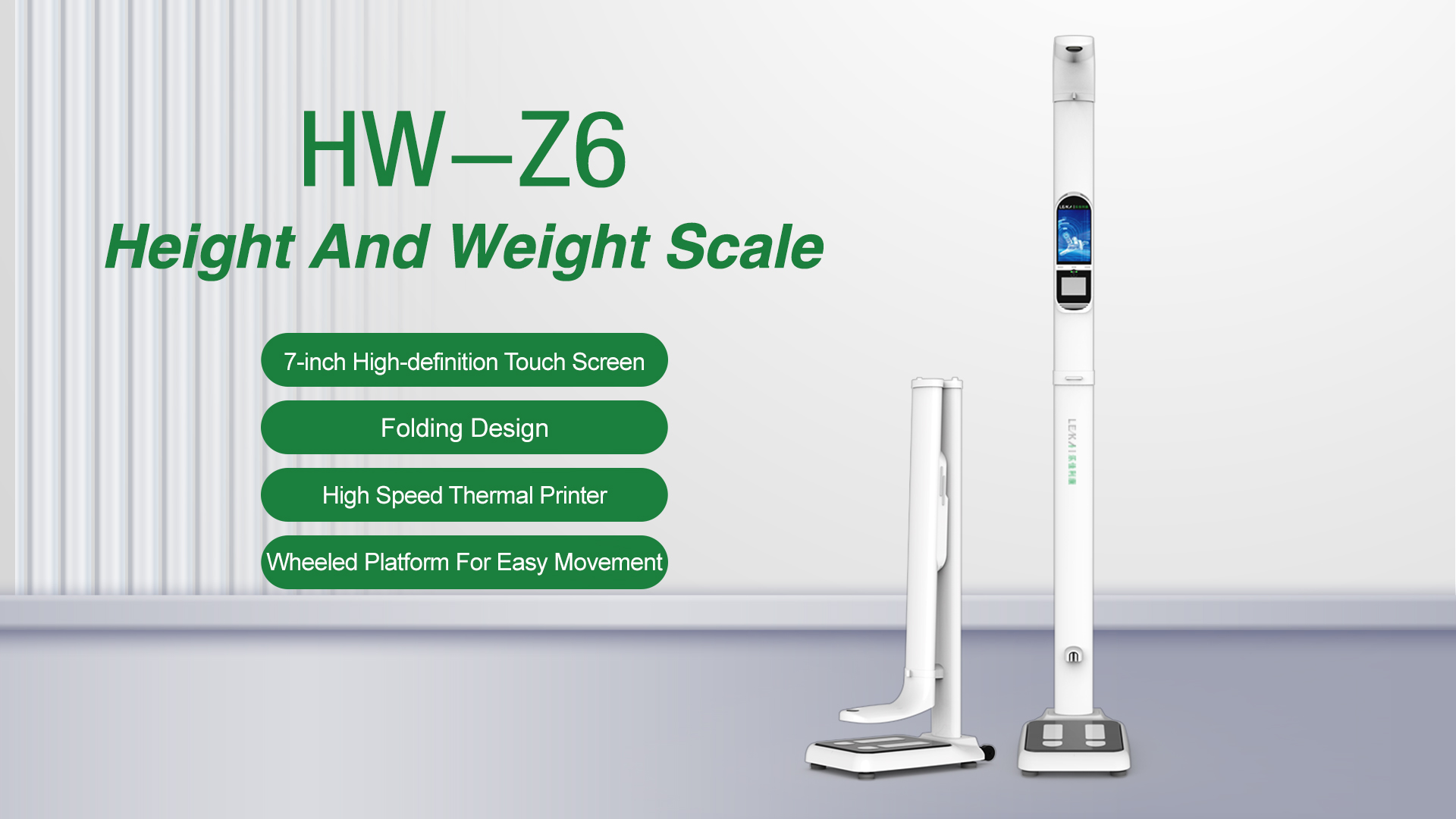

HW-Z6 portable Height and Weight Scale is a fully functional, easy to operate, accurate and reliable measuring device.The 7-inch true color high-definition touch screen can accurately measure height, weight, and BMI. The height after folding is only about 1.2 meters. It has pulleys on the bottom, making it very convenient to move around and can be used in cars when going to the countryside.

Test items

Features

STEP ONE

Precise measurement

Weight measurement method: China Aviation Industry Corporation's high-precision balance beam pressure sensor measures weight, with high sensitivity and accurate and fast measurement.

learn more
STEP TWO

Display method

7-inch true color high-definition touchable large screen.

learn more
STEP THREE

Fully automatic voice broadcast

Guided measurement throughout the process, loud voice prompts, clear voice guidance from the system, and automatic broadcast of measurement results.

learn more

STEP ONE

Portable and foldable, with pulleys on the bottom

It has a built-in folding function, and the folding height is ≤120cm. It has pulleys on the bottom, making it very convenient to move around. It can be used in cars when going to the countryside.

learn more
STEP TWO

data transmission

Standard RS232 communication interface, optional WIFI interface or Bluetooth.

learn more
STEP THREE

High speed thermal printing

It adopts a high-speed thermal and easy-to-install printer, which is easy to change paper. It can print physical examination reports. You can set the printing reference standard range and health tips by yourself, and you can also set the printing of the name of the medical and health unit.

learn more

Function parameter

Operation method	7-inch color high-definition LCD screen
Measurement speed	480 times/hour
Height measuring device	Imported ultrasonic detector
power	Average power 10W
Height measurement range	1-200cm, graduation value 0.1cm
voltage	AC100-240V,50Hz
load cell	High precision pressure sensor
ambient temperature	Temperature -10--40 degrees
Weight measurement range	1-200kg, graduation value 0.1kg
Body height	235cm
BMI normal range	18.5-24.0
Height after folding	120cm
data transmission	RS232 standard interface
Net weight of the whole machine	20kg
language	Language broadcast measurement results
Packing	Whole machine packaging

Scope of application

health cabin

Through the health cabins of community and township health centers, we comprehensively carry out health education, health testing, health assessment, and health guidance reports to help residents do health prevention work and assist people with chronic diseases to do health follow-up.
Pension agency

Help organizations establish, update, and collect personnel health records.Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent in advance and reduce risks.
school organization

With the improvement of health awareness, more and more schools are beginning to pay attention to students' physical health and incorporate health examinations into their daily management systems.
Medical institutions

Help primary medical institutions build Internet + intelligent chronic disease management centers at the lowest cost, and provide efficient tools for primary medical and health institutions.
business unit

Help organizations establish, update, and collect personnel health records.Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent in advance and reduce risks.
Medical center

The services provided by the physical examination center are more comprehensive and detailed, suitable for comprehensive assessment of health status; while Intelligent Health Examination Machine is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with all-round health. Serve.
