HW-900B Height and weight blood pressure scale

HW-900B Height and weight blood pressure scale

Product introduction

Measurement items: height, weight, BMI, blood pressure
Height range: 0-200CM
Weight range: 1-500KG
Product advantages:
Using high-precision ultrasonic detectors, non-contact height measurement
Adopts digital display screen, which can display time, date and temperature in standby mode
Adopt high-precision balance beam pressure sensor
Big brand blood pressure monitor
High-speed thermal printing, easy paper replacement

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer case

product description

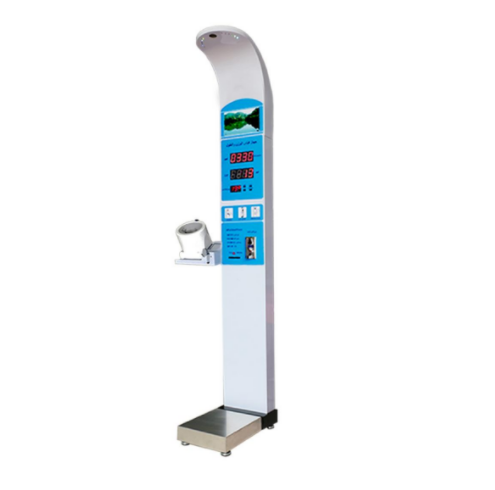

HW-900B Ultrasonic Height, Weight and Blood Pressure Meter is a height and weight scale with blood pressure. This device can measure height, weight, blood pressure, and other health indicators. The sphygmomanometer is an Omron/Panasonic sphygmomanometer. The whole process is guided self-service measurement and operation. There are voice operation prompts and measurement results broadcast during the process, which is suitable for public health examinations, hospitals, physical examination centers, health centers, clinics, elderly care centers and other places.

Test items

Features

STEP ONE

Appearance design

The appearance design is in line with ergonomics; the whole machine is stamped with cold plates, and the surface is electrostatically sprayed. The chassis is not cast iron, which is strong and durable, beautiful in appearance, corrosion-resistant, and impact-resistant.

learn more
STEP TWO

Operation method

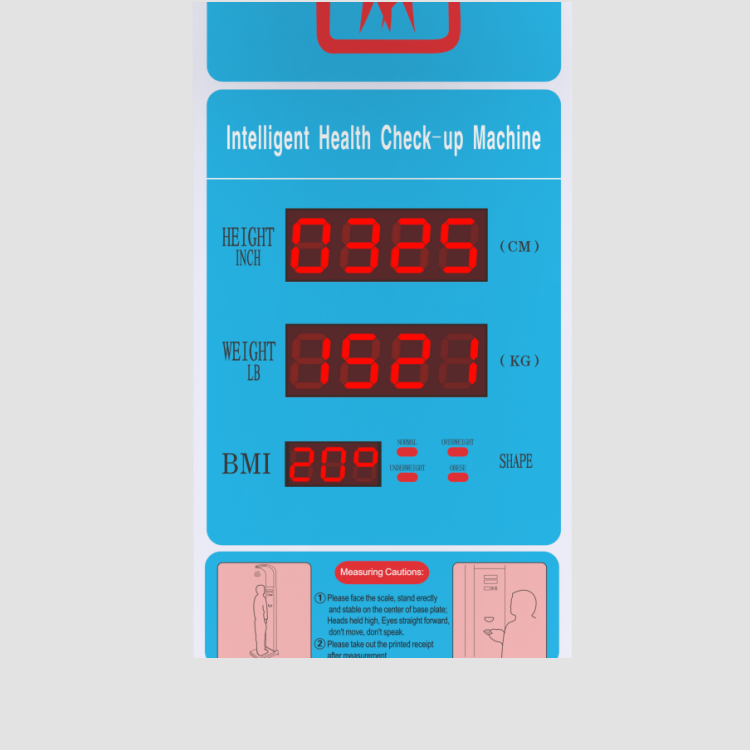

The 1.8-inch high-brightness LED digital display is not affected by external light and viewing angle. It displays date, time and indoor temperature in standby mode.

learn more
STEP THREE

Fully automatic voice broadcast

The system provides clear voice guidance for operation and automatically broadcasts measurement results.

learn more

STEP ONE

Appearance design

The appearance design is in line with ergonomics; the whole machine is stamped with cold plates, and the surface is electrostatically sprayed. The chassis is not cast iron, which is strong and durable, beautiful in appearance, corrosion-resistant, and impact-resistant.

learn more
STEP TWO

Operation method

The 1.8-inch high-brightness LED digital display is not affected by external light and viewing angle. It displays date, time and indoor temperature in standby mode.

learn more
STEP THREE

Fully automatic voice broadcast

The system provides clear voice guidance for operation and automatically broadcasts measurement results.

learn more

STEP ONE

Big brand blood pressure monitor

Arm tube electronic blood pressure monitor

learn more
STEP TWO

data transmission

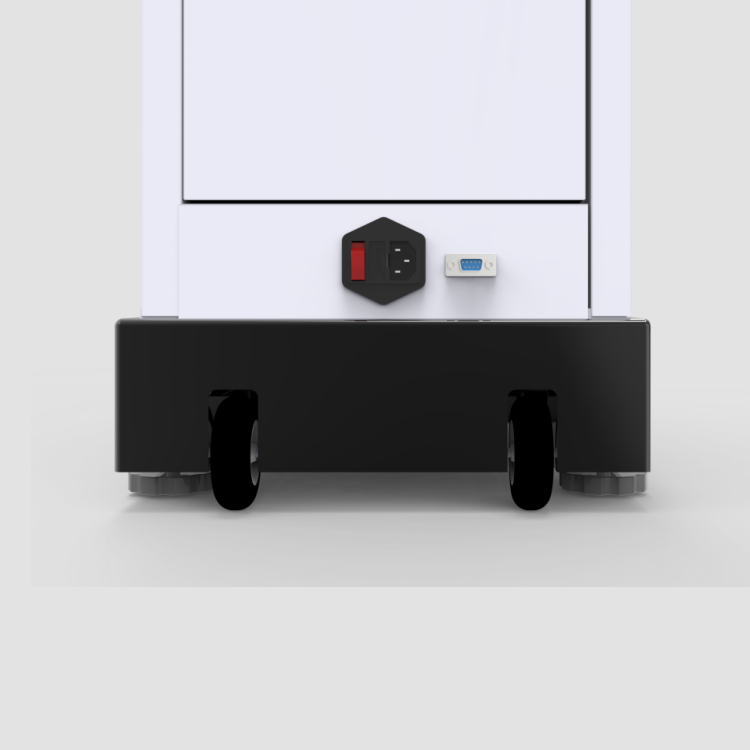

The standard RS232 communication interface can be connected to the unit's physical examination system, measurement data can be uploaded, and the data transmission performance is stable. The serial port protocol is provided free of charge.

learn more
STEP THREE

Built-in thermal printer

High-speed thermal printing measurement report, automatic paper cutting, easy paper replacement, easy operation, convenient and practical.

learn more

STEP ONE

Big brand blood pressure monitor

Arm tube electronic blood pressure monitor

learn more
STEP TWO

data transmission

The standard RS232 communication interface can be connected to the unit's physical examination system, measurement data can be uploaded, and the data transmission performance is stable. The serial port protocol is provided free of charge.

learn more
STEP THREE

Built-in thermal printer

High-speed thermal printing measurement report, automatic paper cutting, easy paper replacement, easy operation, convenient and practical.

learn more

Function parameter

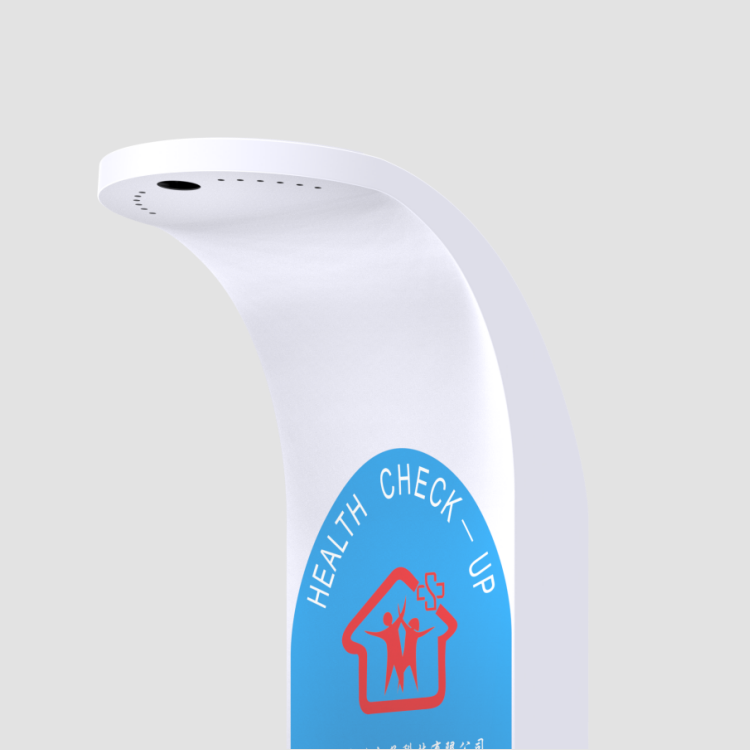

Ultrasonic height detector	High-precision height probe measures height from 0-200cm with an accuracy of 0.1cm

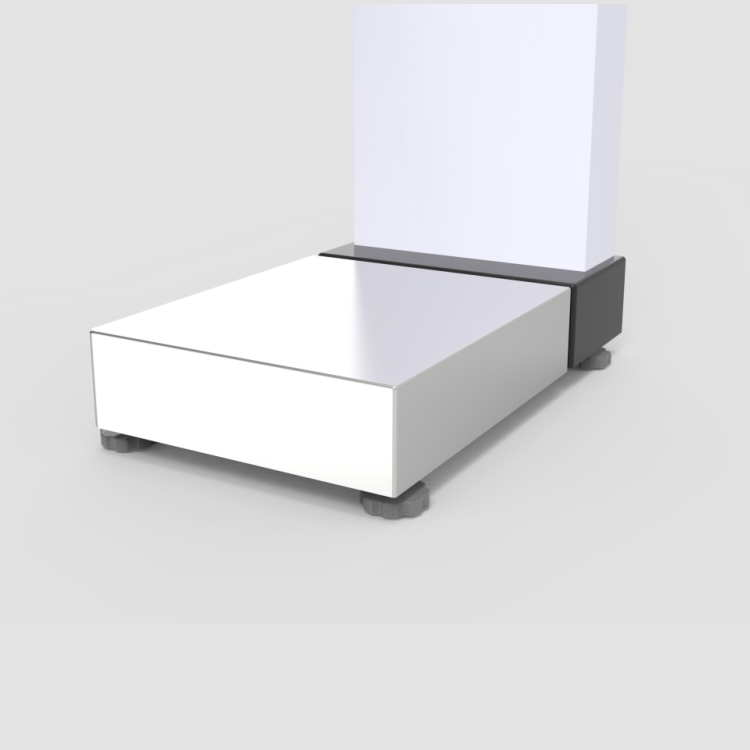

High precision pressure sensor	High-precision balance beam pressure sensor weighing 1-500kg with an accuracy of 0.1kg
Fully automatic blood pressure monitor	Medical pulse wave sphygmomanometer, oscillometric method, 17-42cm large arm tube, accuracy within ±3mmHg
Heart rate measurement range	40-180 times/minute
Print function	High-speed thermal printer, easy to change paper
Operation method	1.8-inch large digital tube display, voice and video guidance for operation
data transmission	RS-232 serial port upload to computer, optional Bluetooth or wireless transmission to mobile phone
voltage	AC110-240V, 50HZ
Dimensions	MAX:3355235CM
Net weight of the whole machine	40KG
average power consumption	≤10W
working environment	Temperature: -10℃-+40℃, humidity: ≤85%

Scope of application

health cabin

Through the health cabins of community and township health centers, we comprehensively carry out health education, health testing, health assessment, and health guidance reports to help residents do health prevention work and assist people with chronic diseases to do health follow-up.
Pension agency

Help organizations establish, update, and collect personnel health records.Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent and reduce risks in advance.
school organization

With the improvement of health awareness, more and more schools are beginning to pay attention to students' physical health and incorporate health examinations into their daily management systems.
Medical institutions

Help primary medical institutions build Internet + intelligent chronic disease management centers at the lowest cost, and provide efficient tools for primary medical and health institutions.
business unit

Help organizations establish, update, and collect personnel health records.Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent and reduce risks in advance.
Medical center

The services provided by the physical examination center are more comprehensive and detailed, suitable for comprehensive assessment of health status; while Intelligent Health Examination Machine is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with all-round health. Serve.

Scope of application

health cabin

Through the health cabins of community and township health centers, we comprehensively carry out health education, health testing, health assessment, and health guidance reports to help residents do health prevention work and assist people with chronic diseases to do health follow-up.
Pension agency

Help organizations establish, update, and collect personnel health records.Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent and reduce risks in advance.
school organization

With the improvement of health awareness, more and more schools are beginning to pay attention to students' physical health and incorporate health examinations into their daily management systems.
Medical institutions

Help primary medical institutions build Internet + intelligent chronic disease management centers at the lowest cost, and provide efficient tools for primary medical and health institutions.
business unit

Help organizations establish, update, and collect personnel health records.Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent and reduce risks in advance.
Medical center

The services provided by the physical examination center are more comprehensive and detailed, suitable for comprehensive assessment of health status; while Intelligent Health Examination Machine is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with all-round health. Serve.
