HW-S7 lifting type Height and Weight Scale

Product Introduction

Pre-sale consultation phone number: 13838063822

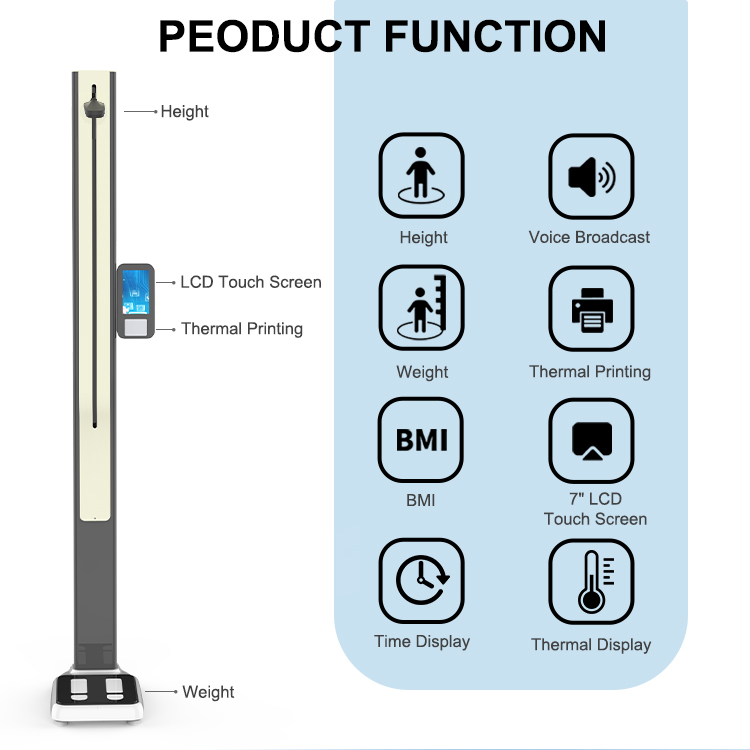

Measurement items: Height, weight, BMI, Developmental Evaluation
Height range: 90-210CM
Weight range: 1-200KG
Product Advantages:
High-precision lift detector is adopted.
High precision balanced beam pressure sensor.
It comes with its own WHO evaluation and nine-city evaluation system in China.
The measurement results are thermally printed, easy to change paper, and the hospital name and telephone can be set up when looking up.

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

Product Introduction

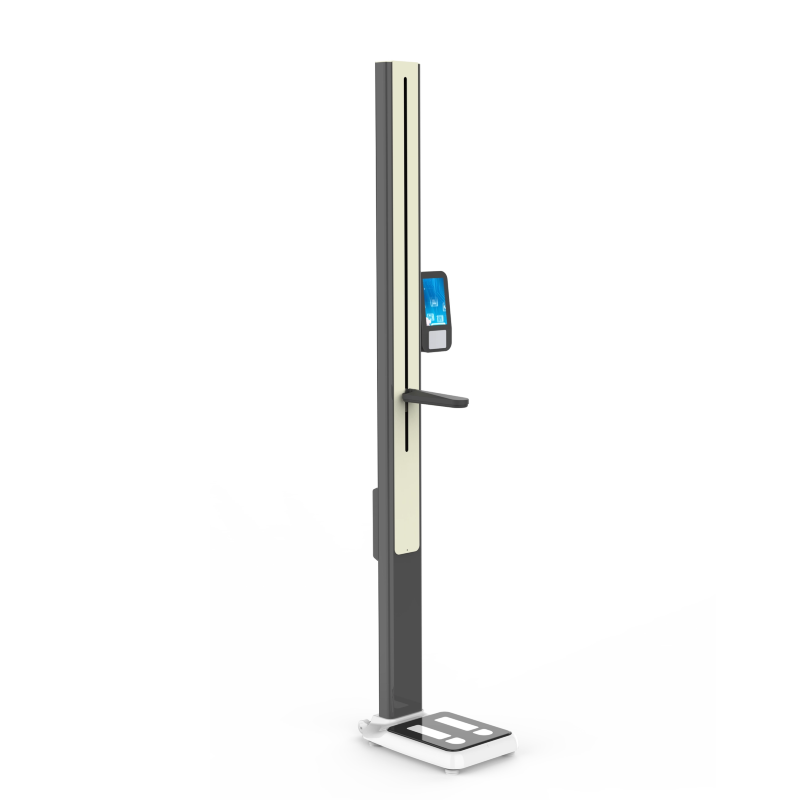

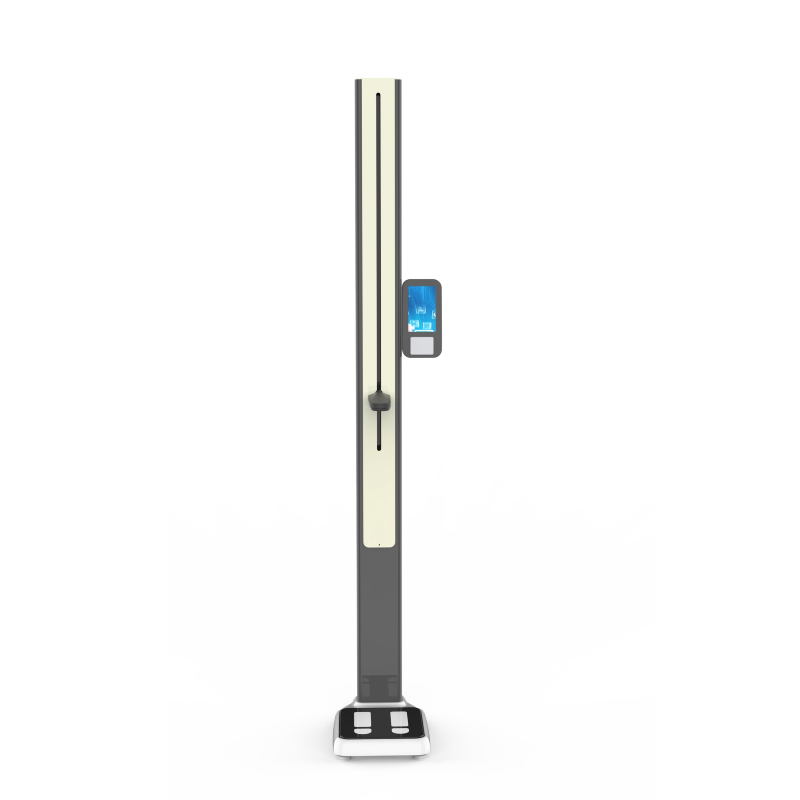

HW-S7 lifting type Height and Weight Scale can automatically measure height, weight, body shape index BMI, body shape fat and thin tips; during the measurement process, the top of the head is monitored in real time, the measuring rod automatically slows down, touches the top of the head, and returns in the same way, avoids errors caused by hair, and more accurate and comfortable measurements, the whole machine is designed with a clear voice broadcast synchronously.

Testing items

Features

STEP ONE

Appearance design

The whole machine has a humanized design, cold plate stamping molding, electrostatic spraying on the surface, non-cast iron chassis, strong and durable, beautiful appearance, corrosion-resistant and impact-resistant.

learn more
STEP TWO

Display method

The whole process guided measurement is provided, the voice prompts are loud, the system clearly guides the voice and automatically broadcasts the measurement results.

learn more
STEP THREE

Accurate measurement

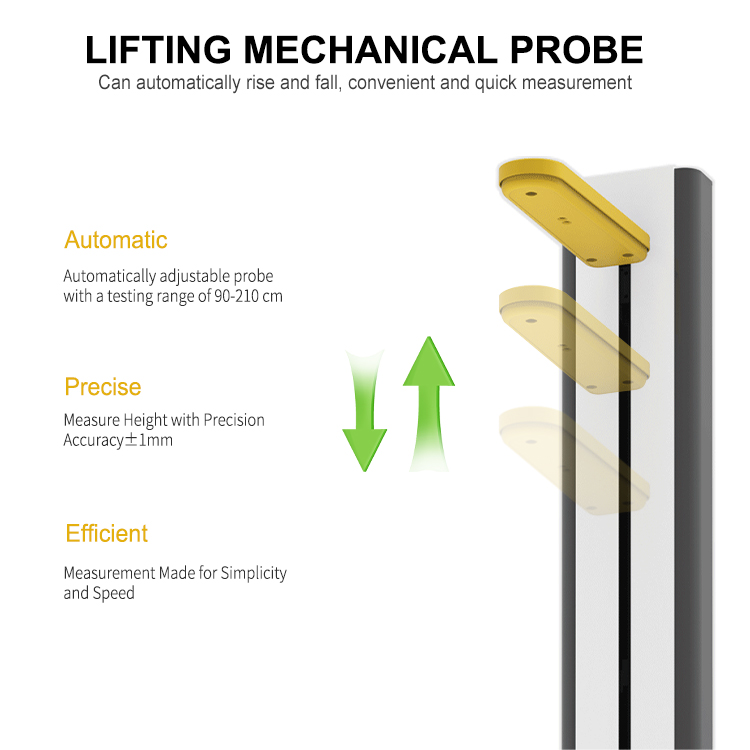

High-precision lift detector is used to measure height with stepper motor precise speed and position control. It is not affected by the temperature and humidity of the environment, and the position error is very small and does not accumulate to avoid errors caused by hair.

learn more

STEP ONE

Display method

7-inch true color high-definition touch screen, the display can rotate 90º for easy data reading, and is not affected by external light and viewing angle. The standby state displays the current date, time, and indoor temperature.

learn more
STEP TWO

Data transmission

The standard RS232 communication interface can connect to the unit's physical examination system, upload measurement data, stable transmission data performance, and provide free serial port protocol. It comes with its own WHO evaluation and nine-city evaluation system in China.

learn more
STEP THREE

Printing method

The measurement results are thermally printed, easy to change paper, and the hospital name and telephone number can be set up when looking up.

learn more

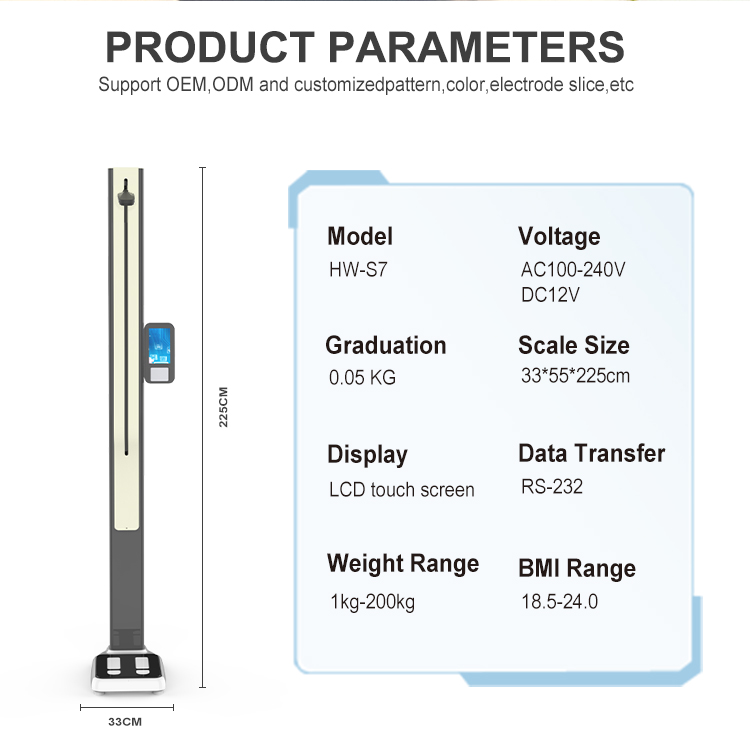

Functional parameters

model	HW-S7
Net weight of the whole machine	28KG
Battery voltage	DC12V, 2A
Body size	3555235CM
Height measurement range	90-210cm, indexing value 0.1cm
Display method	High-definition LCD screen display
Weight measurement range	1-200kg, indexing value 0.1kg
Data transmission	RS-232 standard interface or wireless Bluetooth transmission (optional)
power	10W
voice	Test voice prompts, voice broadcast measurement results
Ambient temperature	-10--40 degrees
Packaging method	Whole machine packaging

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
