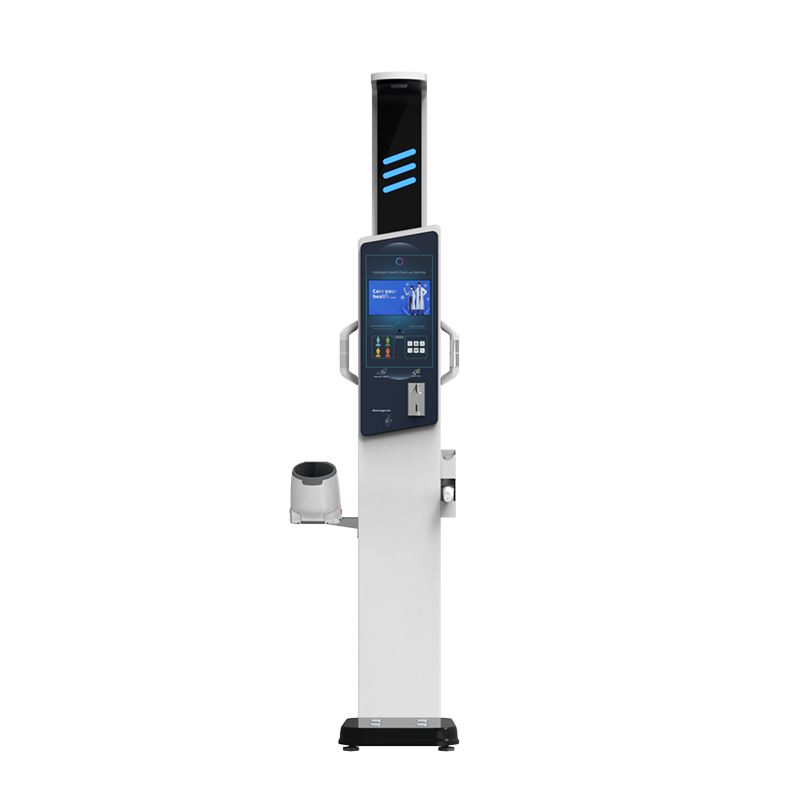

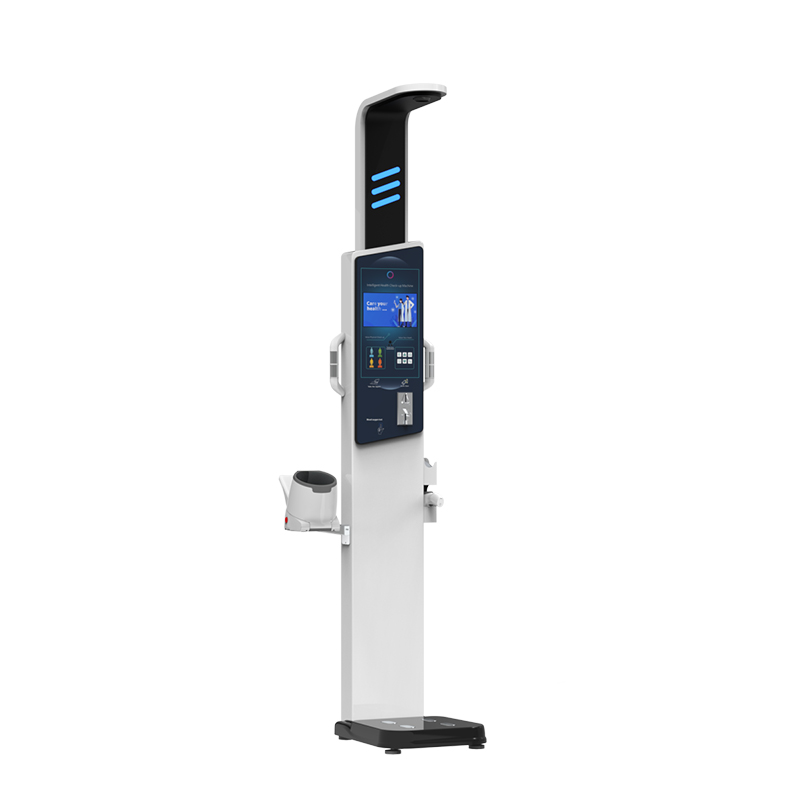

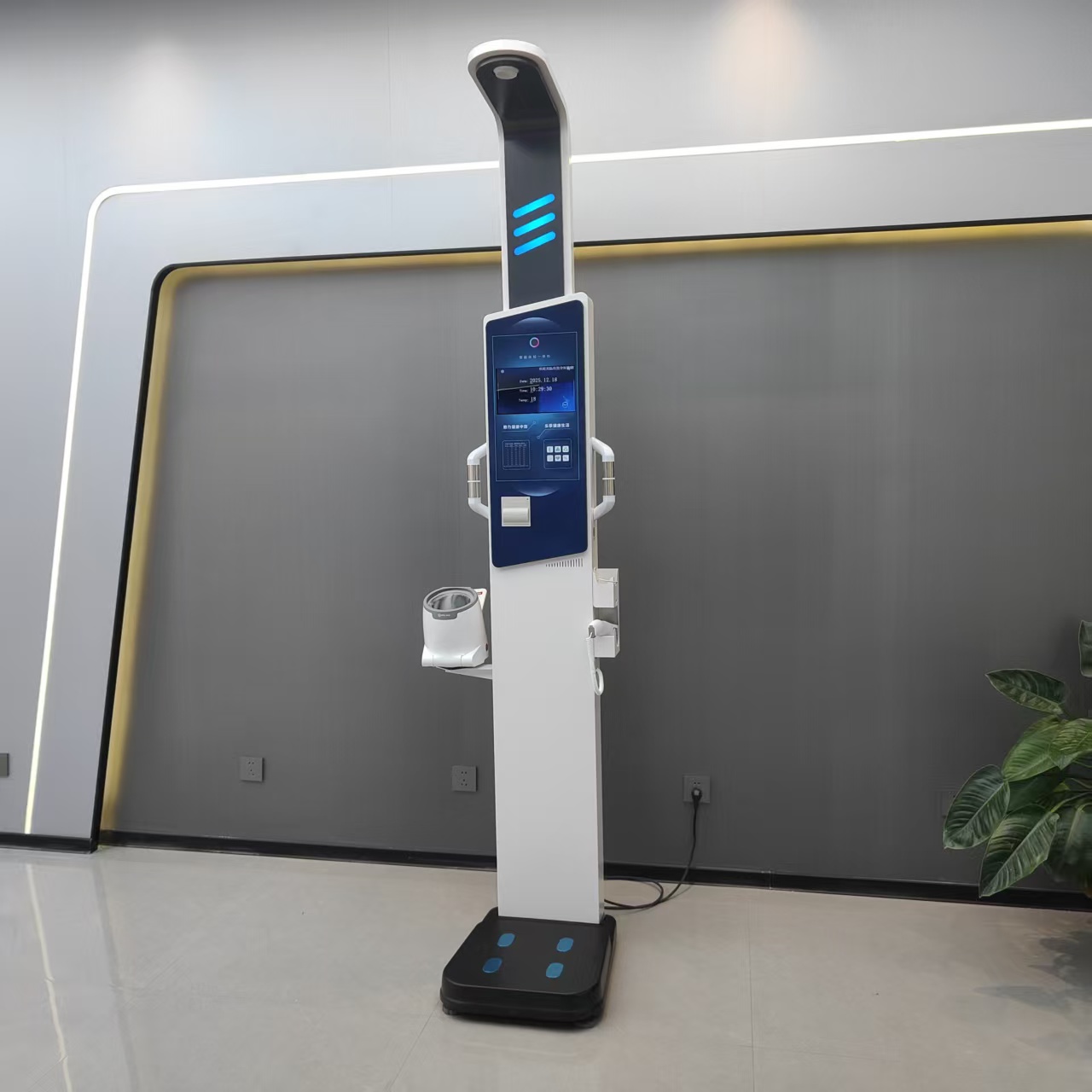

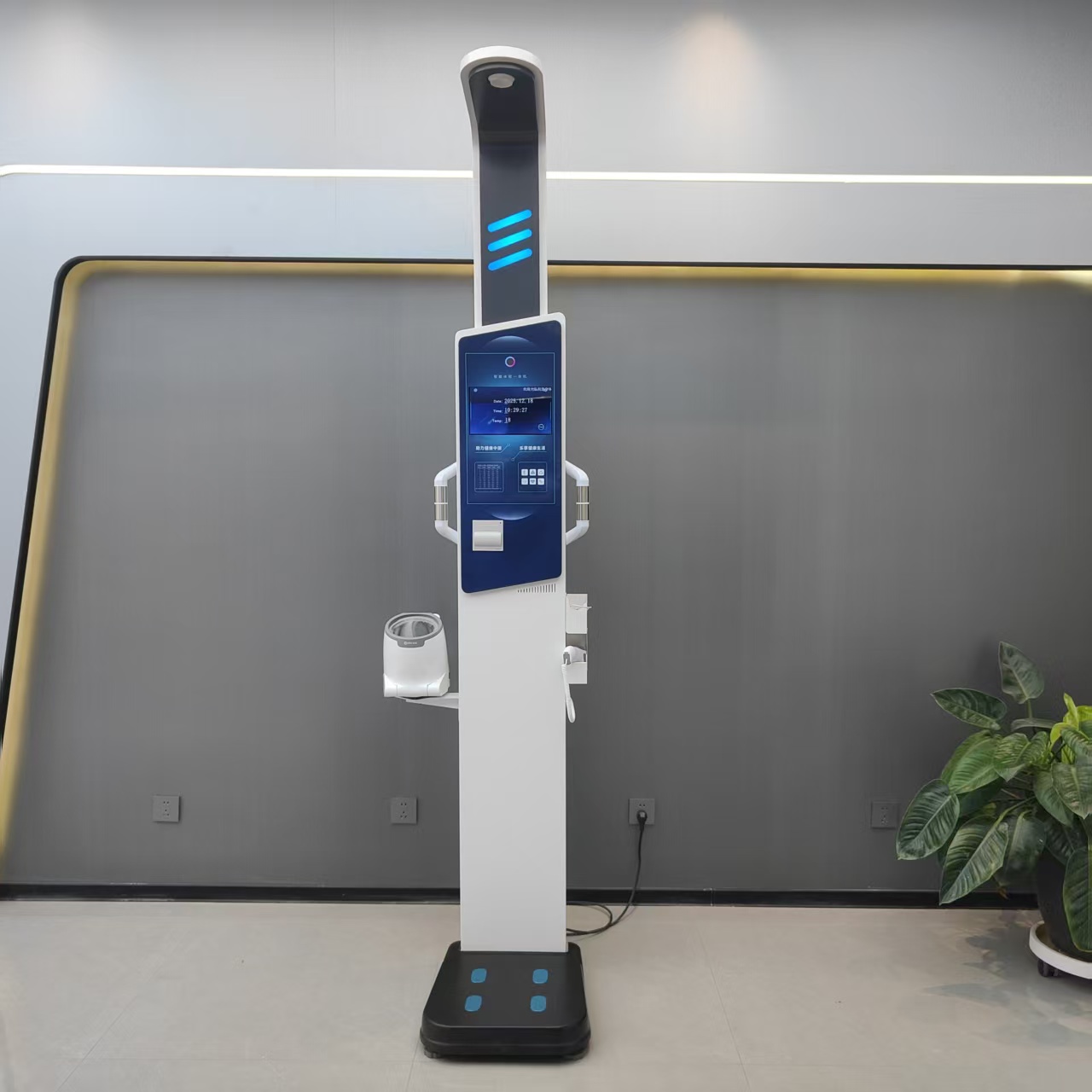

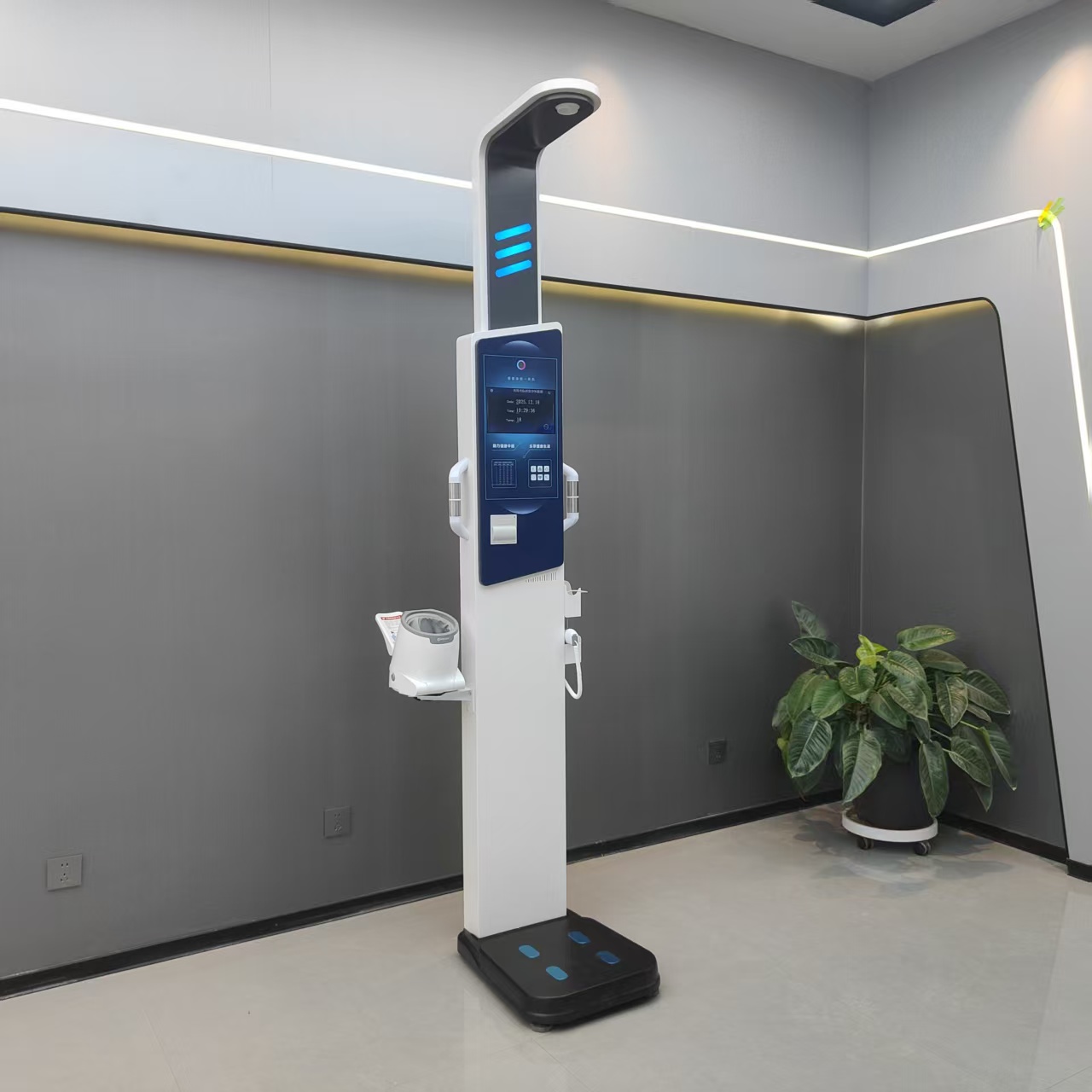

HW-V9 Body composition analyzer

Product introduction

Measurement items: height, weight, BMI, body composition (17 items), blood pressure, heart rate, blood oxygen, body temperature
Expanded functions: rapid ECG, color blindness, vision, blood sugar, uric acid, etc.
Height range: 0-210CM
Weight range: 1-300KG
Product advantages:
10.2-inch high-definition touchable large screen (19-inch optional)
Colorful light strips are embedded at the top, which is beautiful and elegant.
The chassis is stable, rounded and without corners.
Arm tube electronic blood pressure monitor, rotatable left and right, height adjustable

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer case

product description

HW-V9 intelligent physical examination all-in-one machine is an all-round integrated health examination equipment based on the national public health service system. Its own data management system can quickly collect data information, conduct data analysis through cloud computing, and provide basic data for health guidance. Realize intelligent, integrated and precise management of chronic diseases.

Standard features

Expand functions

Features

STEP ONE

Operation mode

The 10.2-inch high-definition large touch screen plays health education knowledge; the touch screen displays operating steps and measurement results.

learn more
STEP TWO

Appearance design

The colorful light strip is embedded at the top, which is beautiful and elegant.

learn more
STEP THREE

adjustable blood pressure monitor

The arm-type electronic sphygmomanometer is rotatable left and right and adjustable up and down, making it convenient to measure blood pressure at different positions.

learn more

STEP ONE

The chassis is strong and durable

The chassis is stable, rounded and without edges.

learn more
STEP TWO

Intelligent Internet

The measurement data is provided to be bound to the WeChat public account. Scan the QR code of the measurement results with your mobile phone. The measurement results are sent to your mobile phone. Each physical examination report is recorded, forming a health curve chart and providing health advice for easy record keeping and comparison.

learn more
STEP THREE

Printing method

Built-in thermal printer, high-speed thermal printing of measurement reports, automatic paper cutting, easy paper replacement, easy operation, convenient and practical.

learn more

Function parameters

Product model	HW-V9 Intelligent Physical Examination Machine
Ultrasonic height detector	High-precision height probe measures height from 0-210cm with an accuracy of 0.1cm
High precision pressure sensor	High-precision balance beam pressure sensor weighing 1-300kg with an accuracy of 0.1kg
Fully automatic blood pressure monitor	Medical pulse wave sphygmomanometer, oscillometric method, 17-42cm large arm tube, accuracy within ±3mmHg
Heart rate measurement range	40-180 times/minute
Body composition testing	Human body resistance method measures 17 kinds of health information such as fat, basal metabolism, water, muscle, protein, lean body mass, bone salt, intracellular and intracellular fluids, etc.
blood oxygen test	Finger-clip blood oxygen detection is an important physiological index of respiratory circulation. The measurement accuracy is ±2% and the resolution is 1%.
Body temperature detection	Non-contact precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ measuring distance 1-5c
Operation mode	10.2-inch high-definition touch operation screen, voice and video guidance for operation
data transfer	RS-232 serial port upload to computer, optional Bluetooth or wireless transmission to mobile phone
Supply voltage	AC110-240V, 50HZ
Overall dimensions	MAX:5860235CM
Net weight of the whole machine	35KG
average power consumption	≤45W
working environment	Temperature: -10℃-+40℃, humidity: ≤85%

Scope of application

health cabin

Through the health cabins of community and township health centers, we comprehensively carry out health education, health testing, health assessment, and health guidance reports to help residents do health prevention work and assist people with chronic diseases to do health follow-up.
Nursing home

Help organizations establish, update, and collect personnel health records. Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent in advance and reduce risks.
school organization

With the improvement of health awareness, more and more schools are beginning to pay attention to students' physical health and incorporate health examinations into their daily management systems.
medical institution

Help primary medical institutions build Internet + intelligent chronic disease management centers at the lowest cost, and provide efficient tools for primary medical and health institutions.
business unit

Help organizations establish, update, and collect personnel health records. Statistics on the number and proportion of various chronic patients are beneficial to the management of the institution, personnel allocation and other work, to prevent in advance and reduce risks.
Physical examination center

The services provided by the physical examination center are more comprehensive and detailed, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with all-round health. Serve.
