HW-600B ultrasonic height weight blood pressure measuring instrument

HW-600B ultrasonic height weight blood pressure measuring instrument

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: height, weight, BMI, body composition, blood pressure
Product Advantages:
Ultrasonic contactless alveolar measurement
Fully automatic voice broadcast
High precision precision sensor
Highlight LED display
High-speed thermal printing, automatic paper cutting
Bring your own small wheels for easy movement

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

600B

Product Introduction

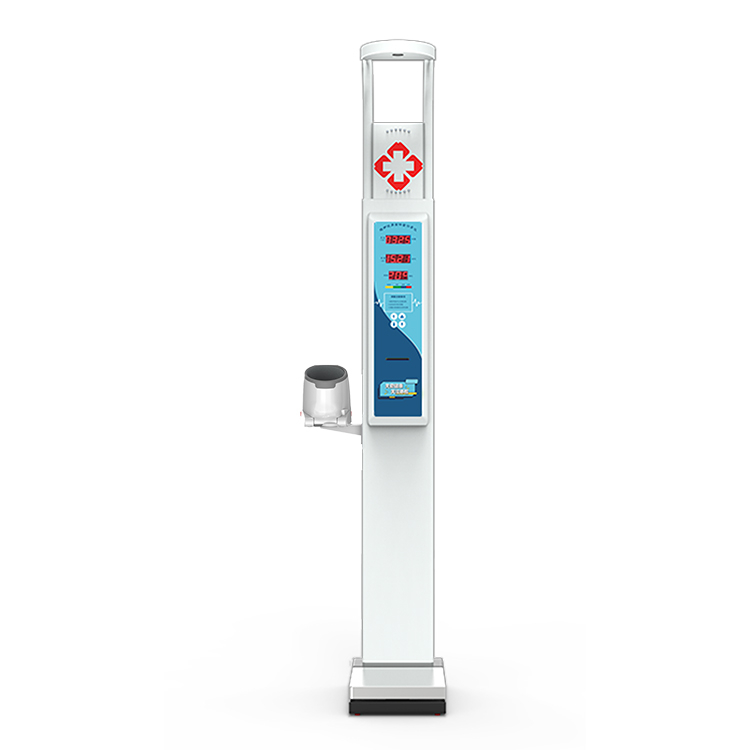

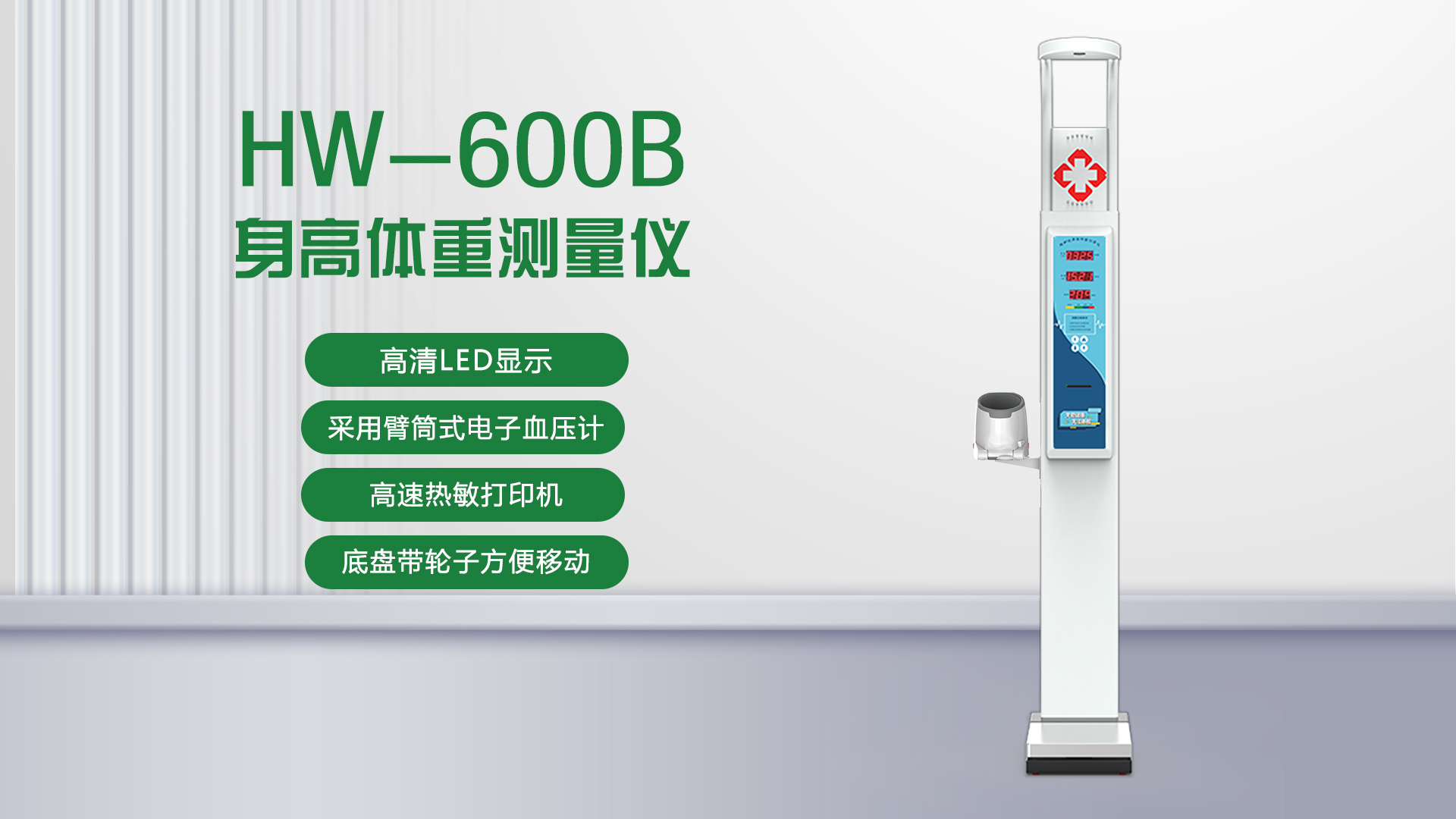

The HW-600B ultrasonic Height and Weight Scale uses a large LED LCD display with convenient reading, and uses original ultrasonic detectors and high-precision weight measuring sensors. The Seiko thermal printer and Omron electronic blood pressure monitor imported from Japan are controlled by microcomputer to automatically measure length, weight, blood pressure, and heart rate, synchronous digital display, clear voice broadcast and high-speed thermal printing measurement results.

Testing items

Features

STEP ONE

Appearance design

Body light design, exquisite and elegant; the case is sturdy and beautiful

learn more
STEP TWO

Fully automatic voice broadcast

The whole process guided measurement is provided, the voice prompts are loud, the system clearly guides the voice and automatically broadcasts the measurement results.

learn more
STEP THREE

Display method

Highlight LED digital display is not affected by external light and viewing angle, and the standby state displays date, time, and indoor temperature.

learn more

STEP ONE

Blood pressure measurement

Omron arm blood pressure meter, intelligent pressurization, core biosensing technology, ensures accurate measurement of high pressure, low pressure value, heart rate, and print tickets

learn more
STEP TWO

Data transmission

The standard RS232 communication interface can connect to the unit's physical examination system, upload measurement data, stable transmission data performance, and provide free serial port protocol.

learn more
STEP THREE

Built-in thermal printer

This machine adopts a high-speed thermal printer, automatically printing, automatic paper cutting, printing content: date, time, height, weight, BMI standard weight range, normal weight range

learn more

Functional parameters

Product model	Ｈｷ－600B ultrasonic height weight blood pressure measuring instrument
Altitude measurement devices	High-precision ultrasonic detector
Weight measuring sensor	High-precision balanced beam pressure sensor
ＢＭＩNormal Range	18.5-24
Blood pressure measurement range	0-299mmHg (0-39.9kpa)
Pulse measurement range	40-180 times/min
Display method	LED digital display
Displayed during measurement	LEDs show height, weight, BMI, and indicate thin, normal, fat, and obese
Measurement speed	480 times/hour
Data transmission	RS-232 standard interface
Ambient temperature	-10C ~ +40℃
Power supply voltage	100-240V, 50Hz
power	Power in standby: ≤8W Power in measurement: ≤12W
Measurement results	High-speed thermal printing, automatic paper cutting
External dimensions	1043435CM 725440CM
Product weight	Net weight 37kg gross weight 46kg

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
