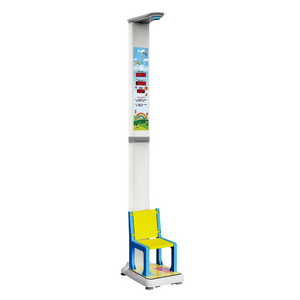

HW-701E childrenHeight and Weight Scale

Product introduction

Measurement items: height, weight, BMI, sitting
Display: LED digital tube display
Height range: 0-150cm
Weight range: 1-200kg
Product advantages: One-click switching of height and sitting height, built-in child seat, intelligent voice broadcast

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer case

Product introduction

HW-701E children's height and weight scale is specially designed for childrenDesigned health monitoring equipment, it can fully automatically measure the height, weight, body mass index (BMI) and sitting height of children aged 2-7 years old; synchronous measurement data will be broadcast with clear voice; high-brightness LED digital display, optional printing of measurement reports,It is mainly used to measure health indicators such as children's height, weight and sitting height. The appearance design of the HW-701E children's height and weight scale adopts children's favorite cartoon patterns and bright colors, making children feel happy and friendly when using it. The scale surface is spacious and there is enough space in the standing area to ensure that children can stand comfortably when measuring without feeling crowded or uncomfortable.

Standard features

Features

STEP ONE

Bring your own child seat

Comes with child seat, safe and comfortable

learn more
STEP TWO

Fully automatic voice broadcast

System intelligent voice broadcast, convenient and fast

learn more
STEP THREE

Optional data transfer

The standard RS232 communication interface can be connected to various HIS, LIS, public health, health examination system and other unit platforms, and the serial port protocol is provided free of charge. The measurement data upload performance is stable and supports multiple transmission methods such as WiFi and Bluetooth.

learn more

STEP ONE

Medical probe height measurement

Medical grade ultrasonic matrix ranging, automatic temperature compensation, not affected by the environment

learn more
STEP TWO

digital display

LED digital tube display, showing time and date in standby
Loud, accurate measurement

learn more
STEP THREE

Switch measurement values with one click

Switch between height and sitting height measurement with one click, convenient and practical

learn more

Function parameters

Product model	HW-701E childrenHeight and Weight Scale
Height measurement range	0-150cm graduation value 0.1cm
Sitting height measurement range	20－150cm Graduation value 0.1cm
Weight measurement range	1-200kg Graduation value 0.01kg
Accuracy	Height ≤±0.1cm; weight: ≤±0.1kg;
Display mode	LED digital tube display
standby display	In standby mode, the date, time and indoor ambient temperature are displayed and are not affected by external light and viewing angle.
Supply voltage	100V-240V, 50-60HZ DC (battery): 12V/2A
Power consumption	≤10W
working environment	Ambient temperature: -10℃～+40℃
ambient humidity	<85%
Measurement speed	≥480 times/hour
Overall machine weight	20KG

Scope of application

maternity hospital

The application of infant and child precision physical examination instruments in maternity hospitals can not only improve the quality and efficiency of medical services, but also enhance the hospital's diagnostic and treatment level and professional image. At the same time, through comprehensive testing of newborns, doctors can better understand the health status of newborns, provide parents with personalized health guidance and suggestions, and help promote the healthy growth of newborns.
shopping mall nursery

Precision infant physical examination instruments are widely used in shopping mall nurseries. They can conduct baby health examinations while shopping, allowing parents to better understand their babies' growth and development. Enhance the good experience of the mall and improve the quality of the mall.
Physical examination center

The application of precision physical examination instruments for infants and young children in physical examination centers has significant advantages. Its high precision and sensitivity can accurately measure various physiological indicators of infants and young children, provide doctors with detailed data support, and help accurately assess the growth and development status of infants and young children. . Doctors and parents can better monitor the growth of infants and young children, detect problems in time and take effective intervention measures, providing a strong guarantee for the healthy growth of infants and young children.
school organization

In school institutions, children's scales are widely used. Schools can also analyze the data of children's height and weight scales to understand the overall growth and development of students, provide reference for school health care work and education and teaching, and promote students' growth and development. Provide a strong guarantee for healthy physical and mental development.
Infant bathing center

The precision physical examination instrument for infants and young children can accurately measure the weight, height, and other growth and development indicators of infants and young children, help bathing center staff understand the growth and development status of infants and young children in a timely manner, and provide parents with scientific parenting suggestions. It not only improves the quality of bathing services, but also provides a strong guarantee for the healthy growth of infants and young children.
