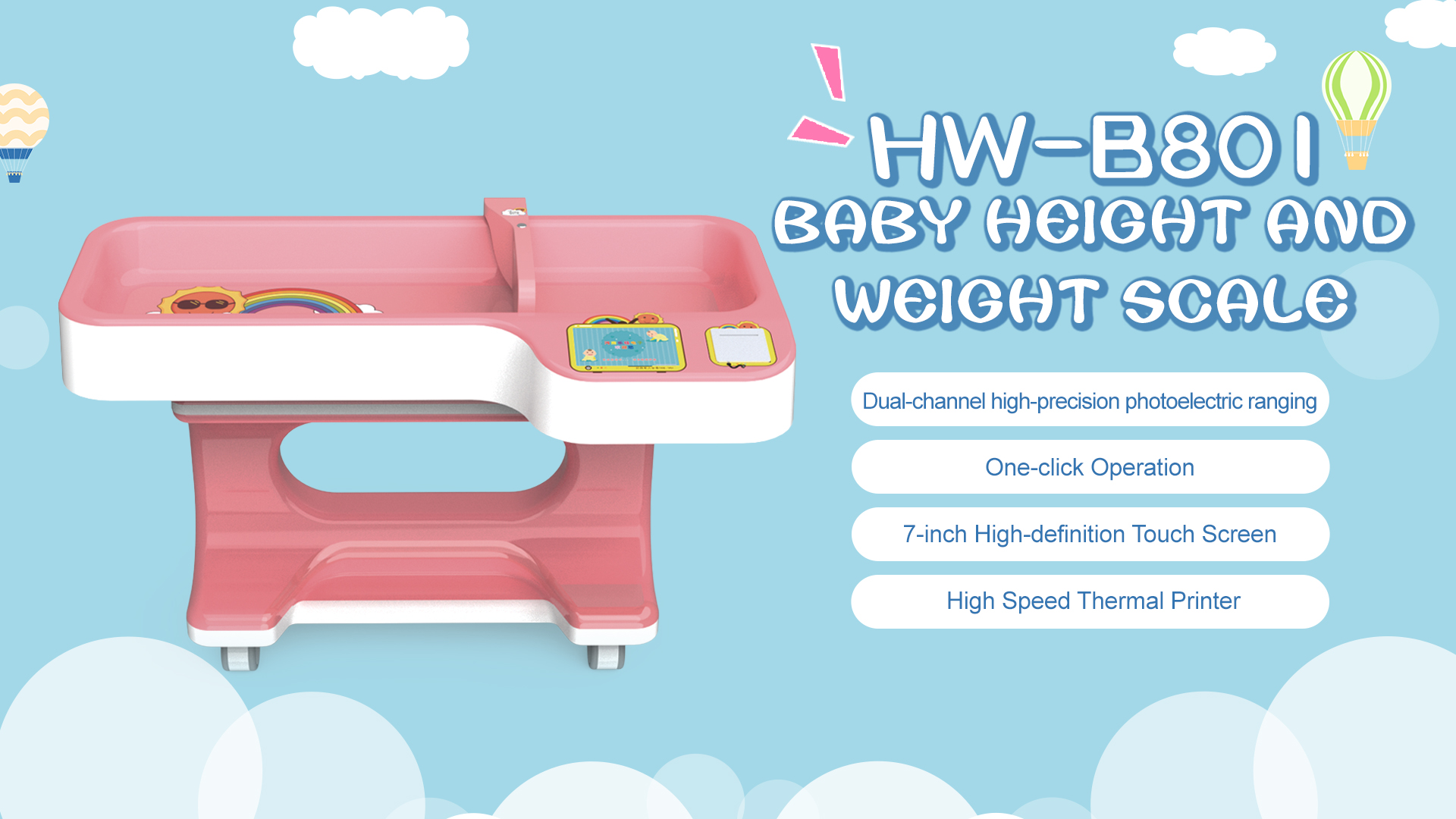

HW-B801 Baby scale

Product introduction

Detection functions: height, sitting height, weight, 7-inch high-definition touch screen, memory function, dual-channel height measurement, low power consumption mode, multiple transmission interfaces, thermal printing
Height range: 35-110cm
Weight range: 0.05-60kg
Display mode: Display date, time, day of the week, temperature, power supply mode, and battery capacity during standby, and clearly display measurement results during measurement.

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer case

product description

HW-B801 infant and young child precision physical examination instrument is a physical examination equipment specially designed for infants and young children aged 0-3. It can accurately measure the weight, height, sitting height, nutritional evaluation and other indicators of infants and young children. The equipment design is user-friendly and the operation is The interface is intuitive and easy to understand, and medical staff can easily master the operation method. The device supports data upload and cloud storage, making it convenient for medical staff to view and manage the physical examination data of infants and young children at any time. It is suitable for all types of medical institutions and infant health care institutions, and meets the needs of different age groups. Physical examination needs of infants and young children.

Standard features

Features

STEP ONE

Humanized widening design

Ergonomic design, round, skin-friendly, smooth, safe to use, giving baby a comfortable experience.

learn more
STEP TWO

7-inch high-definition capacitive touch screen operation

The unique interface design is simple and elegant, allowing staff to complete physical examinations quickly and efficiently, and their vision is not affected by external light and viewing angles.

learn more
STEP THREE

Equipped with infant physical development evaluation system

Evaluation standards: WHO standards, nine Chinese cities standards.

learn more

STEP ONE

Baby scale complete machine ABS engineering environmentally friendly plastic molding

The surface is soft and skin-friendly, strong and durable, and cost-effective; it is made of non-metallic material, no welding, no spray painting, no fading, and no harm to the baby's skin.

learn more
STEP TWO

One-touch measurement operation

Road measurement channel, emergency situations can be solved with one click, and measurement is guaranteed. It has a low energy consumption mode, which automatically reduces power consumption when it is vacant, saving energy and electricity.

learn more
STEP THREE

Thermal printing of measurement results

Thermal printing measurement results, customers can modify the unit name, phone number and other information themselves

learn more

Function parameter

Product number	HW-B801 Precision Physical Examination Instrument for Infants and Young Children
Height measurement method	Using dual-channel high-precision photoelectric ranging sensors, the measurement accuracy is not affected by the external environment
Height measurement range	35-110cm, graduation value 0.1cm
Weight measurement method	Using AVIC's high-precision balance beam pressure sensor for weighing, the measurement is accurate and fast
Weight measurement range	0.05-60kg, the graduation value is adjustable at 10g, 20g, 50g or 100g
Display method	Displays date, time, day of the week, temperature, power supply mode, and battery capacity during standby. Measurement results are clearly displayed during measurement
Evaluation method	Using WHO evaluation and nine Chinese city evaluations
Print	Thermal printing measurement results, customers can modify the unit name, phone number and other information themselves
data storage	50,000 pieces of measurement data are stored for easy query of historical records, and the data can be exported
average power	10W
Voice broadcast	Clear voice broadcast
data transmission	Standard RS232 interface, optional Bluetooth or WIFI transmission
Body material	ABS engineering plastics
physical dimension	125×65×25cm
net weight	27kg

Scope of application

maternity hospital

The application of precision physical examination instruments for infants and young children in maternity hospitals can not only improve the quality and efficiency of medical services, but also enhance the hospital's diagnostic and treatment level and professional image. At the same time, through comprehensive testing of newborns, doctors can better understand the health status of newborns, provide parents with personalized health guidance and suggestions, and help promote the healthy growth of newborns.
Shopping mall nursery

Precision infant physical examination instruments are widely used in shopping mall nurseries. They can conduct baby health examinations while shopping, allowing parents to better understand their babies' growth and development. Enhance the good experience of the mall and improve the quality of the mall.
Physical examination center

The application of precision physical examination instruments for infants and young children in physical examination centers has significant advantages. Its high precision and sensitivity can accurately measure various physiological indicators of infants and young children, provide doctors with detailed data support, and help accurately assess the growth and development status of infants and young children. . Doctors and parents can better monitor the growth of infants and young children, detect problems in time and take effective intervention measures, providing a strong guarantee for the healthy growth of infants and young children.
school organization

In school institutions, children's scales are widely used. Schools can also analyze the data of children's height and weight scales to understand the growth and development of overall students, provide reference for school health care work and education and teaching, and promote students' growth and development. Provide a strong guarantee for healthy physical and mental development.
Infant bathing center

The precision physical examination instrument for infants and young children can accurately measure the weight, height, and other growth and development indicators of infants and young children, help bathing center staff understand the growth and development status of infants and young children in a timely manner, and provide parents with scientific parenting suggestions. It not only improves the quality of bathing services, but also provides a strong guarantee for the healthy growth of infants and young children.
