Product Introduction

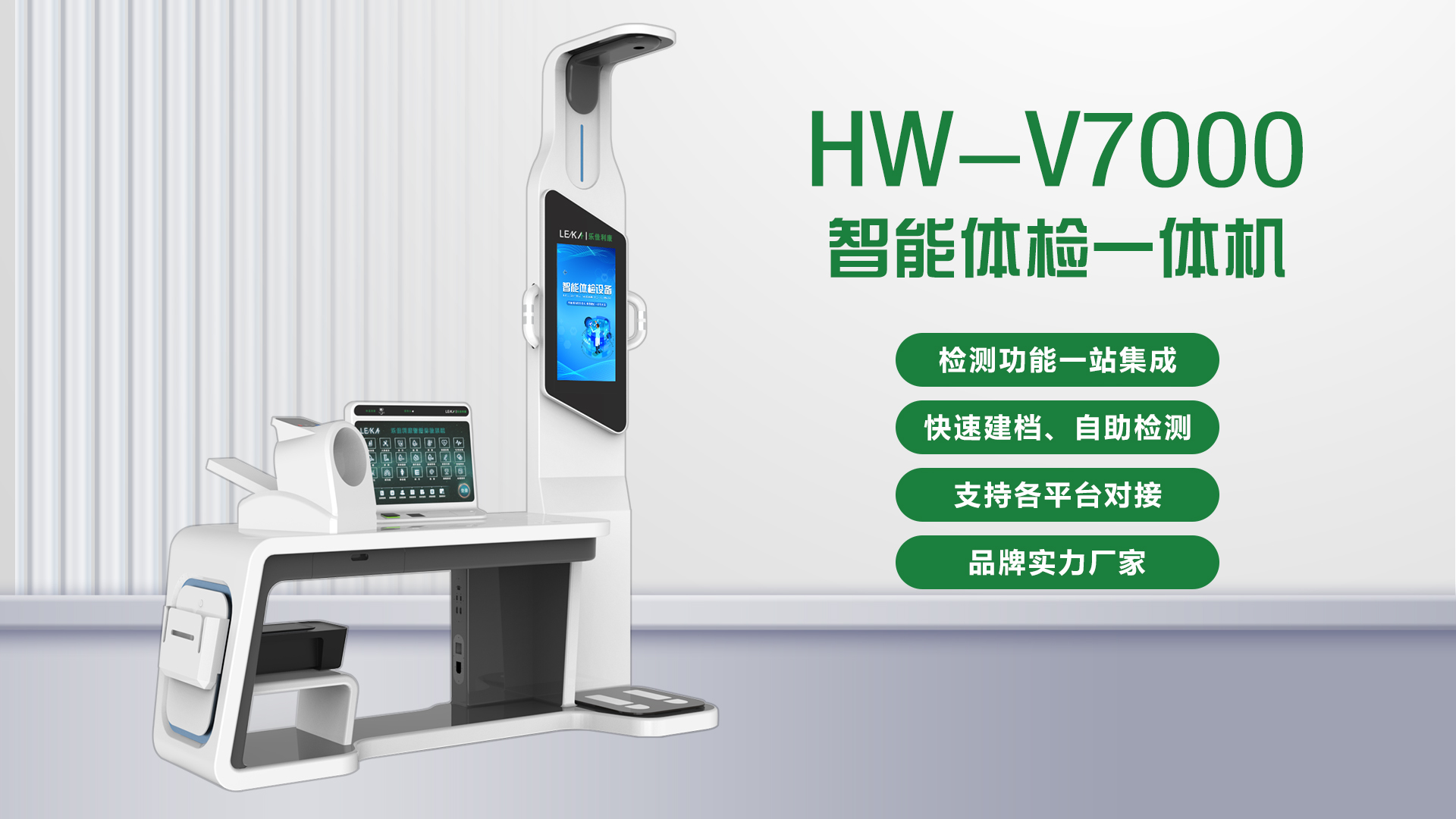

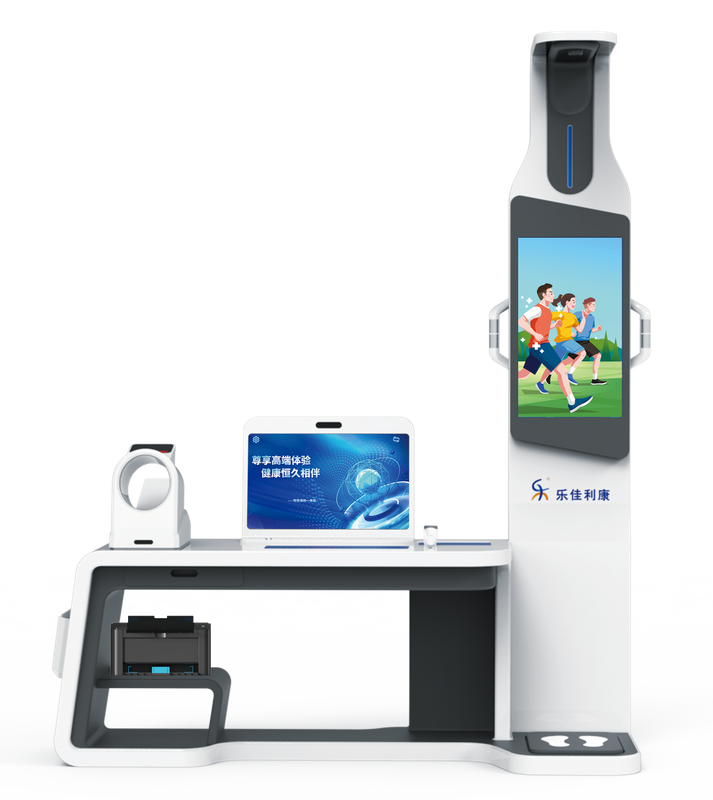

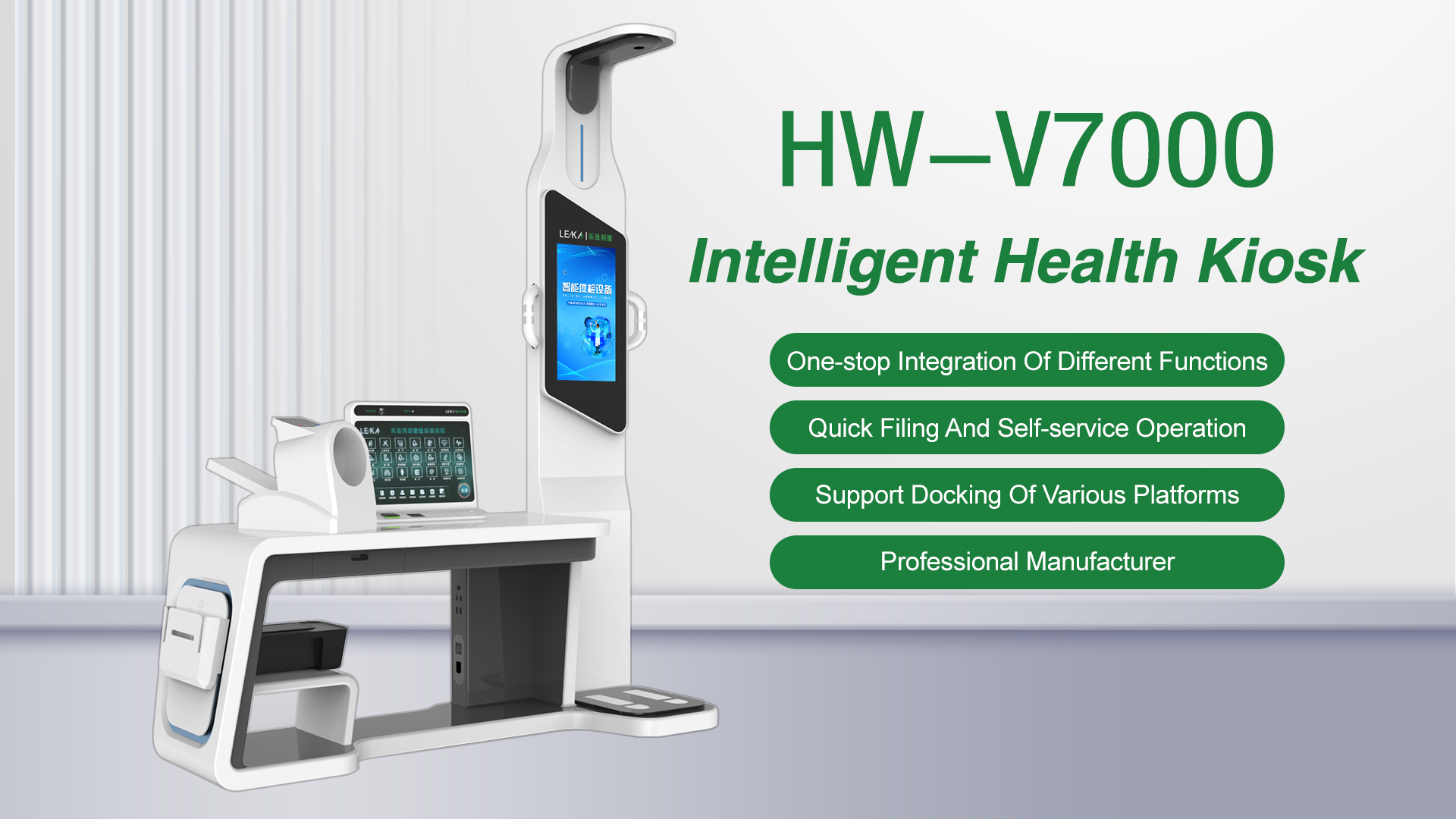

HW-V7000Intelligent Health Check-up Kiosk is an advanced device integrating multiple health detection functions. It adopts a number of modern medical technologies to provide users with comprehensive and accurate health check services. It is a self-service one-stop, all-round professional health examination equipment independently developed based on the national public health service system. Its own can only collect information about multiple vital signs and parameters of the human body, realize intelligent file building and intelligent data collection, perform data analysis through cloud computing, conduct health assessment, and realize intelligent, integrated and accurate chronic disease management.
Functional parameters
Project configuration
| Product model | ＨＷ－V7000Intelligent Health Check-up Kiosk |
| Standard functions | Measure height, weight, body shape index BMI, human body composition, high pressure, low pressure, heart rate, blood oxygen saturation, body temperature, electrocardiogram, blood sugar, uric acid, hemoglobin, and blood lipids, urine analysis (four items), lung function, waist-to-hip ratio, Chinese medicine identification, vision, color blindness, psychological assessment |
| Extended features | Rapid electrocardiogram, bone density, arteriosclerosis, alcohol testing, etc. |
Auxiliary functions and system configuration

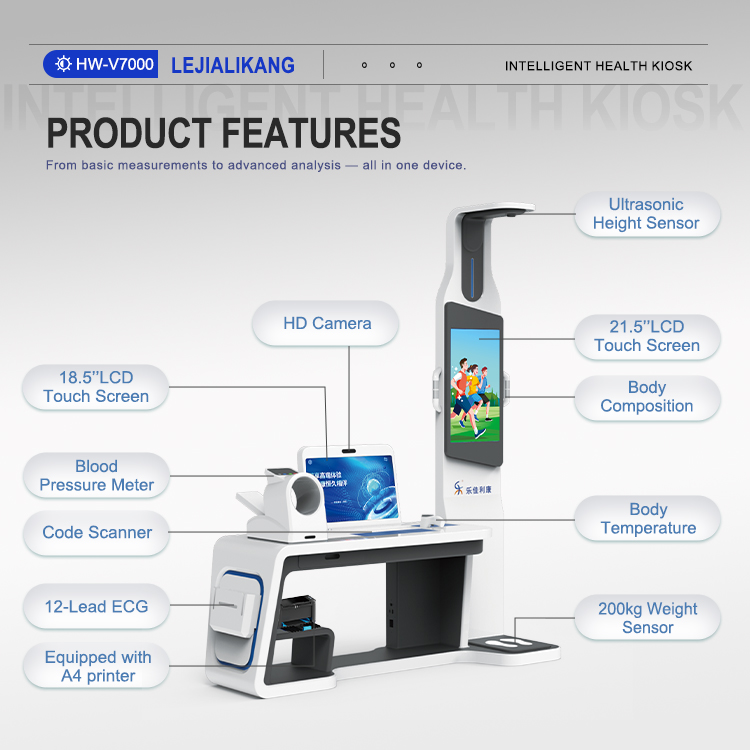

| Screen configuration | Dual screen collaborative work: ≥21.5 inch high-definition LCD screen supports the release of education videos and pictures, and supports infrared remote control operation; ≥18.5 inch main operation touch screen, can personalize measurement items according to needs |
Fully automatic blood pressure meter | Medical pulse wave blood pressure meter, oscillometric measurement method, 17-42cm large boom, accuracy within ±3mmHg |

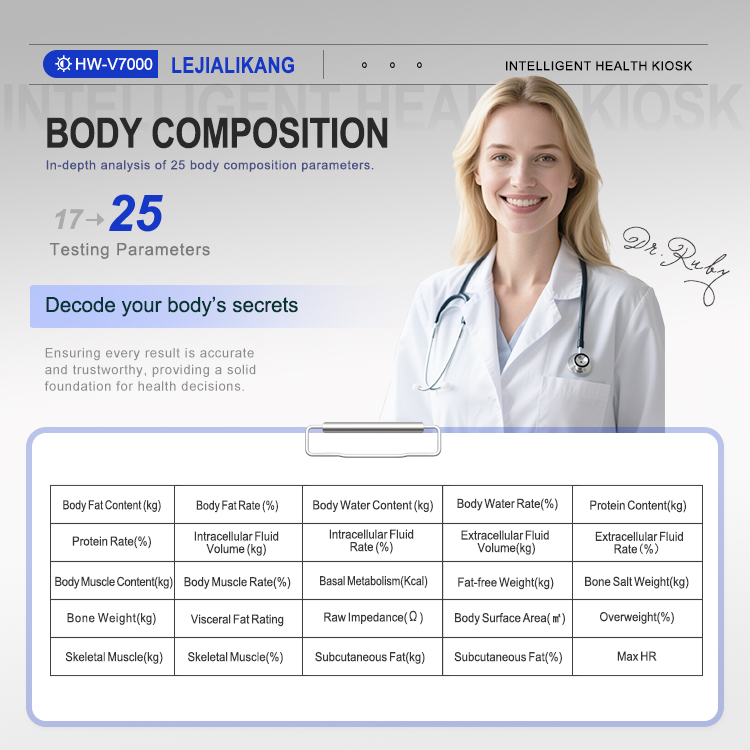

Human body composition testing | The human body resistance method measures fat, basal metabolism, moisture, muscle, protein, fat removal weight, bone salt, internal and external fluids, etc., and can measure it. It is easy to operate and easy to use. |
Blood oxygen test | Finger-type blood oxygen detection is an important physiological index of respiratory cycle, measuring accuracy ±2% resolution 1% |
Temperature test | Contactless precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ distance 1-5cm |
Rapid ECG test | Hand-held rapid measurement of electrocardiogram, the measured electrocardiogram is standard lead I |

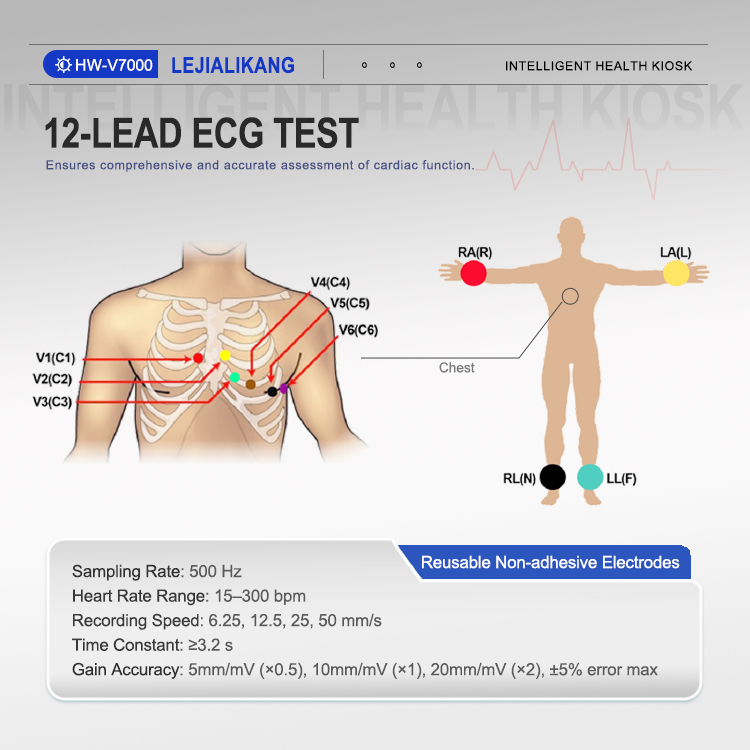

12-lead electrocardiogram | 500Hz ECG signal sampling rate, standard twelve leads, three-speed gain, error ≤±5% |
Blood sugar, uric acid, cholesterol | Standard resistance bar test, fingertip microvascular whole blood, unit: mmol/L |
Hemoglobin detection | Test content: Hemoglobin and erythrocytic backlog |
Four tests for blood lipids | Total cholesterol, triglycerides, high-density lipoprotein, low-density lipoprotein |
Urine analysis | Test items: twelve items including leukocytes, nitrites, proteins, pH values, vitamin C, microalbumin, etc. |
Physical identification of traditional Chinese medicine | The nine major physiques of traditional Chinese medicine can be automatically judged and analyzed, and the two systems of 33 questions and 66 questions can be selected. |
Waist-hip ratio | Test items: Automatic tape measure to measure waist circumference and hip circumference, and calculate waist-to-hip ratio |
Lung function | Test items: peak exhalation flow, exhalation volume in one second, and vigorous lung capacity |
arteriosclerosis | Detection of blood flow velocity pulse index and arterial pressure volume index |
Login method | A. Login to ID card b. Face recognition C. Scan the code to log in D. Manual login E. Login to WeChat |
Intelligent one-step file creation | Residents swipe their ID cards, and the system quickly collects information on the person’s name, gender, date of birth, address, etc., and automatically creates personal health records. |
Psychological assessment | 15 evaluation methods |
Vision color blindness | Wireless infrared remote control operation screen to measure vision color blindness |
Operation method | The industrial control host uses dual-screen collaborative work to complete the physical examination in an intelligent one-stop |
Power supply voltage | AC: 110V-240V, 50Hz; DC: 12V±10% |
Average power consumption | ≤85W |
Working environment | Temperature: -10℃-+40℃, humidity: ≤85% |
Product weight | ≤200kg |
External dimensions | ≤MAX:185(L)×60(W)×235(H)cm |

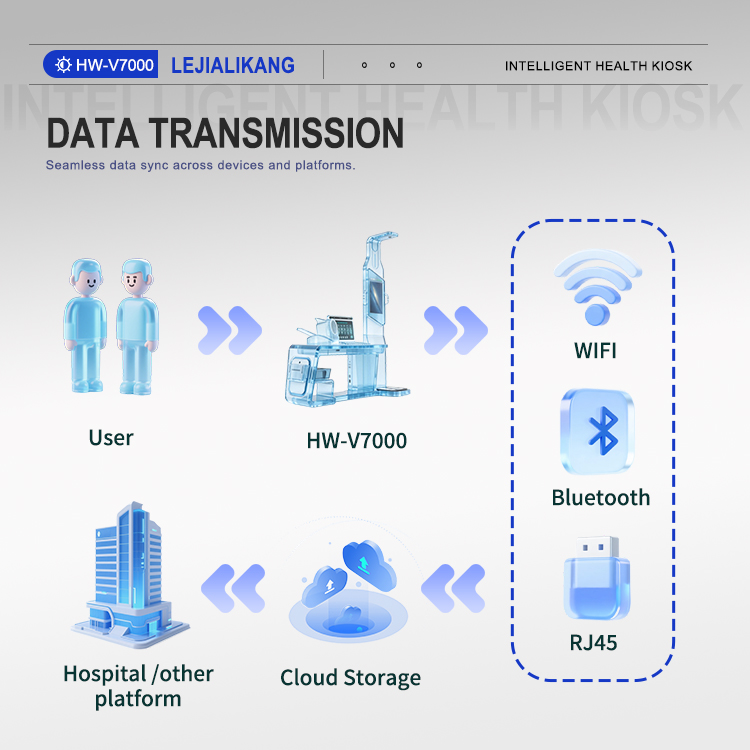

Cloud platform data transmission
1. Intelligent file creation 2. Health information collection 3. Big data statistical analysis 4. Health assessment 5. Health guidance
