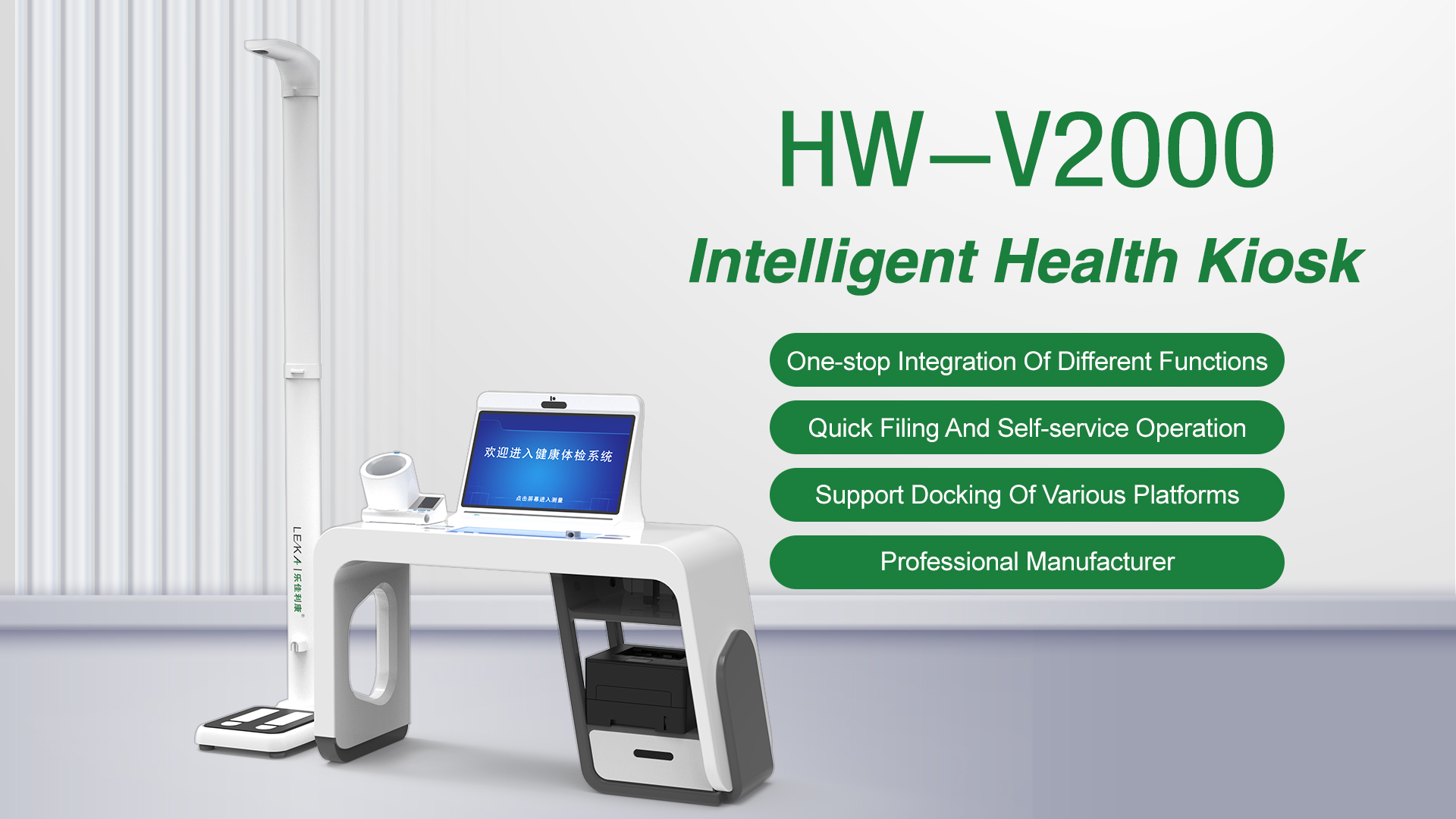

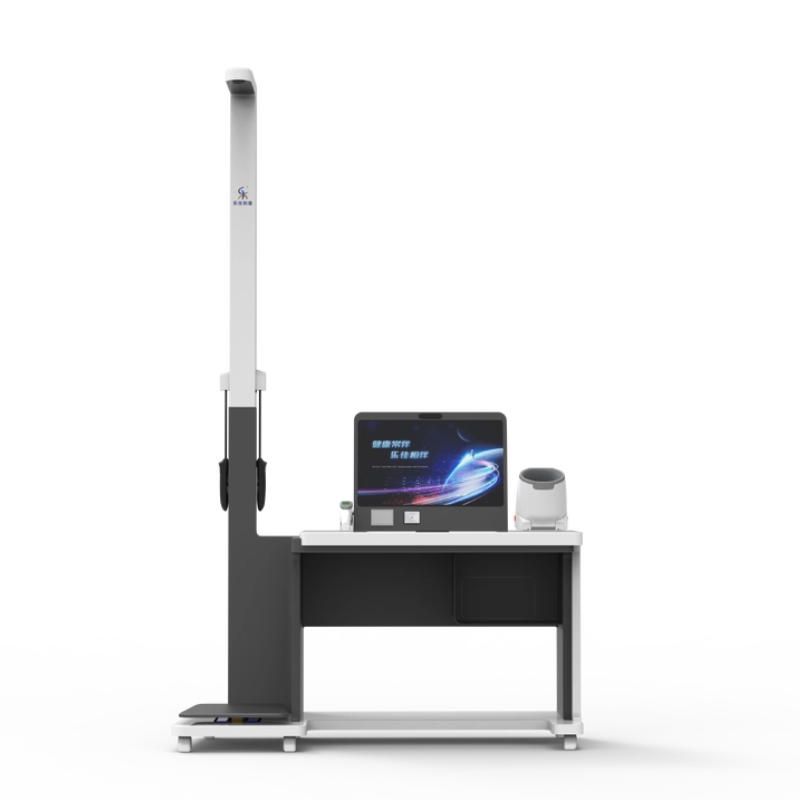

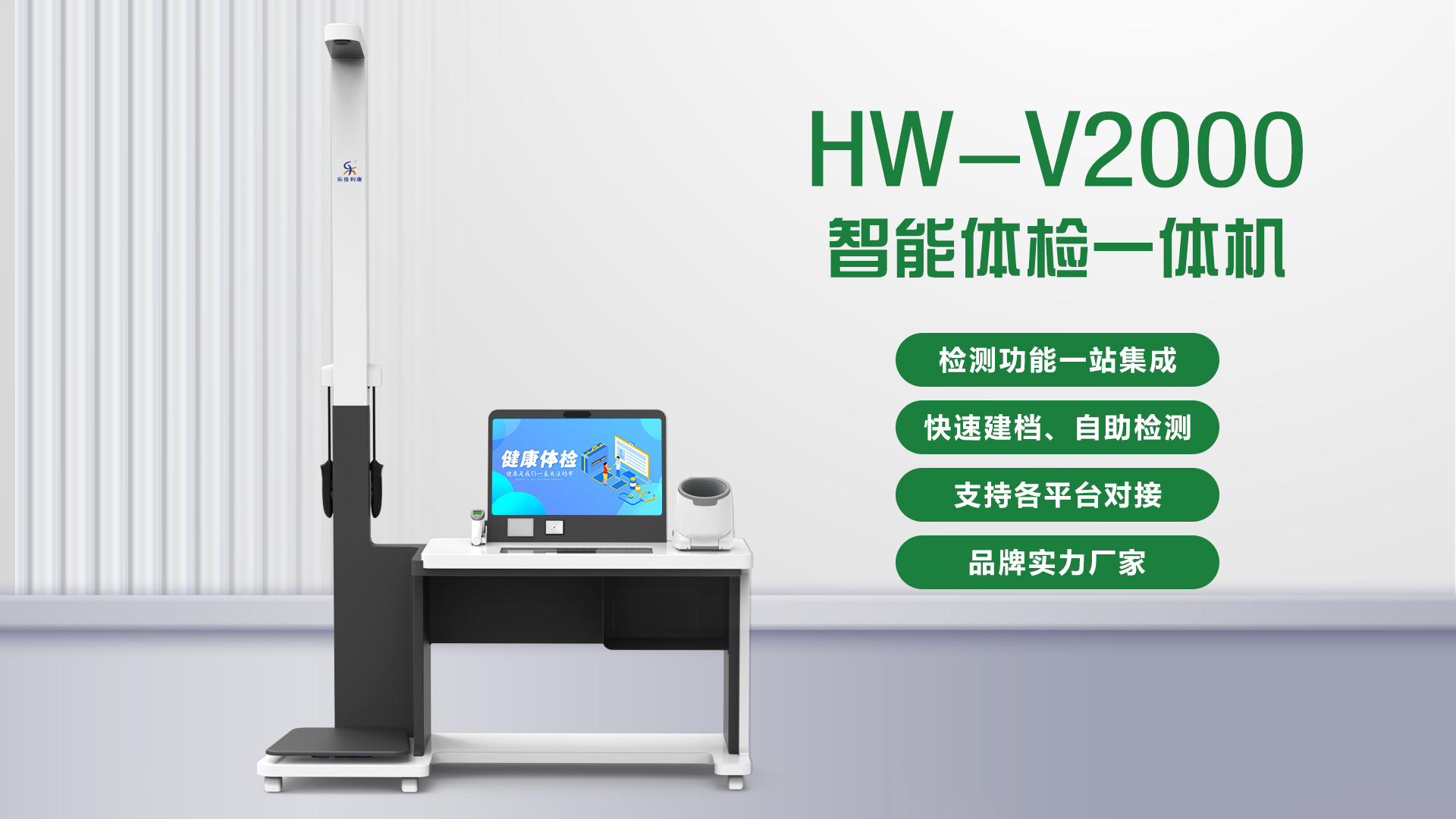

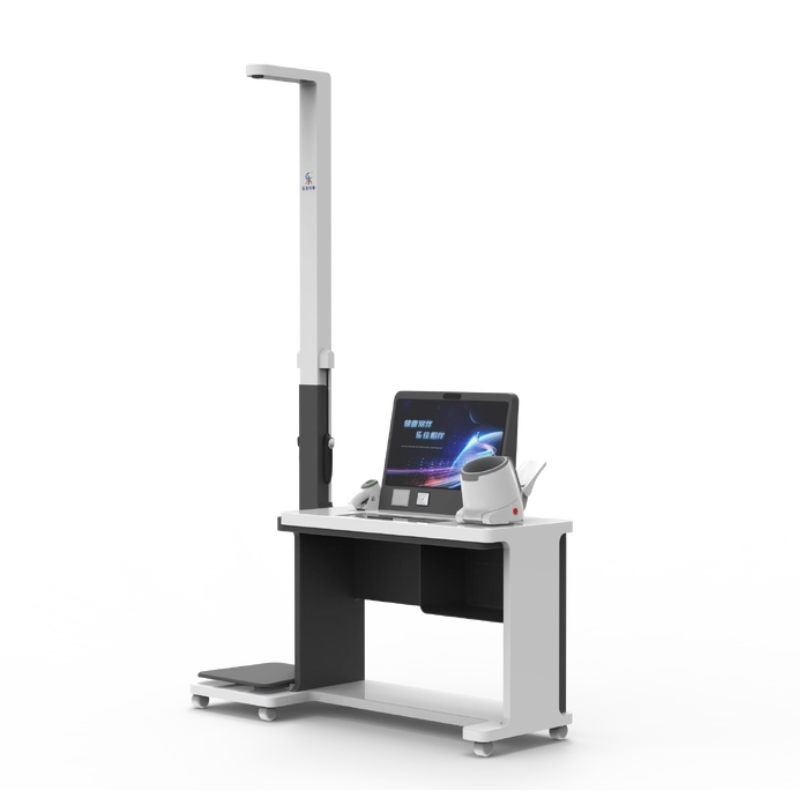

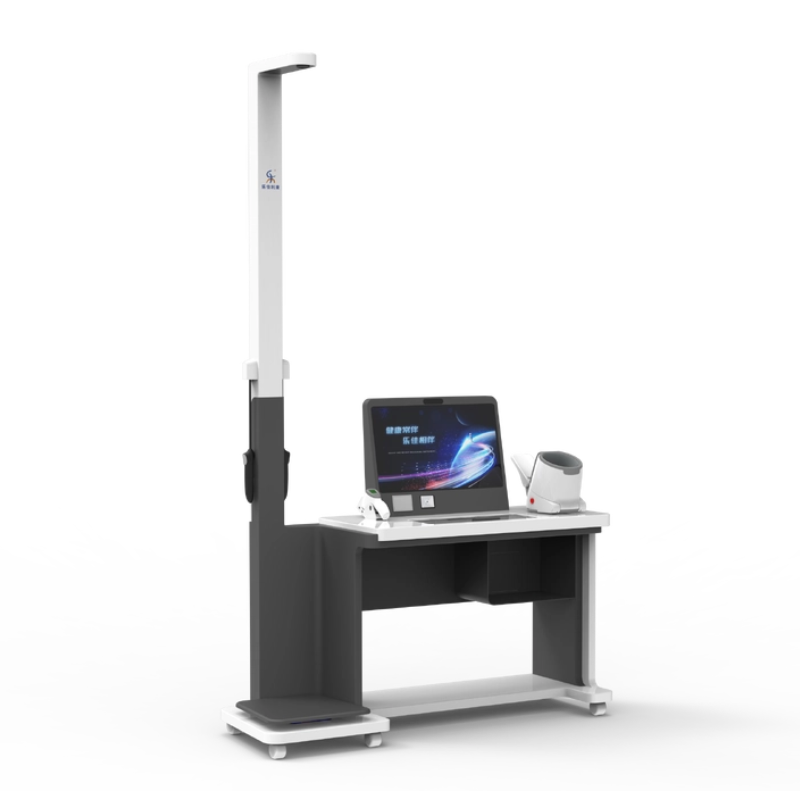

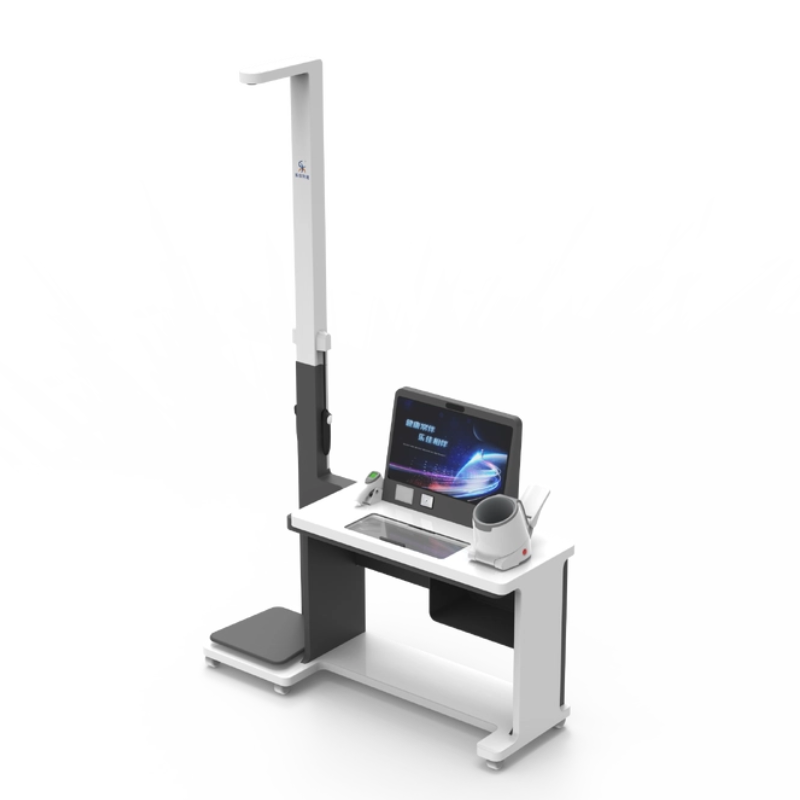

HW-V2000Intelligent Health Check-up Kiosk

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: height, weight, BMI, human body composition (17 items), blood pressure, heart rate, blood oxygen, body temperature, etc. 30+ health indicators
Expand functions: rapid electrocardiogram, blood sugar, uric acid, cholesterol, vision, color blindness, Chinese medicine identification, psychological assessment, etc.
Height range: 0-210CM
Weight range: 1-200KG
Product Advantages:
Various identification methods, such as ID card, facial recognition, micro login, etc.
21.5-inch high-definition LCD display touch operation
Independent Height and Weight Scale, foldable, chassis with wheels for easy movement
Intelligent Internet: measurement data supports uploading of mobile phones, hospital system platforms, etc.
Strong human-computer interaction capabilities, 3D robot animation + voice guidance operation
Six ways to obtain reports: monitor display, voice broadcast, paper report, mobile terminal, cloud platform, PDF electronic version

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

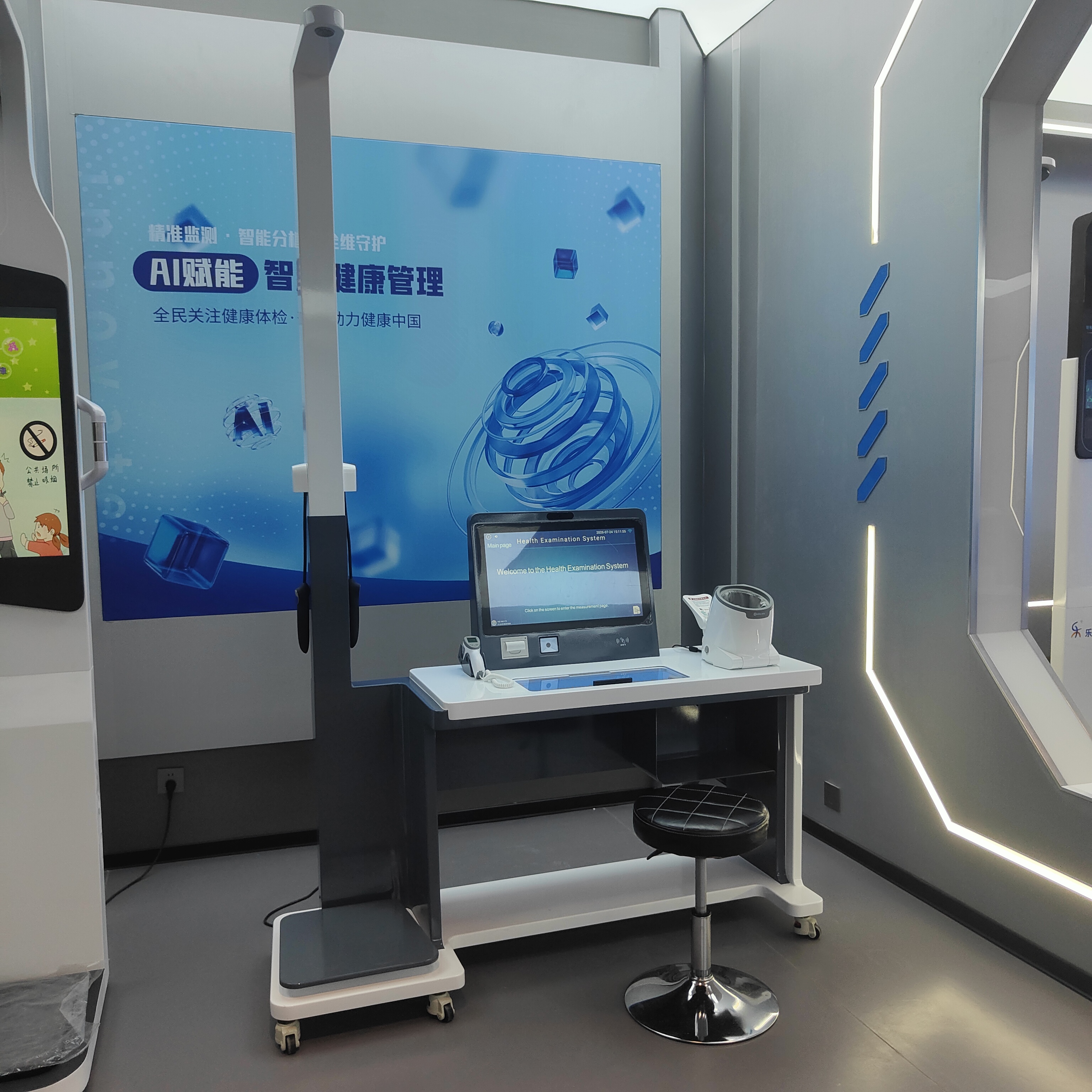

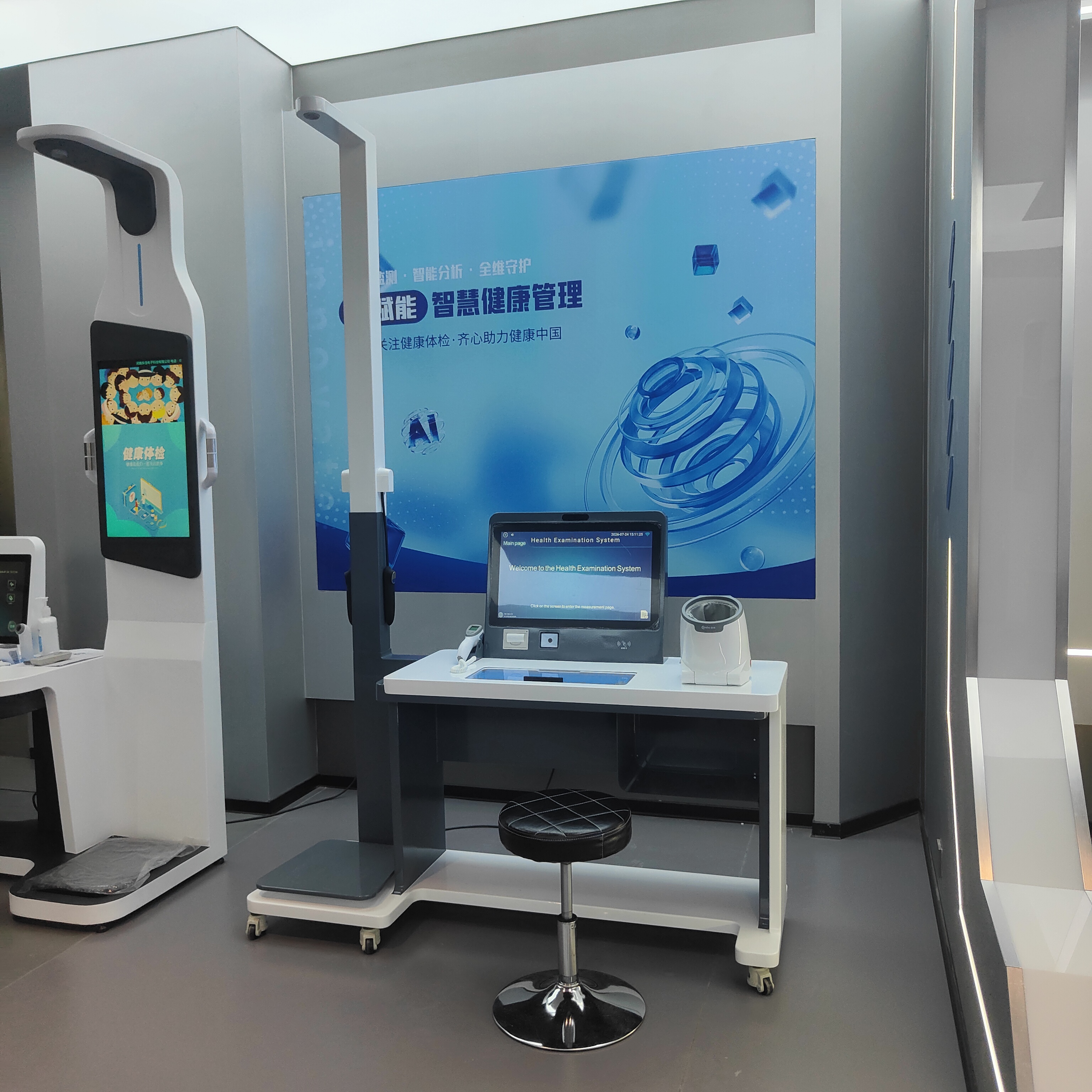

Customer Cases

V2000

Product Introduction

HW-V2000Intelligent Health Check-up Kiosk is a device that integrates multiple health detection functions. It can help users understand their physical condition comprehensively and quickly. This device uses advanced bioelectrical impedance analysis technology and combined with ergonomic design, it can provide a variety of accurate health testing data. Realize intelligent file building and intelligent data collection, data analysis through cloud computing, health assessment, and realize intelligent, integrated and accurate chronic disease management.

Standard functions

Expand functions

Features

STEP ONE

Various login methods are available

For example, ID card, facial recognition, WeChat login, etc., it supports swiping the ID card to enter measurement, extracting the tester's identity information, and automatically establishing a health file.

learn more
STEP TWO

Operation method

It adopts touch-based operation of 21.5-inch high-definition screen, and guides the detector to complete the measurement independently through real-time voice + 3D animation.

learn more
STEP THREE

Intelligent Internet

Provides binding of measurement data and WeChat official account. Residents scan the QR code of measurement results through their mobile phones, follow the user's official account, send physical examination reports to the mobile phone, and provide dietary exercise and health suggestions for easy recording and preservation. Convenient to the publicity of users' health knowledge and the communication of health policies.

learn more

STEP ONE

Powerful human-computer interaction capability intelligent interconnection

3D robot animation + voice guidance operation.

learn more
STEP TWO

Video pictures can be played in a loop in standby state

Users can change the promotional videos by themselves. Header to set the unit name.

learn more
STEP THREE

Five ways to obtain reports

1: Screen display detection report
2: Print paper inspection report
3: Scan the QR code on your mobile phone to get the physical examination report

4: This machine checks the physical examination report

5: Health Management Cloud Platform Query Report

learn more

Functional parameters

Product model	HW-V2000Intelligent Health Check-up Kiosk
Measurement items	Height, weight, BMI, human body composition, blood pressure, heart rate, blood oxygen, body temperature, Chinese medicine identification, 12 electrocardiogram/blood uric acid/vision color blindness three choices
Ultrasonic height and weight instrument	High-precision height probe measuring height 0-200cm accuracy 0.1cm high-precision pressure sensor weighing 1-200kg accuracy 0.1kg
Fully automatic blood pressure meter	Medical pulse wave blood pressure meter, oscillometric measurement method, 17-42cm large boom, accuracy within ±3mmHg
Human body composition testing	Human body resistance method to measure fat, basal metabolism, moisture, muscle, protein, fat removal weight, bone salt, internal and external fluids, etc.
Blood oxygen test	35%-100% (±2% normal state (75%), ±3% exercise or weak perfusion (50%-74%), below 50% undefined)
Temperature test	Contactless precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ distance 1-5cm
Rapid ECG test	Hand-held rapid measurement of electrocardiogram, the measured electrocardiogram is standard lead I
12-lead electrocardiogram	500Hz ECG signal sampling rate, standard twelve leads, three-speed gain, error ≤±5%
Blood sugar, uric acid, cholesterol	Standard resistance bar test, fingertip microvascular whole blood, unit: mmol/L
Physical identification of traditional Chinese medicine	The nine major physiques of traditional Chinese medicine can be automatically judged and analyzed, and the two systems of 33 questions and 66 questions can be selected.
Psychological assessment	8 evaluation methods
Operation method	19-inch true color high resolution display
Power supply voltage	AC: 110V-240V, 50Hz; DC: 12V±10%
Average power consumption	≤60W
Working environment	Temperature: -10℃-+40℃, humidity: ≤85%
Area	≤0.8m²
External dimensions	MAX: 120cmX50cmX117cm; 55cmX33cmX235cm
Expand functions	Can be selected with fast electrocardiogram, blood sugar, uric acid, cholesterol, vision, color blindness, Chinese medicine identification, and psychological assessment

Cloud platform data transmission

1. Intelligent file creation 2. Health information collection 3. Big data statistical analysis 4. Health assessment 5. Health guidance

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
