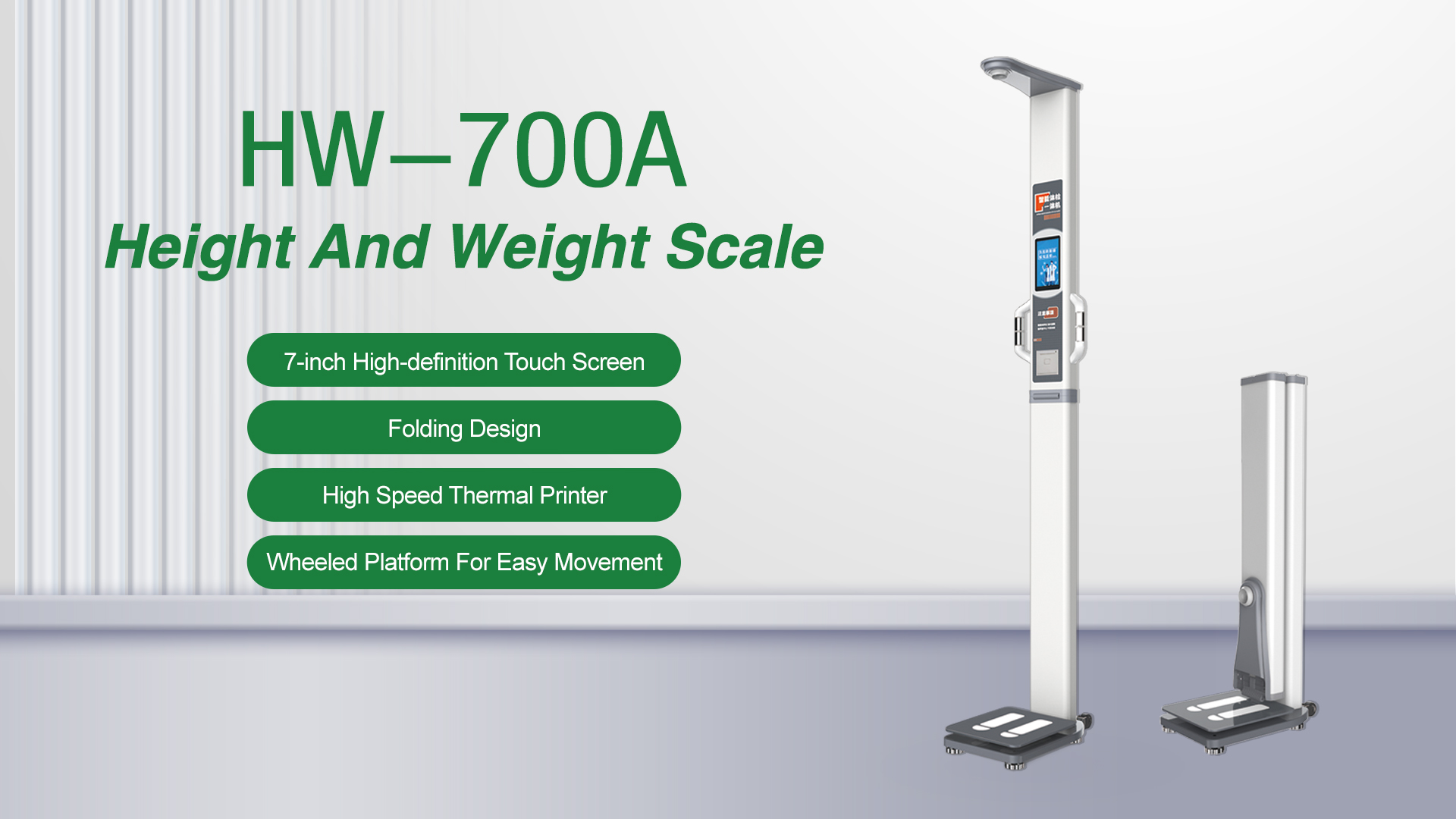

HW-700A Ultrasonic Height and Weight Fat Scale

HW-700A ultrasonic Height and Weight Scale

Product Introduction

Pre-sale consultation phone number: 13838063822
Measurement items: height, weight, BMI, human body composition

Product Advantages:

Real color high definition touchable large screen
Foldable body
High-speed thermal printer
Chassis with wheels, easy to move

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

Product Introduction

HW-700A ultrasonic Height and Weight Scale is a popular product. The device can measure health indicators such as height, weight, BMI, and human body composition. It uses a high-precision ultrasonic probe to measure distance. The entire measurement process is carried out in the touch of the screen. The system intelligently prompts and automatically reports the measurement results. It adopts a 7-inch true color LCD display, and can play health education and publicity knowledge in standby state. Supports data upload and high-speed thermal printing results.

Testing items

Features

STEP ONE

Accurate measurement

High-precision ultrasonic probes are used to measure distances, with high measurement efficiency and can be measured immediately.

learn more
STEP TWO

True color LCD display

True color LCD display; health education publicity knowledge can be played in standby state. The entire measurement process is done in a screen touch manner.

learn more
STEP THREE

Fully automatic voice broadcast

The whole process guided measurement is provided, the voice prompts are loud, the system intelligent voice prompts and automatically broadcasts the measurement results.

learn more

STEP ONE

Portable and foldable with pulleys on the bottom

It comes with folding function and pulleys at the bottom, making it very convenient to move the transition.

learn more
STEP TWO

Intelligent Internet

The measurement data is bound to the WeChat official account, and the measurement data is obtained by scanning the code on your mobile phone. The physical examination report forms a health curve chart and provides health suggestions for easy record preservation and comparison.

learn more
STEP THREE

High-speed thermal printing

It adopts a high-speed thermally sensitive easy-to-install printer, which is easy to change paper and can set up the header of the printing unit.

learn more

Functional parameters

model	HW-700A
Altitude measurement devices	High-precision ultrasonic detector
Focus on sensors	High-precision balanced beam pressure sensor
BMI normal range	18.5-24.0
Display method	HD Halal color LCD screen display
Displayed during standby	Date, time, temperature
Displayed during measurement	Height, weight, BMI
Operation method	The entire measurement process is done in a screen touch manner
voice	The system intelligent voice prompts and automatically broadcasts measurement results
Data transmission	RS-232 standard interface
Ambient temperature	-10°C ~ +40°C
Power supply voltage	AC100-240V, 50Hz
power	≤10W
Product weight	Net weight 20kg, gross weight 23kg
External dimensions	MAX:45(L)x33(W)x235(H)cm
Folding height	≤120cm

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
