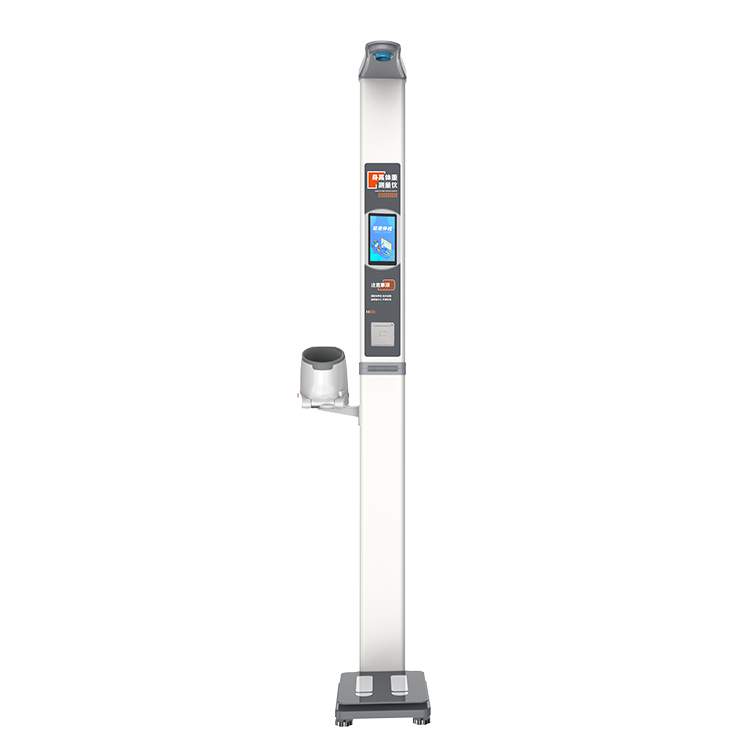

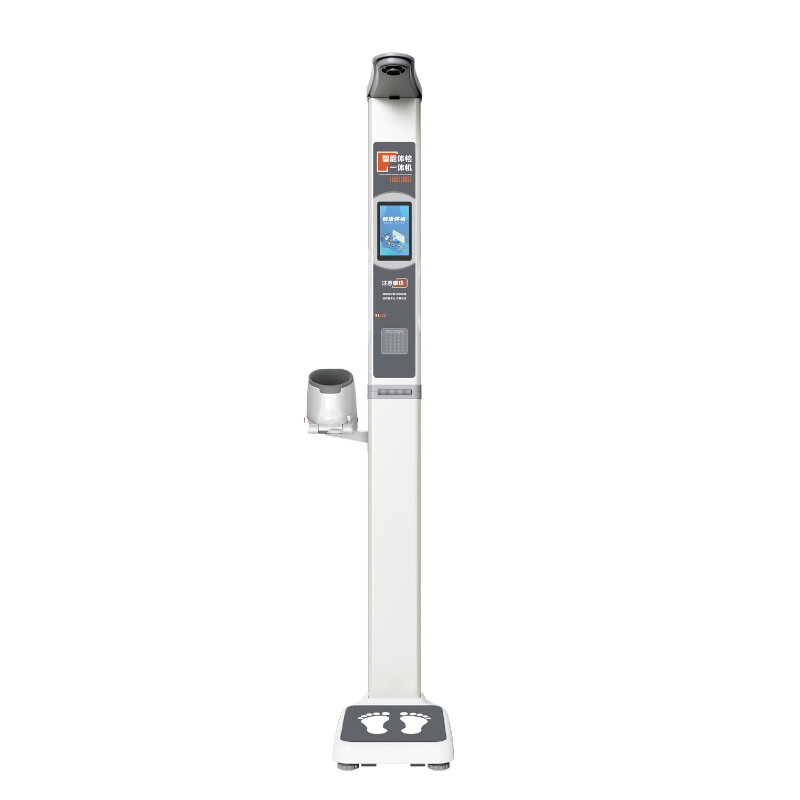

HW-700B ultrasonic height weight blood pressure measuring instrument

HW-700B ultrasonic height weight blood pressure measuring instrument

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: Height, weight, BMI, human body composition (17 items), blood pressure

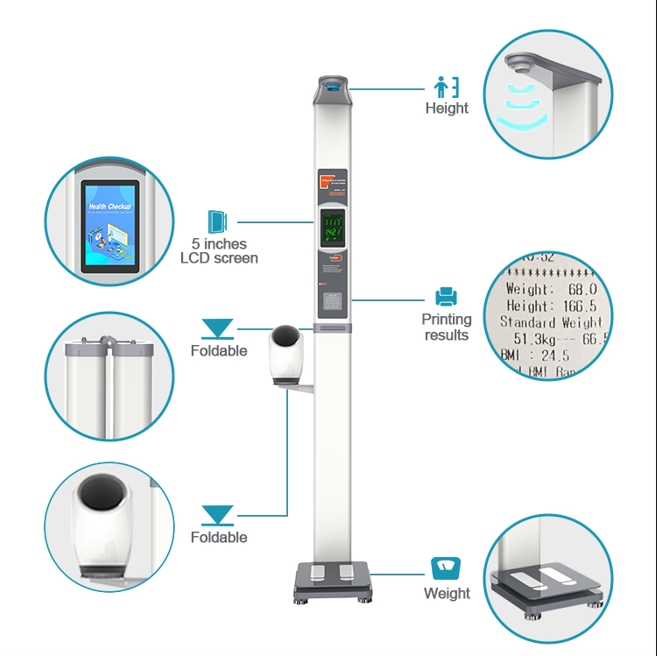

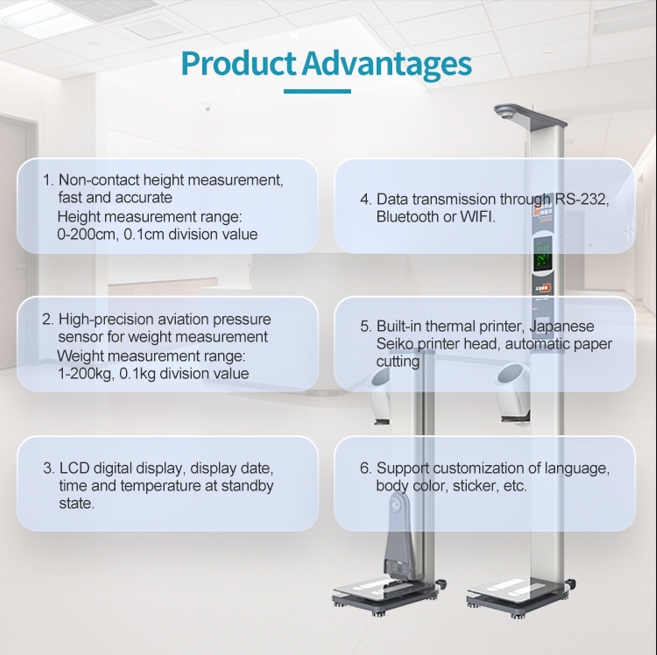

Product Advantages:
High-precision ultrasonic detector, contactless alveolar measurement
High-definition LED display
Foldable for easy storage and transportation
Standard RS232 communication interface, can connect to the unit's physical examination system
Fully automatic voice broadcast

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

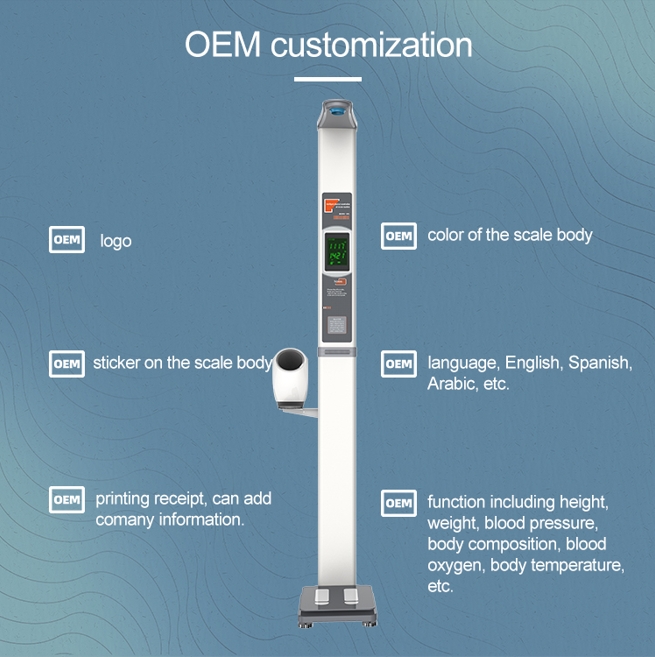

700B

Product Introduction

The HW-700B ultrasonic height and weight blood pressure measuring instrument is a height and weight scale with blood pressure. The device can measure height, weight, blood pressure and other health indicators. The blood pressure monitor uses Omron/Panisham blood pressure monitor, and guided self-service measurement throughout the process. There are voice operation prompts and measurement results broadcasts during the operation. It is suitable for public health physical examinations, hospitals, physical examination centers, health centers, health centers, health centers, elderly health centers and other places.

Testing items

Features

STEP ONE

Appearance design

The shape design is ergonomic; the whole machine is stamped with cold plate stamping, electrostatic spraying on the surface, non-cast iron chassis, strong and durable, beautiful appearance, corrosion resistance and impact resistance. Casing thickness: ≥2mm.

learn more
STEP TWO

Fully automatic voice broadcast

The whole process guided measurement is provided, the voice prompts are loud, the system clearly guides the voice and automatically broadcasts the measurement results.

learn more
STEP THREE

Display method

1.8-inch high-bright LED digital display is not affected by external light and viewing angle. The standby state displays date, time, and indoor temperature.

learn more

STEP ONE

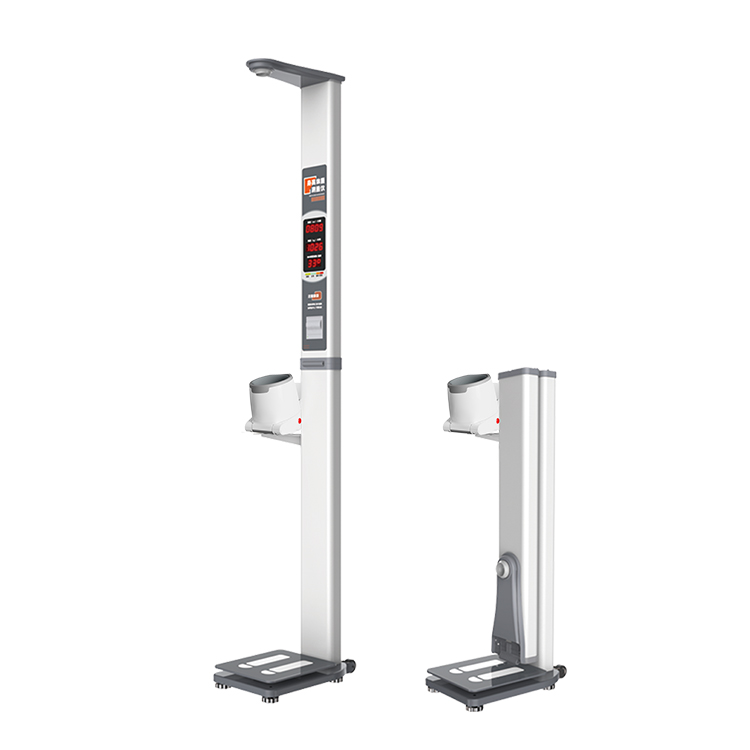

Portable and foldable with pulleys on the bottom

It comes with folding function and pulleys at the bottom, making it very convenient to move the transition.

learn more
STEP TWO

Data transmission

The standard RS232 communication interface can connect to the unit's physical examination system, upload measurement data, stable transmission data performance, and provide free serial port protocol.

learn more
STEP THREE

Built-in thermal printer

High-speed thermal printing measurement report is easy to change paper, easy to operate, convenient and practical.

learn more

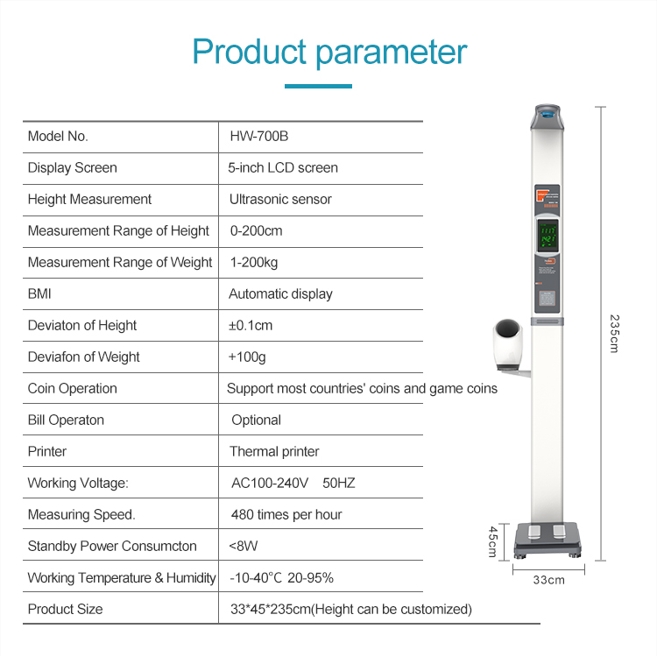

Functional parameters

model	HW-700B Ultrasonic Height Weight Blood Pressure Measuring Meter
Altitude measurement devices	Medical grade ultrasonic matrix ranging (with an ultrasonic sensor patent) automatic temperature compensation, not affected by the environment, accurate measurement
Height measurement range	0-210cm, indexing value 0.1cm
Weight measuring sensor	Weight measurement of aeronautical instrument-level beam pressure sensor
Weight measurement range	1-200kg, indexing value 0.1kg
BMI normal range	Automatic calculation of international general body size index (BMI)
Blood pressure measurement range	0-299mmHg (0-39.9kpa) arm cylinder type fully automatic blood pressure meter, Kohn sound + oscilloscope measurement method
Display method	LED digital tube display, display date, time and indoor ambient temperature in standby state
Whole machine/folding height	The height of the whole machine is ≤235cm; the folding height is ≤120cm
Measurement results	LEDs show height, weight, BMI, and indicate thin, normal, fat, and obese
Measurement speed	480 times/hour
Voice broadcast	The measurement results are synchronous and clear voice broadcast, the sound size can be adjusted freely, and one-click switching is supported in eight languages
Built-in thermal printer	High-speed thermal printing measurement report, easy to change paper, easy to operate, convenient and practical
Data transmission	The standard RS232 communication interface can connect to various HIS, LIS, public health, health examination systems and other unit platforms, and provide free serial port agreement
Ambient temperature	-10C~+40℃
Power supply voltage	AC100-240V, 50Hz
power	≤10w
External dimensions	MAX:45(L)x33(W)x235(H)cm
Product weight	Net weight 20kg, gross weight 22kg

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
