HW-700 Coin Operated Height Weight Scale

HW-700 Ultrasonic Height and Weight Scale

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: Height, Weight, BMI
Product Advantages:
5-inch LCD screen
Foldable for easy storage and transportation
High-speed thermal printing
Chassis with wheels, easy to move

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

Product Introduction

HW-700 Ultrasonic Height and Weight Scale is an advanced device that uses ultrasonic technology to measure human height and weight. The product is simple in design and convenient in operation. It can automatically and accurately measure height, weight, and BMI. The measurement speed is ≥480 times/hour. The system clearly guides the operation of voice and automatically reports the measurement results.

Testing items

Features

STEP ONE

Appearance design

The shape design is ergonomic; the whole machine is stamped with cold plate stamping, electrostatic spraying on the surface, non-cast iron chassis, strong and durable, beautiful appearance, corrosion resistance and impact resistance. Casing thickness: ≥2mm.

learn more
STEP TWO

Fully automatic voice broadcast

The whole process guided measurement is provided, the voice prompts are loud, the system clearly guides the voice and automatically broadcasts the measurement results.

learn more
STEP THREE

Display method

5-inch high-definition LCD screen.

learn more

STEP ONE

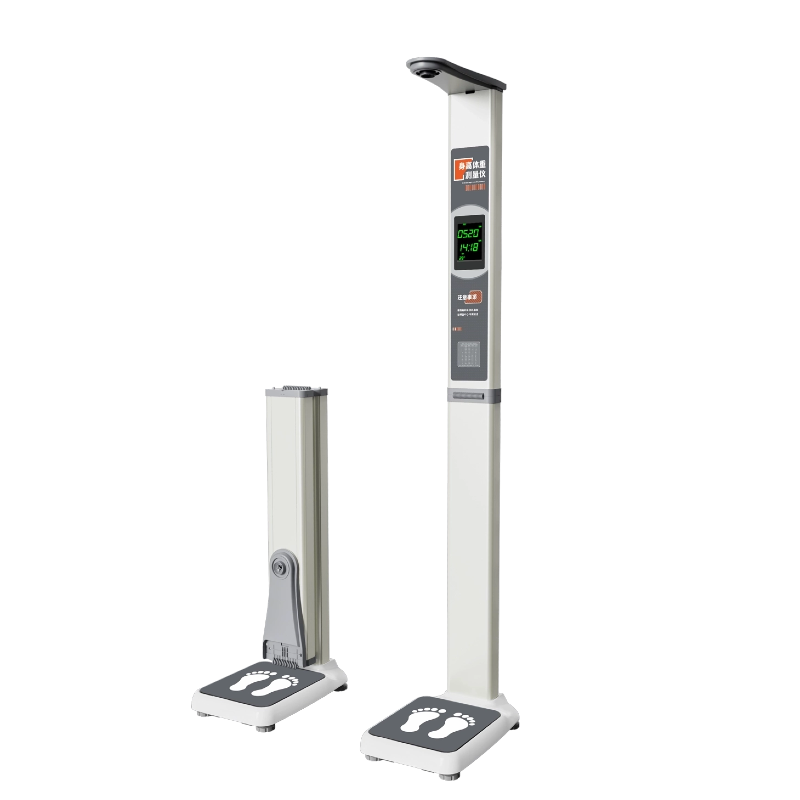

Portable and foldable with pulleys on the bottom

It comes with folding function and pulleys at the bottom, making it very convenient to move the transition.

learn more
STEP TWO

Data transmission

The standard RS232 communication interface can connect to the unit's physical examination system, upload measurement data, stable transmission data performance, and provide free serial port protocol.

learn more
STEP THREE

Built-in thermal printer

High-speed thermal printing measurement report is easy to change paper, easy to operate, convenient and practical.

learn more

Functional parameters

Product model	HW-700 Ultrasonic Height and Weight Scale
Height measurement	Medical-grade ultrasonic matrix ranging (with an ultrasonic sensor patent) automatic temperature compensation, not affected by the environment
Height measurement range	0-210cm Index value 0.1 cm
Weight measurement	Aviation instrument-level beam pressure sensor measurement
Weight measurement range	1-200kg Indexing value 0.1kg
Measurement speed	480 times/hour
Display method	LCD display, display height, weight, BMI body index, indicating body size is thin, normal, fat, obese, and display the current date, time, and temperature in standby state
Voice broadcast	The measurement results are synchronous and clear voice broadcast, the sound size can be adjusted freely, and one-click switching is supported in eight languages
Data transmission	The standard RS232 communication interface can connect to various HIS, LIS, public health, health examination systems and other unit platforms, and provide free serial port protocols
Power supply voltage	AC (lighting): 100V-240V, 50-60HZ DC (battery): 6V/1A
Folding height	≤120 cm
Net weight of the whole machine	20KG
Net weight of the whole machine	20KG
Average power	≤10W
Temperature environment	Temperature: -10℃-+40℃, humidity: ≤85%

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
