HW-T600 National Physical Fitness Testing All-in-one Machine

HW-T600 National Physical Console Testing Machine

Product Introduction

Measurement items: height, weight, BMI, human body composition (17 items), blood pressure, heart rate, blood oxygen, body temperature, balance force, push-ups, step test, sit-ups, vertical jumps, and forward bends of sitting positions.
Expanded functions: rapid electrocardiogram, bone density meter, alcohol testing
Height range: 0-210CM
Weight range: 1-200KG
Product Advantages:
Integrated design, modular testing project
Six login methods are available
Support remote monitoring in the cloud, intelligent interconnection: measurement data supports upload
3D robot + AI artificial intelligence visual action self-service detection
Scientific exercise prescriptions, providing quality exercise and dietary advice

Availability:



Inquire

Product Description

Testing items

Technical indicators of each sub-item detection function

Product parameters

Scope of application

Product Introduction

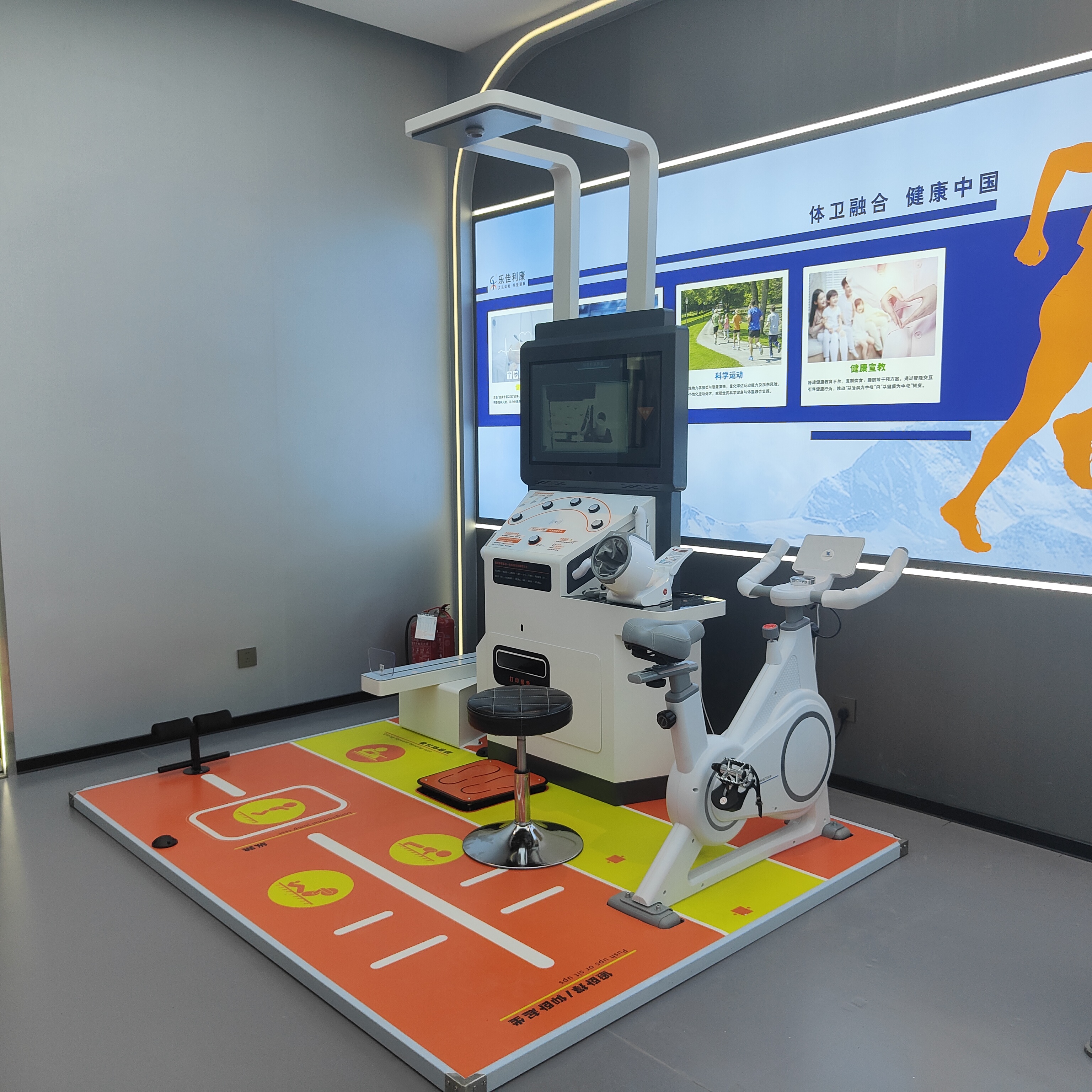

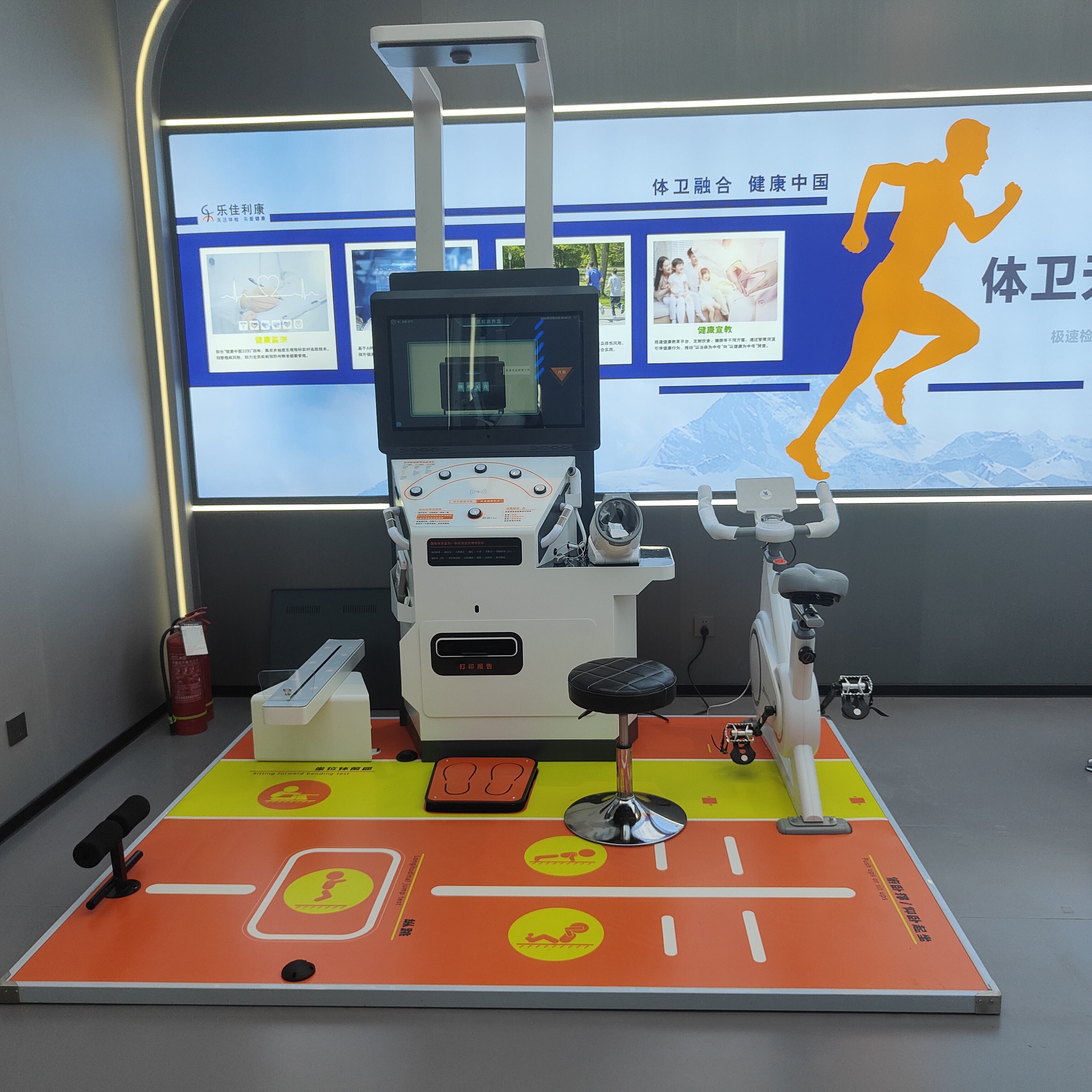

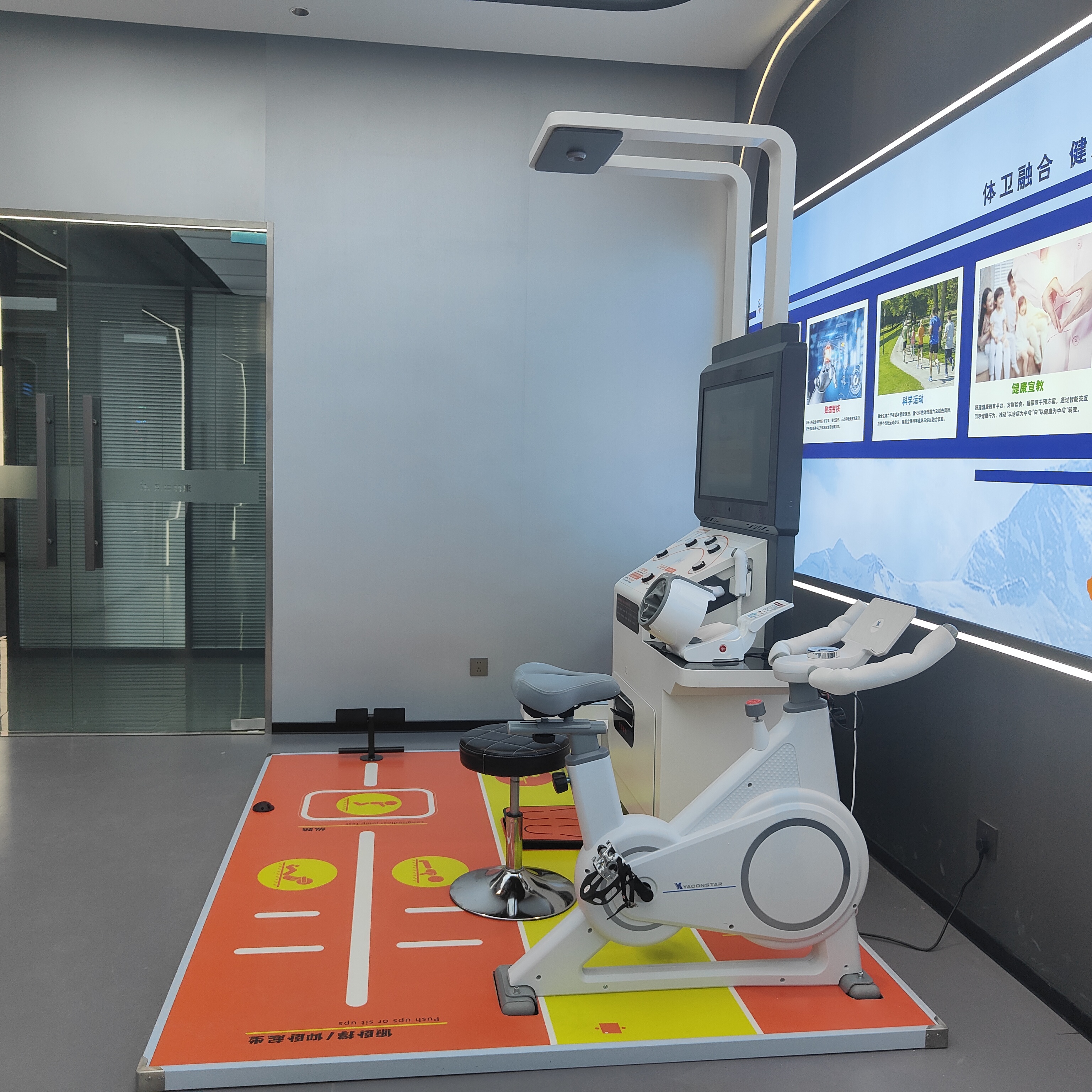

The HW-T600 national physical fitness testing machine is an automated, intelligent, professional and systematic all-round AI intelligent detection instrument developed in accordance with the relevant requirements of the 'National Physical Fitness Testing Standards'. This instrument uses AI artificial intelligence, which can quickly and accurately conduct national physical fitness health testing, providing reliable data support for the country to collect and analyze national physical fitness, and escort the improvement of the physical fitness of the whole people. The entire AI intelligent 3D animation robot voice + action guidance helps users complete login and measurement independently. The user login automatically matches the relevant requirements of the 'National Physical Physical Monitoring Standards' based on gender and age. During the user testing process, the tested items are displayed in real time, visualized, displayed test results in real time, printed A4 test reports, scan the code for mini-programs to obtain reports, etc.

Standard functions

height
weight
BMI
Human body composition
blood pressure
Pulmonary capacity
Heart rate
vision
Color blindness
Balance
push-up
When reacting
Step test
Grip strength
Sit forward bend
Sitting ups
Jump vertically

Expand functions

Features

STEP ONE

Appearance design

The body measuring machine is integrated and integrated. The entire shell is made of high-strength, high-toughness and high-precision steel materials. After CNC bending, stamping, welding and other processes, it has the characteristics of high strength, good protection performance, beautiful and generous appearance. No separate components, easy to manage and maintain daily.

learn more
STEP TWO

Various login methods are available

①Second generation ID card login
②Face recognition login
③WeChat login
④ Manual login
⑤Contactless IC/ID card
⑥ Third generation social security card

learn more
STEP THREE

Physical test

It adopts AI digital artificial intelligence action perception module and infrared ranging technology to capture human movements throughout the process, accurately monitor human movement status and accurately measure it, supporting remote upgrades of physical testing projects.

learn more

STEP ONE

Strong human-computer interaction capabilities

3D robot voice action guides self-service detection, AI visual action detection, scans human movements through deep-sensing imaging technology, and has posture detection and motion recognition functions to automatically determine whether the subject's movement standard is.

learn more
STEP TWO

Exercise prescription

Personalized exercise plans and dietary suggestions can be formulated for users based on factors such as personal physical condition, exercise level, and eating habits to achieve healthy, safe and efficient exercise results.

learn more
STEP THREE

Printing system

Standard domestic printing system, A4 laser printer, fast printing speed, long storage time, low failure rate, no noise, etc.

learn more

STEP ONE

Seven ways to obtain reports

a: LCD screen real-time display detection report
b: Voice broadcast
c:: Print A4 paper report
d: Scan the QR code on your mobile phone to get the report
e: This machine checks the physical examination report
f: Cloud platform query report
g: Mini program gets a report

learn more
STEP TWO

Intelligent Internet

This system can be bound to a WeChat official account. Users do not need to download additional APPs and operate directly on the WeChat official account. It is more convenient and quick to obtain physical examination reports, facilitate record saving and comparison, and provide dietary exercise and health advice. More convenient and safer.

learn more
STEP THREE

Health record management system

Intelligently create personal files, and the system can statistics, analyze, process, query and report data.

learn more

Technical indicators of each sub-item detection function

Height and Weight BMI (Software Provided)

Ultrasonic probe height measurement; measurement range: 0~200cm;
Grading value 0.1cm; Error: ±0.1cm
Weighing with high-precision pressure sensor; measuring range: 1~200kg;
Grading value: 0.1kg; Error: ±0.1kg
International Common Physical Index (BMI), automatic calculation
17 items for human body composition testing (soft writing provided)

★It is easy to use and easy to use
The human body resistance method accurately measures the body's body fat mass, fat rate, basal metabolic volume, body water content, body moisture rate, muscle mass, muscle rate, protein mass, protein rate, bone salt weight, fat removal weight, intracellular fluid volume, intracellular fluid rate, extracellular fluid rate, extracellular fluid rate, visceral fat grade, bone mass and other health information.
★Medical arm cylinder electronic blood pressure meter, using oscillometric measurement method

Range: Blood pressure: 0-299mmHg (0-40kpa) Heart rate: 40-180 times/min
Accuracy: Pressure: ±1mmHg (±0.1333kpa) Internal pulse: within ±2%
Pulmonary capacity (can upgrade lung function)

Testing the maximum ventilation ability of the human body reflects the volume of the lungs and the expansion ability of the lungs. It is a common functional indicator for evaluating the growth and development level and physical condition of the human body.
Pulmonary function test items: maximum exhalation pressure (MEP), forceful lung capacity (FVC), 0.5 second forceful breath volume (FEV0.5), 1 second forceful breath volume (FEV1), peak expiration flow rate (PEF), 25% pulmonary capacity (FEF2575), average expiration flow rate between 25% and 75% pulmonary capacity (FEF75).
★Sighted color blindness

With the wireless remote control function, self-service measurement of vision, color blindness, and color weakness.
★Balance force

Automatically test the time of standing with one foot with closed eyes, reflecting the body's balance ability. It can be used to evaluate the coordination ability between position, visual and proprioception. During the test, precision sensors are used to monitor user status in real time.
push-up

Reflects the muscle strength and continuous working ability of the human upper limbs, shoulders and back, and the measurement data is displayed on the large screen and monitored in real time. Using optical AI recognition technology, the AI robot's actions are synchronized with the test user, and accompanied by voice guidance, automatically identifying whether the user's actions are standardized and counted.
Sitting ups

Reflects the strength and continuous working ability of the human waist and abdominal muscles, and the measurement data is displayed on a large screen, and monitored in real time. Using optical recognition technology, the AI robot's actions are synchronized with the test user, and accompanied by voice guidance, automatically identifying whether the user's actions are standardized and counted.
Sit forward bend

1. Used to test the range of movement that can be achieved by joints such as the trunk, waist, and hips in a stationary state, reflecting the level of body flexibility.
2.★The push plate can be automatically reset, and the high-precision digital grating technology is adopted for the own patented technology, with an accuracy of 0.1±.
Step test

Automatically test the heart rate index and blood oxygen index after up and down steps of the human body to evaluate the functional level of the cardiovascular system. The steps can be adjusted according to the gender height. The steps are made of the same body. The material is sturdy, not easy to damage, and not easy to move when used, ensuring the accuracy and safety of the test.
Vertical jump test

The vertical jump height is calculated by accurately measuring the microsecond sensor, reflecting the muscle strength and explosive force of the lower limbs. The three vertical jump counts are performed according to the prompts to record the optimal result.
Grip strength test

It mainly tests the muscle strength of the forearm and hand, and uses a high-precision bridge sensor grip meter, and the grip meter handle can be adjusted according to the subject. The test results are automatically recorded, and the grip gauge is equipped with fixed position storage.
When reacting

Reflects the coordination and rapid response ability of the human nerves and muscle system. The buttons adopt anti-violence mechanical buttons, high-density ABS photoelectric integrated design, sound, light and shadow simultaneously prompts, and multiple random signals are designed to improve the accuracy of the test.

Functional parameters

Product model	HW-T600 National Physical Console Testing Machine
Screen	≥ 32 inch high-definition LCD touch large screen, anti-glare, IPS full viewing angle, resolution: 1920*1080
Four login methods	1. Identity card login 2. Face recognition login (built-in 200 × ultra-clear camera) 3. WeChat login 4. Manual login
Six ways to obtain reports	a: Display screen display, b: Voice broadcast, c: Print A4 paper report, c: Scan the code on your mobile phone to obtain the physical examination report, d: Check the physical examination report by this machine, e: Check the health management cloud platform
system	Quad-core 64-bit A55CPU main frequency 2.0Ghz, 2+16G super memory, system support: Androd11
Blood pressure measurement range	≥0-299mmHg (0-39.9kpa)
Pulse count	≥40-180 times/min
Blood oxygen	Detect the human blood oxygen saturation, pulse, measurement range: 35%-100% (95%-99% normal state)
Data communication	Standard RJ45 network cable interface and wireless WiFi support system data docking and provide free serial port protocol
Material	ABS (engineering plastic) cover + aluminum alloy support
Power consumption	Average power consumption ≤85W
weight	≤300kg
size	MAX: 23000 (L) * 1800 (W) * 2360 (H) m
Installation space	≥4.14²
Expand functions	Alcohol testing, bone density and other functions are optional
