Product Introduction

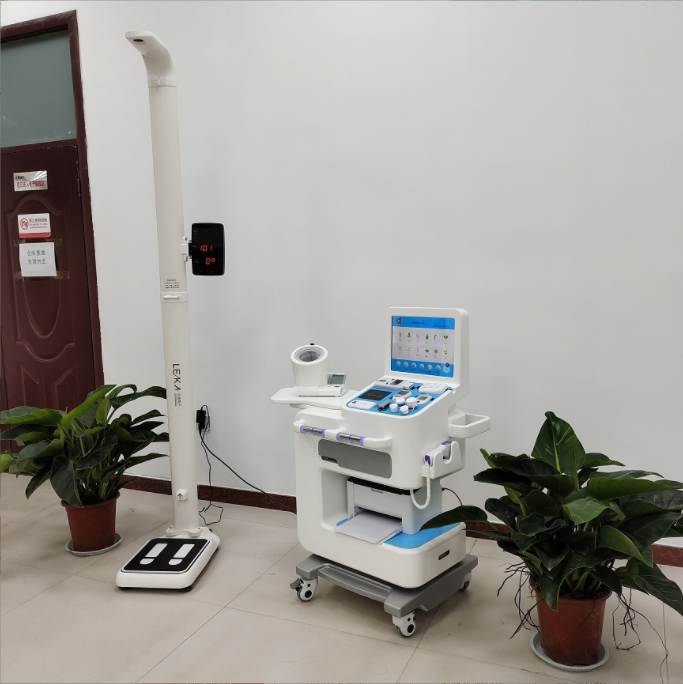

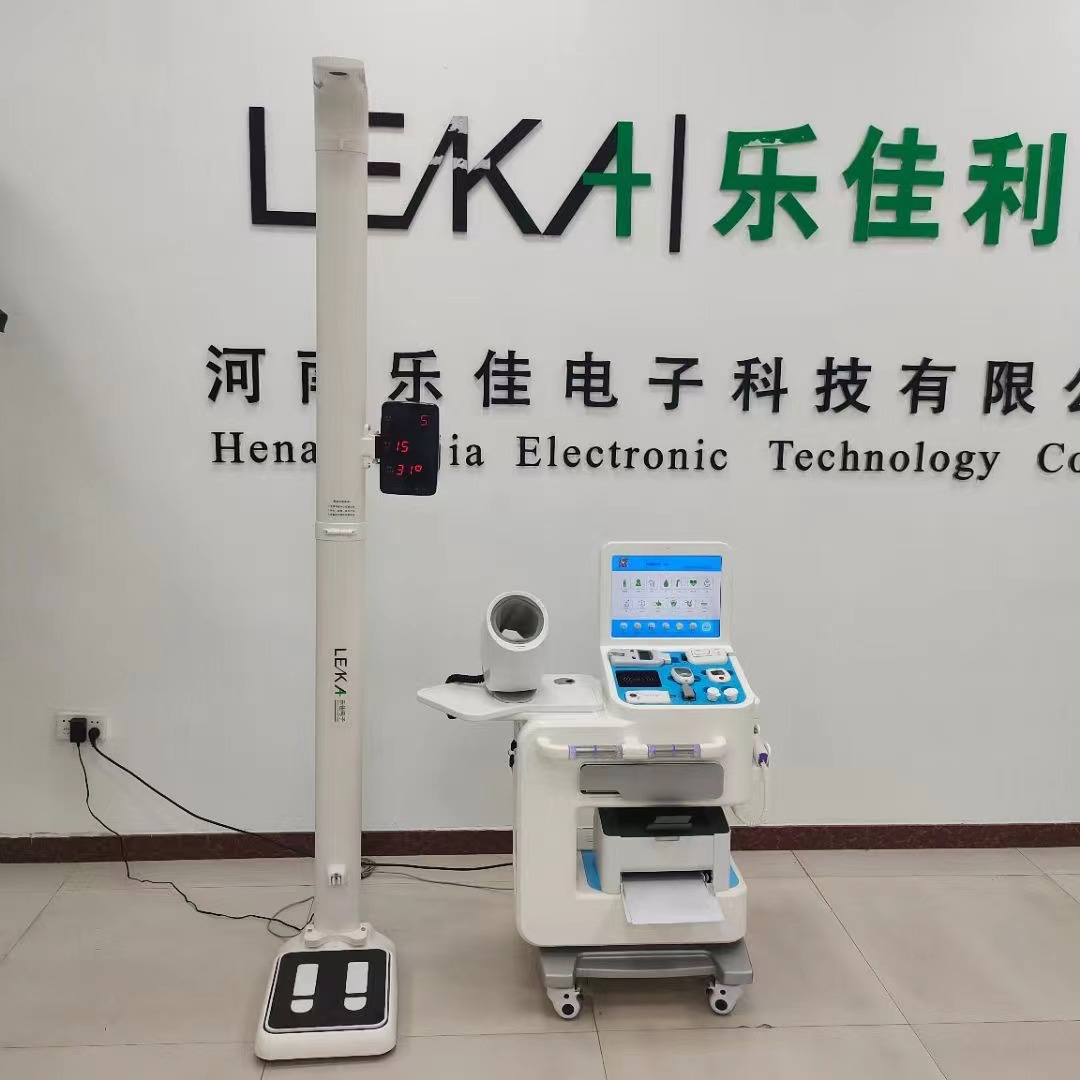

The HW-V6000 intelligent physical examination machine is a self-service one-stop, all-round professional health examination equipment independently developed based on the national public health service system. Its own can only collect information about multiple vital signs and parameters of the human body, realize intelligent file building and intelligent data collection, perform data analysis through cloud computing, and conduct health assessment, and realize intelligent, integrated and accurate chronic disease management.
Functional parameters

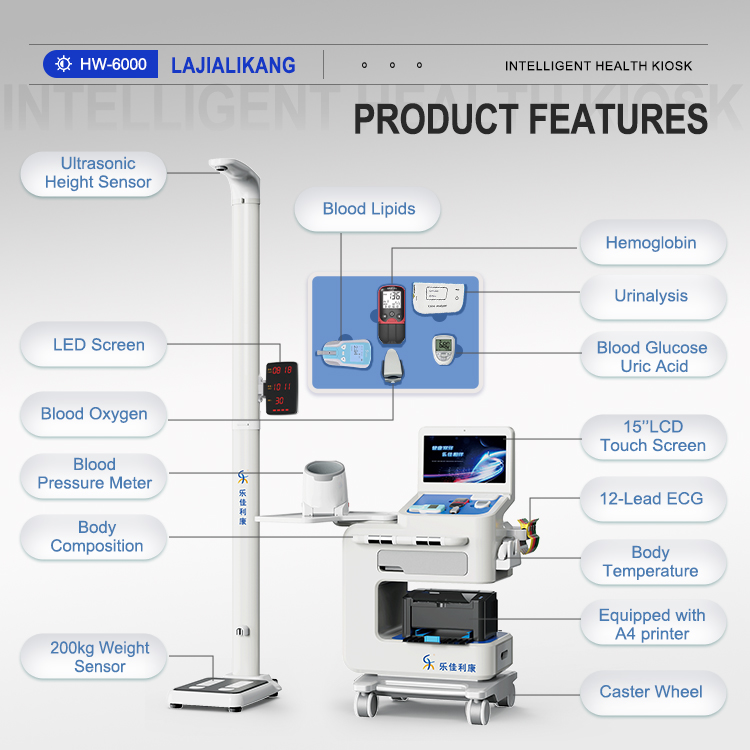

| Product model | HW-V6000 Intelligent Health Check-up Kiosk |

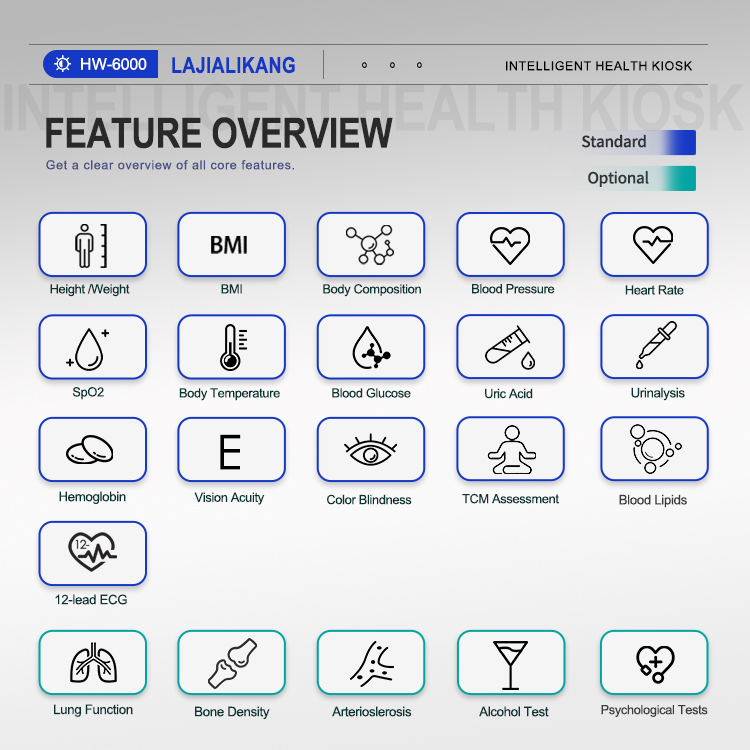

| Basic Projects | Measurements include height, weight, BMI, human body composition (seventeen items), blood pressure, heart rate, blood oxygen, body temperature, 12 electrocardiogram, blood sugar, uric acid, hemoglobin, and blood lipids, urine analysis, Chinese medicine identification, vision, color blindness |
| Expand projects | Rapid electrocardiogram, bone density, lung function, arteriosclerosis, waist-to-hip ratio, alcohol detection, etc. |
Ultrasonic height and weight instrument | High-precision height probe measuring height 0-210cm accuracy 0.1cm high-precision pressure sensor weighing 1-200kg accuracy 0.1kg |
Fully automatic blood pressure meter | Medical pulse wave blood pressure meter, oscillometric measurement method, 17-42cm large boom, accuracy within ±3mmHg |
Human body composition testing | Human body resistance method to measure fat, basal metabolism, moisture, muscle, protein, fat removal weight, bone salt, internal and external fluids, etc. |
Blood oxygen test | Finger-type blood oxygen detection is an important physiological index of respiratory cycle, measuring accuracy ±2% resolution 1% |
Temperature test | Contactless precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ distance 1-5cm |
Rapid ECG test | Hand-held rapid measurement of electrocardiogram, the measured electrocardiogram is standard lead I |
12-lead electrocardiogram | 500Hz ECG signal sampling rate, standard twelve leads, three-speed gain, error ≤±5% |
Blood sugar, uric acid, cholesterol | Standard resistance bar test, fingertip microvascular whole blood, unit: mmol/L |
Hemoglobin detection | Test content: Hemoglobin and erythrocytic backlog |
Four tests for blood lipids | Total cholesterol, triglycerides, high-density lipoprotein, low-density lipoprotein |
Urine analysis | Test items: twelve items including leukocytes, nitrites, proteins, pH values, vitamin C, microalbumin, etc. |
Physical identification of traditional Chinese medicine | The nine major physiques of traditional Chinese medicine can be automatically judged and analyzed, and the two systems of 33 questions and 66 questions can be selected. |
Waist-hip ratio | Test items: Automatic tape measure to measure waist circumference and hip circumference, and calculate waist-to-hip ratio |
Lung function | Test items: peak exhalation flow, exhalation volume in one second, and vigorous lung capacity |
arteriosclerosis | Detection of blood flow velocity pulse index and arterial pressure volume index |
Eight login methods | Identity card login, facial recognition login, fingerprint login, WeChat code scanning, card login, work number login, personal login, bar/QR code login |
Intelligent one-step file creation | Residents swipe their ID cards, and the system quickly collects information on the person’s name, gender, date of birth, address, etc., and automatically creates personal health records. |
Psychological assessment | 15 evaluation methods |
Vision color blindness | Wireless infrared remote control operation 32-inch screen to measure vision color blindness |
Operation method | Select ≥15 inch touch screen LCD screen, intelligent management system, human-computer interaction, voice animation video guide the tester to complete the health examination independently |
Appearance design | Integrated design of the integrated machine, exquisite and atmospheric appearance, the ABS engineering mold of the whole machine is formed in one go, and the four corners of the bottom are equipped with brake wheels, making it easy to move on the vehicle |
Power supply voltage | AC: 110V-240V, 50Hz; DC: 12V±10% |
Average power consumption | ≤85W |
Working environment | Temperature: -10℃-+40℃, humidity: ≤85% |
| Area | ≤1.0m² |
External dimensions | MAX: 72 (L) × 52 (W) × 120 (H) cm , 33 (L) × 55 (W) × 235 (H) cm |
Cloud platform data transmission
1. Intelligent file creation 2. Health information collection 3. Big data statistical analysis 4. Health assessment 5. Health guidance
