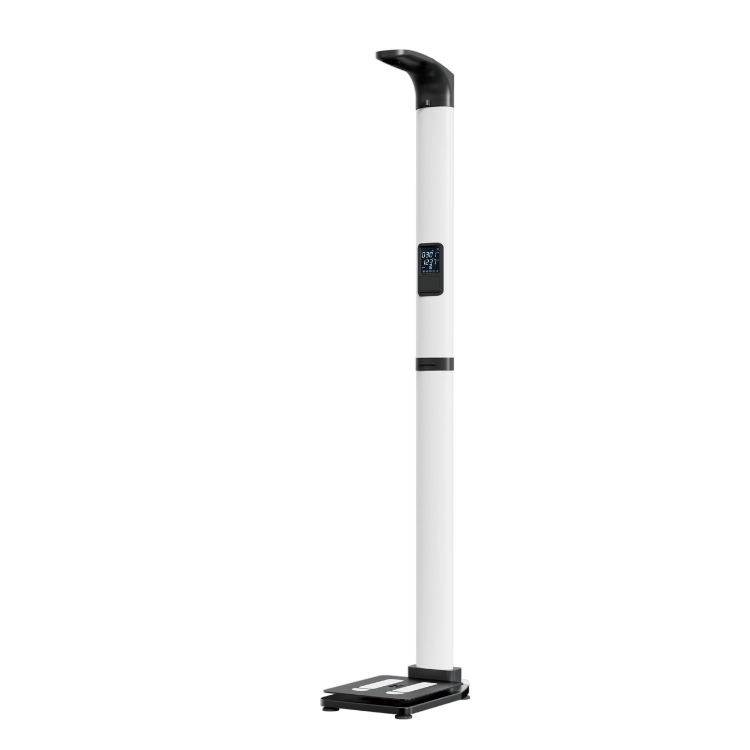

HW-200 Ultrasonic Height and Weight Scale

Product Introduction

Measurement items: Height, Weight, BMI
Height range: 0-210CM
Weight range: 1-200KG
Product Advantages:
LED digital tube display screen, time, date and temperature can be displayed by standby
Foldable for easy storage and transportation
Stable data transmission, fast speed
Fully automatic voice broadcast

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

WeChat pictures_20250709120107

Product Introduction

HW-200 Ultrasonic Height and Weight Scale is a convenient and accurate anthropometric measuring device. Fully automatic measurement, convenient and fast, the equipment is foldable, the bottom is with pulleys and easy to move, supports data upload, and has stable data transmission performance.

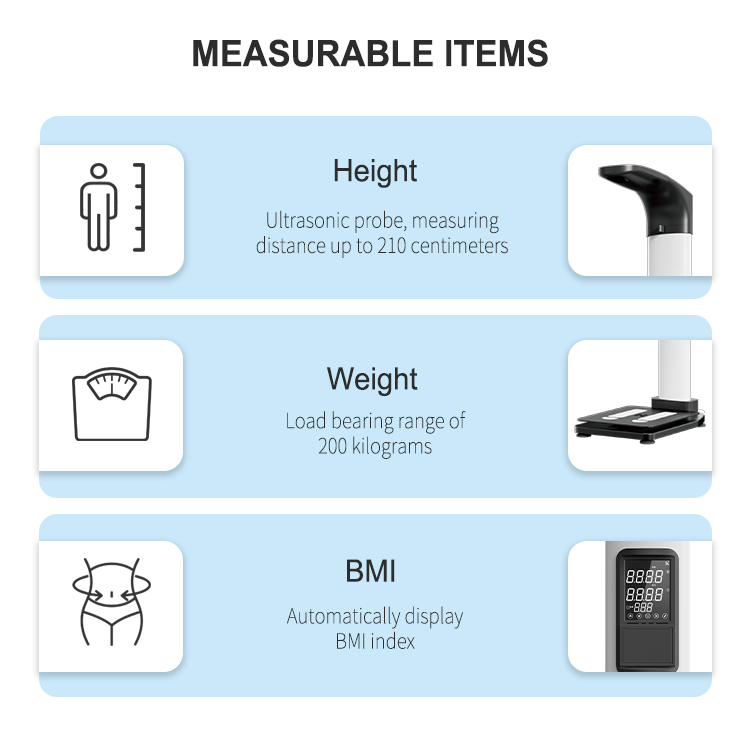

Testing items

Features

STEP ONE

Appearance design

The shape design is ergonomic; the whole machine is stamped with cold plate stamping, electrostatic spraying on the surface, non-cast iron chassis, strong and durable, beautiful appearance, corrosion resistance and impact resistance.

learn more
STEP TWO

High-definition LCD display

High-definition LCD display, which can display height, weight, BMI body index, body shape (slim, normal, fat, obese), and display date, time, indoor temperature at the standby state

learn more
STEP THREE

Fully automatic voice broadcast

Full-process guided measurement, loud voice prompts, clear voice guidance operation of the system, automatic broadcast of measurement results

learn more

STEP ONE

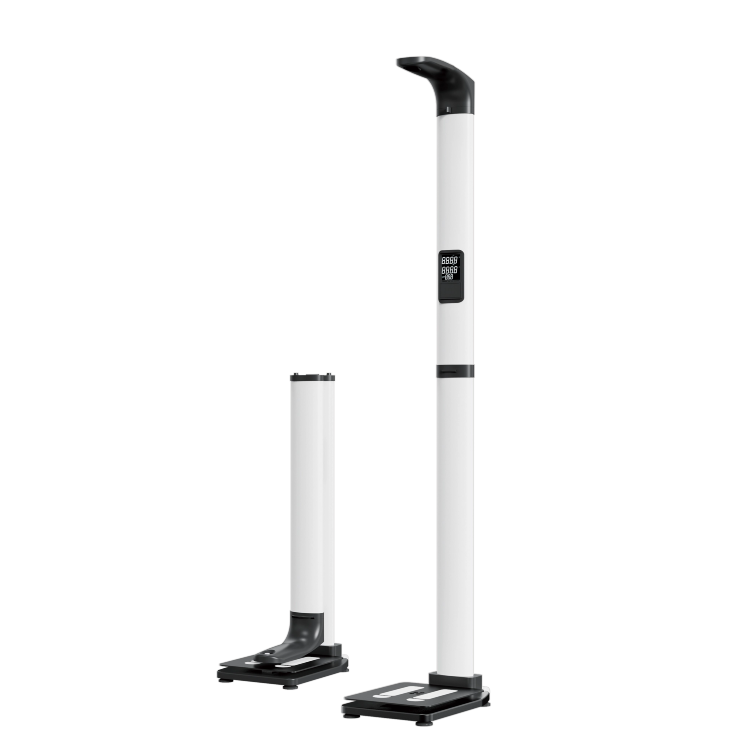

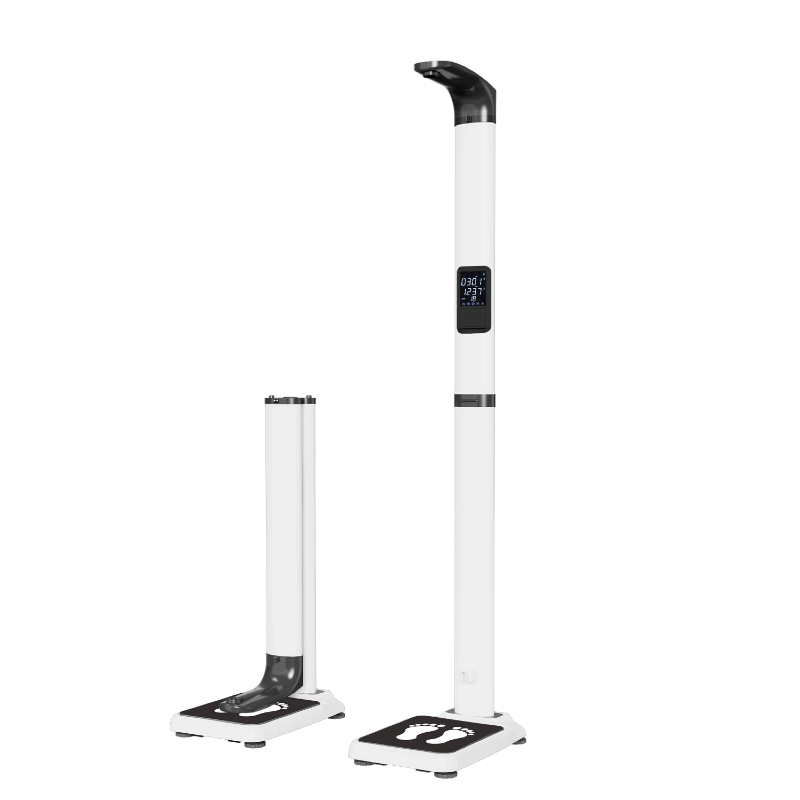

Portable and foldable with pulleys on the bottom

It comes with folding function and pulleys at the bottom, making it very convenient to move the transition.

learn more
STEP TWO

Bluetooth transmission

Bluetooth transmission is standard, and the optional RS232 communication interface can be connected to the unit's physical examination system, upload measurement data, stable transmission data performance, and free serial port protocol.

learn more
STEP THREE

Weight measurement

It adopts high-precision balanced beam pressure, automatically reports measurement results, sensor weight measurement, high sensitivity, accurate and fast.

learn more

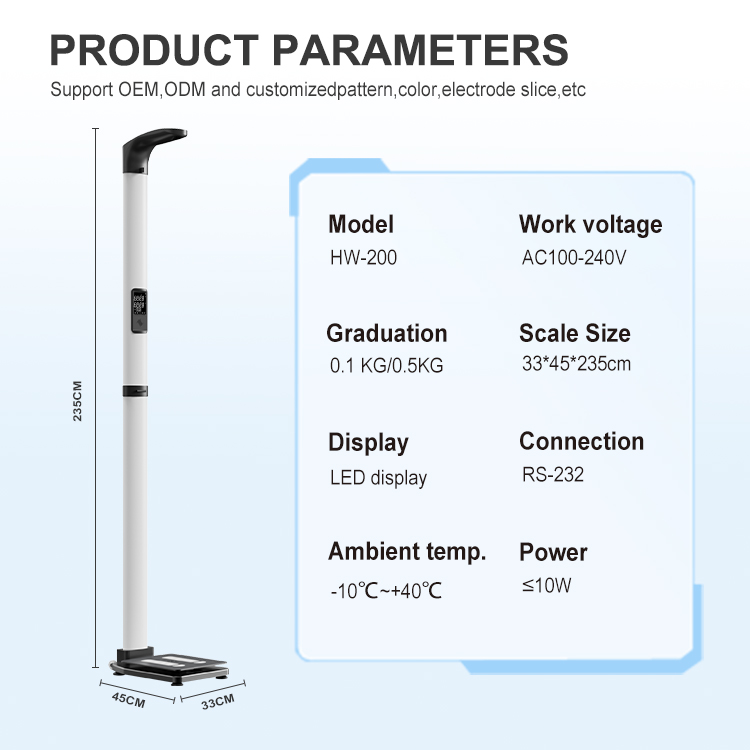

Functional parameters

Product model	HW-200 Ultrasonic Height and Weight Scale
Altitude measurement devices	High-precision ultrasonic detector
Weight measuring sensor	High-precision balanced beam pressure sensor
BMI normal range	Automatic calculation of international general body size index (BMI)
Display method	High-definition LCD display
Measurement results	Show height, weight, BMI and indicate thinness, normal, fat, obese
Voice broadcast	The measurement results are synchronous and clear voice broadcast, the sound size can be adjusted freely, and one-click switching is supported in eight languages
Measurement speed	480 times/hour
Power supply voltage	100-240V, 50Hz
Data transmission	Bluetooth transmission, optional RS232 serial port
The height of the whole machine	≤235cm
Folding height	≤120CM
Average power	≤10W
Temperature environment	Temperature: -10℃-+40℃, humidity: ≤85%
Product weight	Net weight 20kg, gross weight 22kg
External dimensions	MAX: 45 (L)×31 (W)×235 (H) cm

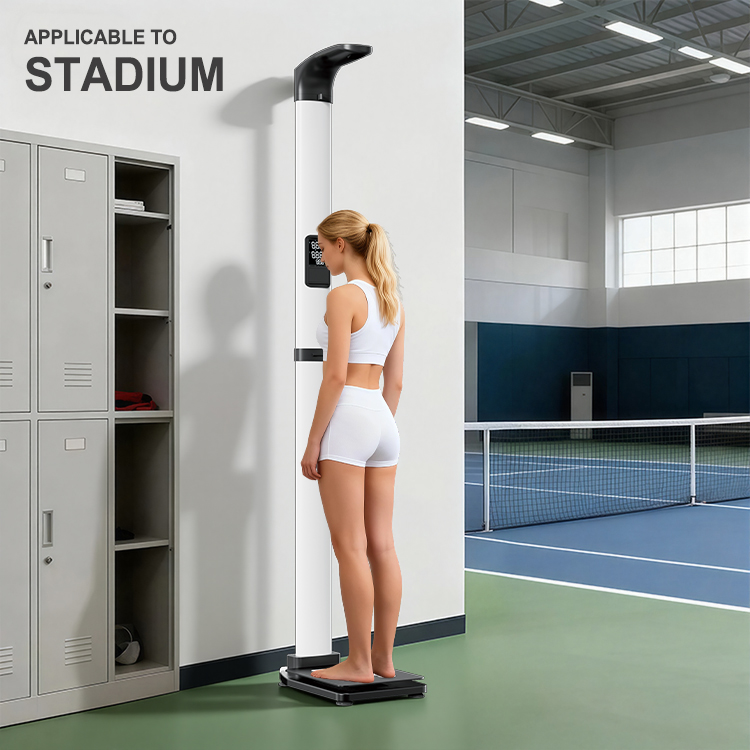

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
