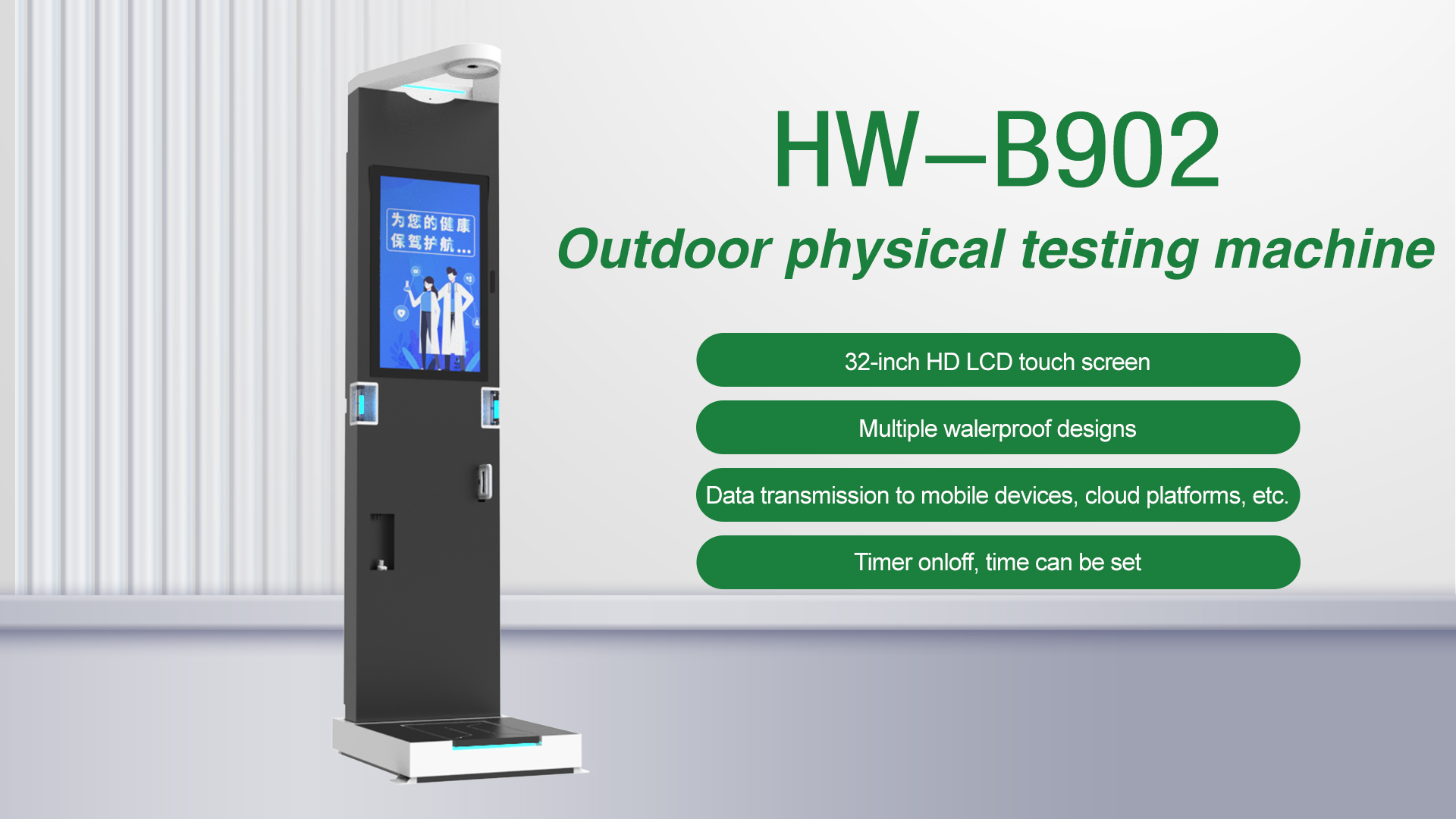

HW-B902 outdoor physical fitness monitoring machine

HW-B902 outdoor physical fitness monitoring machine

Product Introduction

Pre-sale consultation phone number: 13838063822
Measurement items: height, weight, BMI (body mass index), heart rate; body composition, balance force, reaction time, grip strength, lung capacity.
Height range: 0-210CM
Weight range: 1-500KG
Product Advantages:
Integrated design, waterproof design inside and outside the body
External 32-inch HD touch and highlight screen
Intelligent Internet: The measurement results can generate QR codes, scan the QR code on WeChat to obtain measurement results

Availability:



Inquire

Product Description

Standard functions

Functional parameters

Cloud platform data transmission

Scope of application

Product Introduction

The HW-B902 outdoor physical testing machine is an intelligent and integrated health testing device tailored for outdoor places such as smart parks, health trails, smart communities, cultural and sports fields, fitness centers, and characteristic scenic spots. Users view their health testing data in real time during exercise and fitness to achieve scientific fitness.

B902

Standard functions

Features

STEP ONE

Integrated design

Integrated design, waterproof design inside and outside the body, intelligent temperature monitoring and regulation, the equipment can be used normally in severe weather such as high and low temperatures, rain and snow, and is corrosion-resistant, impact-resistant and has a long service life.

Online consultation
STEP TWO

Multiple measurement modes are available

Face recognition login measurement: (The device needs to be connected to the Internet) Scan the screen QR code on WeChat to enter personal information to register. After registration, you can directly log in with facial recognition. It uses a 2-megapixel built-in camera to prevent backlighting, and the recognition threshold can be adjusted in the background.

Online consultation
STEP THREE

Intelligent Internet

The measurement results can generate a QR code, and scan the QR code on WeChat to obtain the measurement results; the network interconnection can be achieved through wireless WIFI or wired RJ45 interfaces, which facilitates users to access the system and upload the measurement data in real time to specify the reception address. Support cloud platform to control equipment data and view physical examiner report information; support this machine to check historical measurement records

Online consultation

STEP ONE

Outdoor dedicated 32-inch high-definition touch highlight screen

Use 32-inch high-definition touch and highlight screen for outdoor users, standby display of education pictures, full animation + intelligent system voice guide users to complete all measurement projects

Online consultation
STEP TWO

Comprehensive detection, intelligent analysis

It can detect basic health indicators such as height, weight, BMI (body mass index), heart rate, etc. Some models can also measure human body composition data such as body fat rate, muscle mass, etc., providing users with a comprehensive health assessment.

Online consultation
STEP THREE

Wide range of application

Widely used in smart parks, health trails, smart communities, cultural and sports fields, etc.

Online consultation

Functional parameters

Product model	HW-B902
Product Name	Outdoor physical fitness monitoring machine
Height measurement range	0-210cm; Accuracy: 0.1cm
Weight measurement range	1-500kg; Accuracy: 0.1kg
BMI measurement range	18.5-24
Measurement items	Height, weight, BMI (body mass index), heart rate; human body components (fat mass, fat rate, basal metabolism, body moisture content, body moisture rate, body muscle mass, body muscle rate, protein mass, protein rate, bone salt weight, fat removal weight, intracellular fluid volume, intracellular fluid rate, extracellular fluid rate, visceral fat grade, bone mass); balance force, reaction time, grip force, lung capacity
Normal heart rate range	60-100 times/minute
Grip force measurement range	1-99.9kgf, indexing value: 0.1kgf, error: ±0.3kgf
Pulmonary capacity measurement range	100-9999ml, indexing value: 1ml, error: ±2.5%
Screen	32-inch high-definition touch and highlight screen for outdoor use
Outdoor protection level requirements	The whole machine structure meets the IP65 protection level; outdoor anti-corrosion for more than 10 years
Switching power supply	Industrial-grade AC/DC power supply
Operating temperature	-20℃～+70℃
Working humidity	10%~95%
Operating voltage	ＡＣ 220V/50Hz, 12V2A

Cloud platform data transmission

1. Intelligent file creation 2. Health information collection 3. Big data statistical analysis 4. Health assessment 5. Health guidance

Scope of application

School

Provide professional body composition analysis and exercise ability assessment for students and teachers. By measuring key health indicators such as height, weight, BMI index, heart rate, body composition (such as fat mass, muscle mass), balance, reaction time, grip strength, and lung capacity, help them develop more scientific training plans to improve their athletic performance and health.
Wisdom Trail

Combined with the design of the health trail, the HW-B902 outdoor body measurement all-in-one machine can provide real-time health data feedback to citizens who are walking and exercising. This helps citizens understand their physical condition during exercise, adjust the intensity and time of exercise, and achieve better exercise results.
Smart Community

In smart communities, the HW-B902 outdoor body measurement all-in-one machine can provide community residents with comprehensive health management services. By regularly testing residents' health data, help the community establish health records and realize the sharing and management of health data. This helps community managers better understand residents' health status and formulate targeted health management policies and measures.
Smart Park

HW-B902 outdoor physical testing machine is set up in public places such as smart parks to provide citizens with convenient health testing services. Citizens can conduct physical health testing anytime, anywhere, understand their own health status, and improve their health awareness, thereby encouraging more people to pay attention and participate in health activities.
