Product model

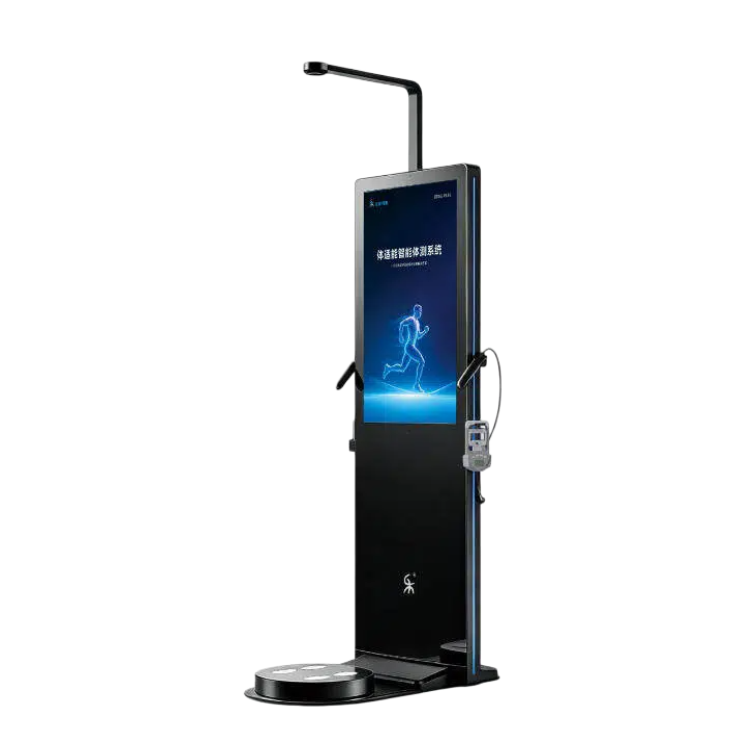

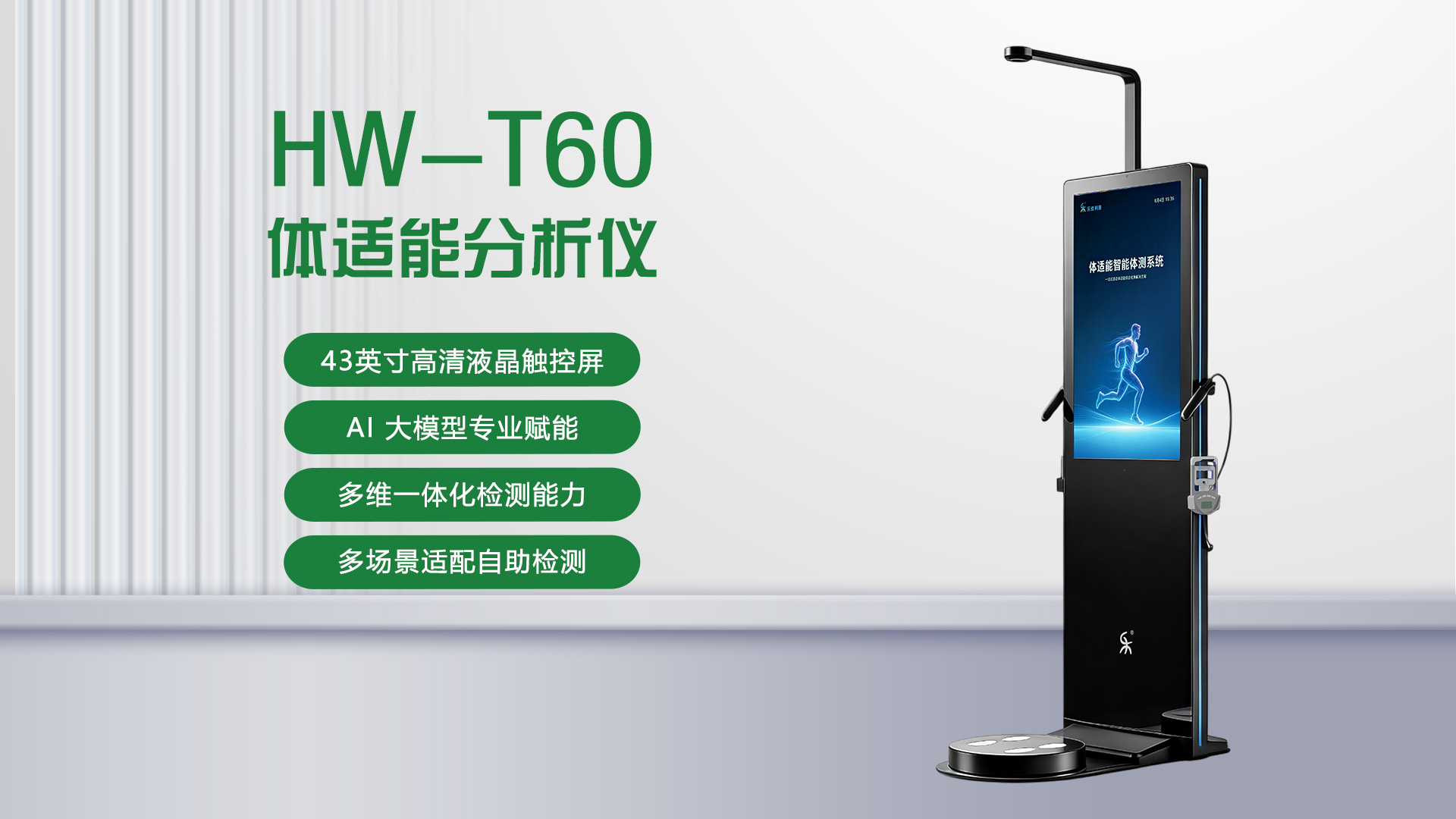

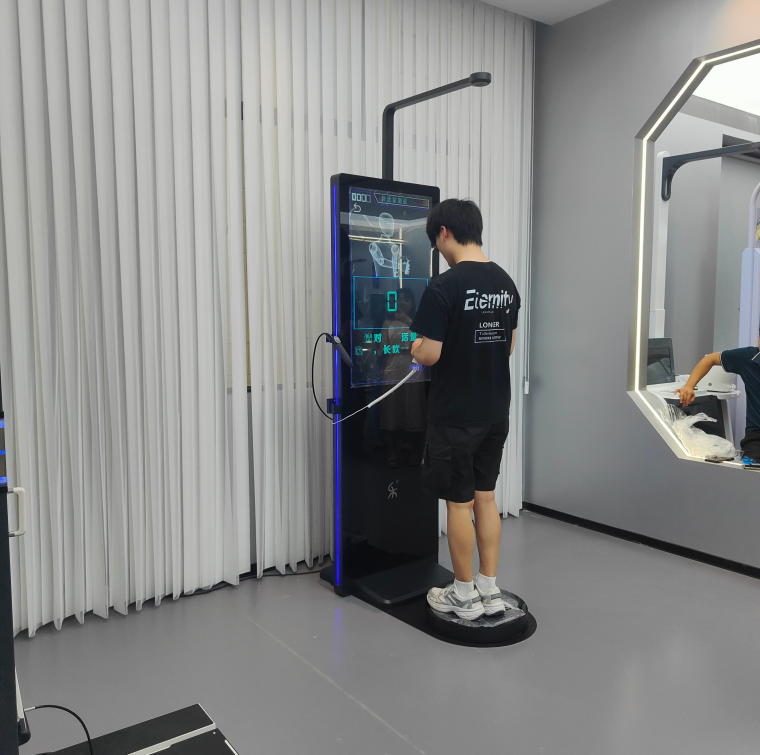

| HW-T60 physical fitness and physical examination all-in-one machine (new model released) |
| Product Name | Physical fitness and physical examination all-in-one machine |
| Measurement items | Height/weight/BMI (body mass index)/heart rate/body composition (fat mass, fat rate, basal metabolism, body water content, body water rate, body muscle mass, body muscle rate, protein mass, protein rate, bone salt weight, lean body mass, intracellular fluid volume, intracellular fluid rate, extracellular fluid volume, extracellular fluid rate, visceral fat grade, bone mass, etc.)/balance/reaction time/grip strength/vital capacity/posture screening/endurance assessment |
| Screen | HD LCD touch screen |
| Operation method | Self-service measurement, full voice + animation guides users to complete the test |
Human body composition | Health parameters such as fat mass, basal metabolism, visceral fat level, bone mass, etc. |
Balance force measurement range | <60 Unqualified<75 Qualified<83 Good and Excellent |
Grip strength | <60 Unqualified<75 Qualified<83 Good and Excellent |
| When reacting | Multi-round click timing statistics, showing the individual's average reaction seconds |
Postural analysis
| Intelligent guidance, three-dimensional scanning, accurate determination of body posture for analysis |
| Raise your legs high | The system automatically counts the effective number of leg raises in the 2-minute alternating high leg raise test. |
| jumping jacks | Excellent (85-100) Good (75-84) Pass (60-74) Unsatisfactory (<60) |
standing forward bend
| Excellent (85-100) Good (75-84) Pass (60-74) Unsatisfactory (<60) |
| Login method | Direct measurement, WeChat scan code login, face recognition login, manual login |
| Data transmission | Wireless WIFl, RJ45, data can be uploaded to cloud platform and third-party system platform |
Operating temperature
| -10°C~40°C, working humidity: 20%~80% |
| Power supply voltage | AC 220V/50Hz, 12V 2A |
