Product Introduction

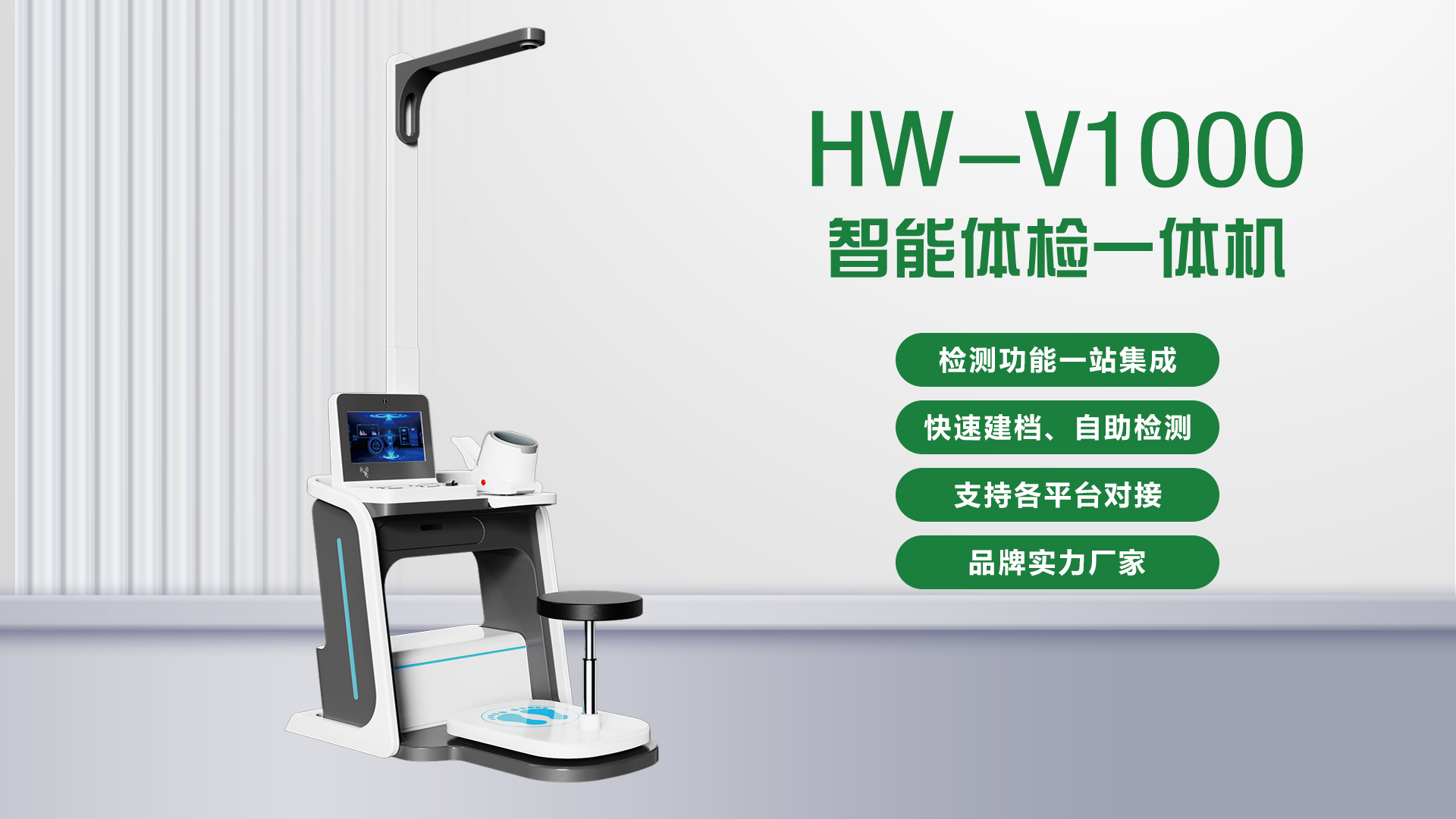

HW-V1000Intelligent Health Check-up Kiosk is a device that integrates multiple health detection functions. It combines the concepts of modern technology and traditional medicine, and provides users with comprehensive and convenient health inspection services through a series of automated testing processes. Data analysis and health assessment are carried out through cloud computing, and basic data is provided for health guidance, so as to realize the intelligence, integration and precision of chronic disease management.
Functional parameters
Product model | ＨＷ-Ｖ1000 Intelligent Health Check-up Kiosk |
| Measurement items | Height, weight, BMI, human body composition, blood pressure, heart rate, blood oxygen saturation, body temperature, vision, color blindness, Chinese medicine physique identification and other testing functions |
| Expand projects | Electrocardiogram, blood sugar, uric acid, cholesterol |
Operation method | High-definition high-sensitivity LCD touch screen operation |
| Height detection range | Height measurement range: 0cm～210cm; height score 1mm; error: ±1mm |
| Weight detection range | Weighing range: 1kg~200kg; Grading value: 100 grams; Error: ±100 grams |
Blood pressure measurement range | Pressure: (0-295) mmHg [ (0-39.33) kPa]; Pulse: 40 times/min~199 times/min |
Fat measurement range | 5.0%-50.0%, 0.5% |
Basal metabolic measurement | 385Kcal-5000Kcal |
Human body composition | Fat content, fat rate, basal metabolism, body water content, body moisture rate, body muscle mass, body muscle rate, protein mass, protein rate, bone salt weight, fat removal weight, intracellular fluid volume, intracellular fluid volume, extracellular fluid volume, extracellular fluid rate, visceral fat grade, bone mass, a total of 17 health parameters |
Blood oxygen measurement range | 35%-100% (±2% normal state (75%), ±3% exercise or weak perfusion (50%-74%), below 50% undefined) |
Body temperature measurement range | 32℃-43℃ measurement error is ±0.2℃ Resolution: 0.1℃ |
Vision color blindness | Adopt international standard vision meter |
ID card reader | Compatible with ISO1443 standard, using contactless IC card technology |
printer | High-speed thermal printing measurement results, 6 ways to obtain measurement reports |
Data transmission | Standard RJ45 network interface, RS232 interface, wireless Wifi |
Power supply voltage | ＡＣ110V－240V, 50Hz, optional DC 12V power supply |
Appearance size | 80 (L) X120 (W) X240 (H) CM |
| Area | ≤0.96㎡ |
Cloud platform data transmission
1. Intelligent file creation 2. Health information collection 3. Big data statistical analysis 4. Health assessment 5. Health guidance
