HW-V3000Intelligent Health Check-up Kiosk

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: height, weight, BMI, human body composition (17 items), blood pressure, heart rate, blood oxygen, body temperature, etc. 30+ health indicators
Expand functions: rapid electrocardiogram, blood sugar, uric acid, cholesterol, vision, color blindness, Chinese medicine identification, psychological assessment, etc.
Height range: 0-210CM
Weight range: 1-200KG
Product Advantages:
Various identification methods
14-inch high-definition LCD screen touch operation
Intelligent Internet: Measurement data supports upload
Six ways to obtain measurement reports
Blood pressure meter can be pushed and rotated
Installation of mobile wheels is convenient to move

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

V3000

Product Introduction

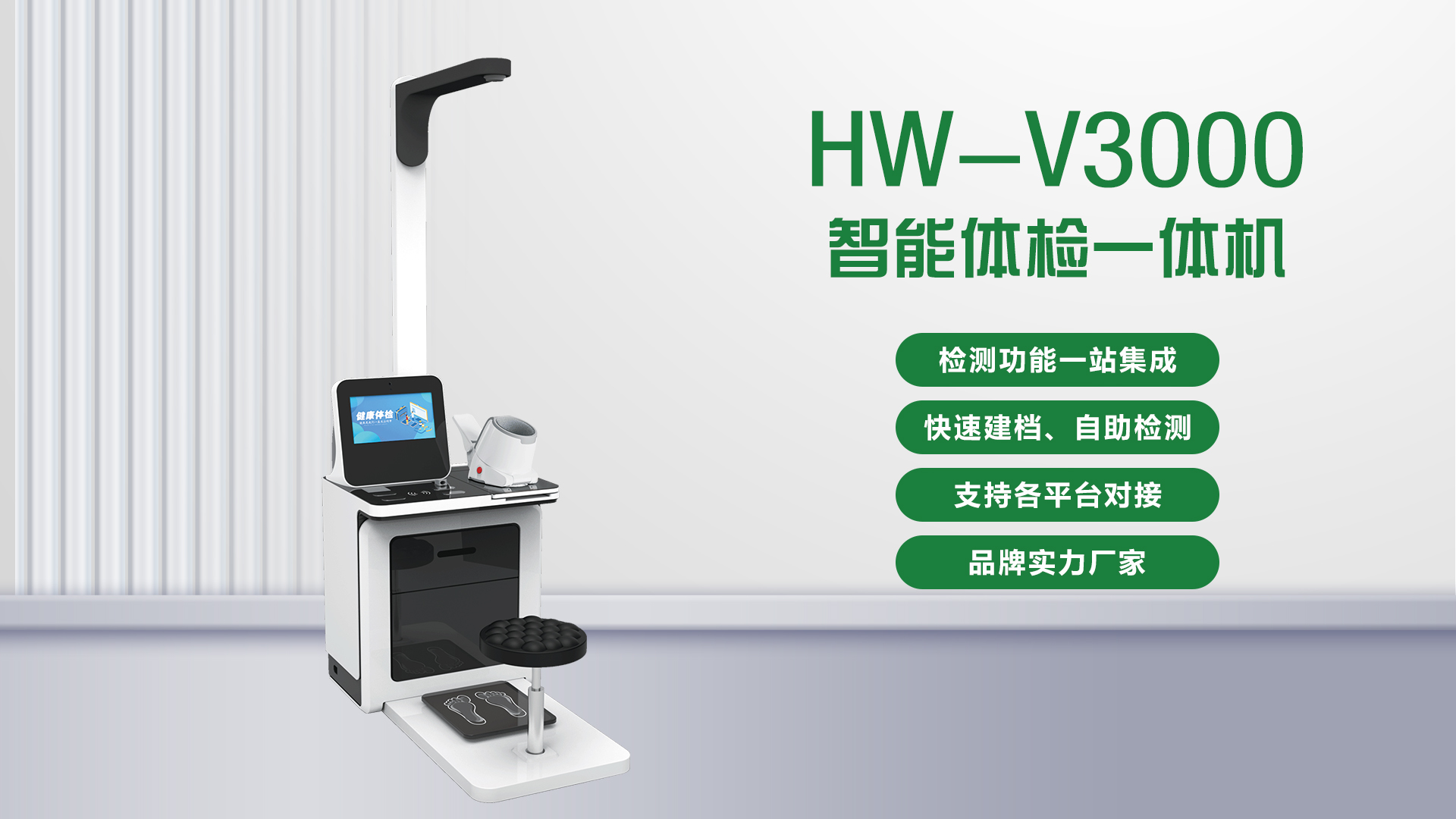

The HW-V3000 intelligent physical examination all-in-one machine is a comprehensive health physical examination device based on hardware + software + platform + services. It realizes intelligent file building and intelligent data collection, data analysis through cloud computing, health assessment, and provides basic data for health guidance, and realizes intelligent, integrated and accurate chronic disease management.

Standard functions

Expand functions

Features

STEP ONE

Four login methods

For example, ID card, facial recognition, WeChat login, etc., it supports swiping the ID card to enter measurement, extracting the tester's identity information, and automatically establishing a health file.

learn more
STEP TWO

Operation method

≥14-inch true color touch capacitor screen, resolution ≥1920*1080, service life: greater than 50,000 hours, response speed ≤5ms

learn more
STEP THREE

Intelligent Internet

The measurement data supports uploading of mobile phones, hospital system platforms, etc. The measurement data is automatically saved in this machine, supports native query, and supports network cloud platform query.

learn more

STEP ONE

Arm type blood pressure meter

The blood pressure meter supports front and back telescopicity, rotation left and right, making it convenient for measurements in different groups and in different directions;
Measurement method: Kosher + oscilloscope method, dual-mode measurement

learn more
STEP TWO

Five ways to obtain reports

1: Screen display detection report
2: Print paper inspection report

3: Scan the QR code on your mobile phone to get the physical examination report

4: This machine checks the physical examination report

5: Health Management Cloud Platform Query Report

learn more
STEP THREE

Easy to install

The installation of the moving wheel is easy to move, the chassis is equipped with wheels and universal wheels, making it easy to move.

learn more

Functional parameters

Product model	HW-V3000 Intelligent Health Check-up Kiosk
Measurement items	Height, weight, BMI, human body components, blood pressure, heart rate, blood oxygen, body temperature, etc.
Ultrasonic height and weight instrument	High-precision height probe measuring height 0-210cm accuracy 0.1cm high-precision pressure sensor weighing 1-200kg accuracy 0.1kg
Blood pressure measurement range	0-280mmHg (0-37.3kpa), pulse 30-160 times/min
Human body composition testing	Human body resistance method to measure fat, basal metabolism, moisture, muscle, protein, fat removal weight, bone salt, internal and external fluids, etc.
Fat measurement range	5.0%-50.0%, 0.5%
Temperature test	Contactless precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ distance 1-5cm
Basal metabolic measurement	385Kcal-5000Kcal
Body temperature measurement range	340℃-45℃
Vision color blindness	Adopt international standard vision meter
ID card reader	Compatible with ISO1443 standard, using contactless IC card technology
printer	High-speed thermal printing measurement results, easy to change paper
Data transmission	Standard RJ45 network interface, RS232 interface, wireless WIFI
Operation method	14-inch high sensitivity LCD touch screen operation
Power supply voltage	AC: 110V-240V, 50Hz; DC: 12V±10%
Average power consumption	≤60W
Working environment	Temperature: -10℃-+40℃, humidity: ≤85%
External dimensions	72(L)X130(W)X240(H)cm
Expand functions	Alcohol testing, bone density and other functions are optional

Cloud platform data transmission

1. Intelligent file creation 2. Health information collection 3. Big data statistical analysis 4. Health assessment 5. Health guidance

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
