HW-900AG Large screen height and weight all-in-one machine

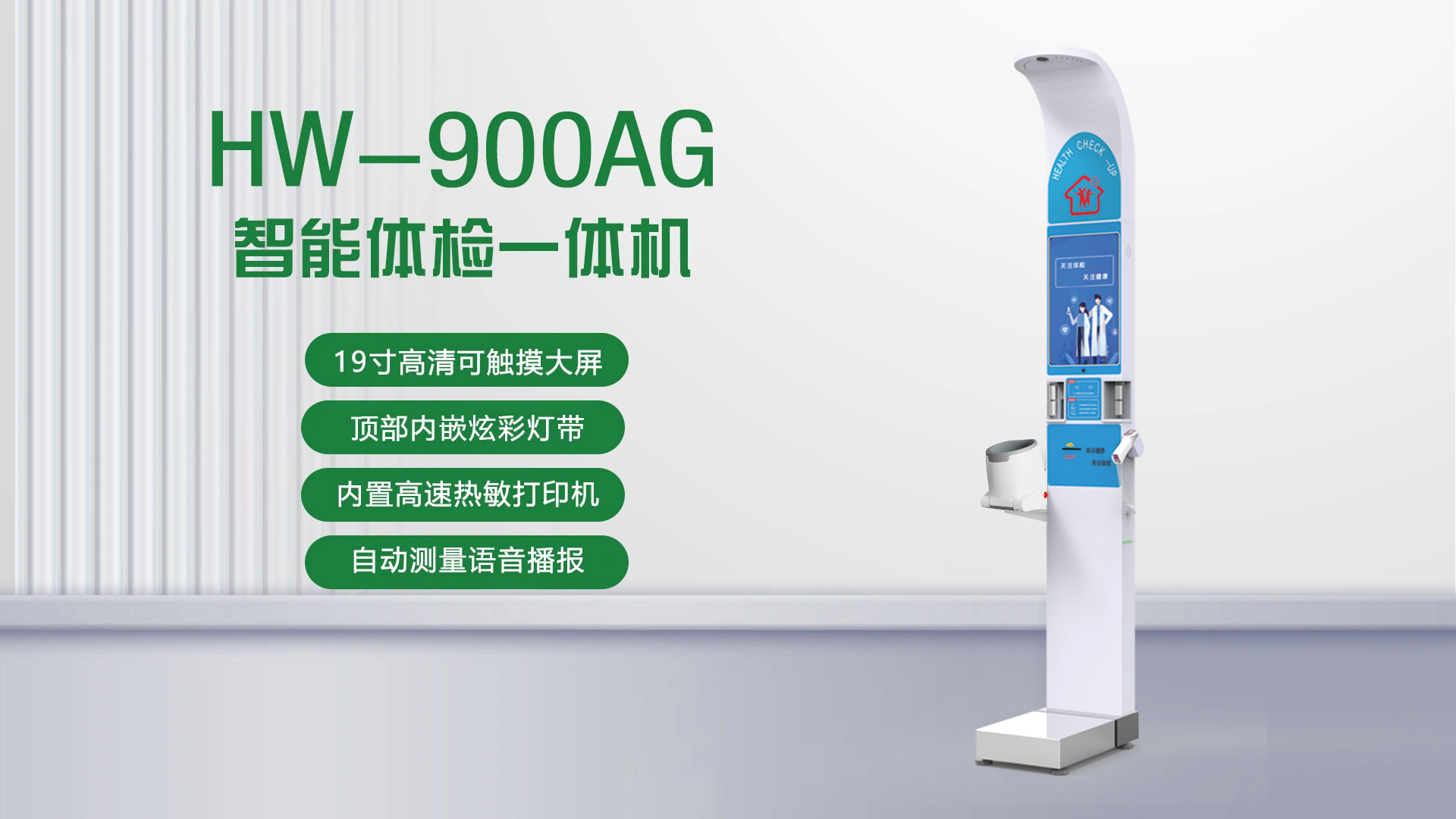

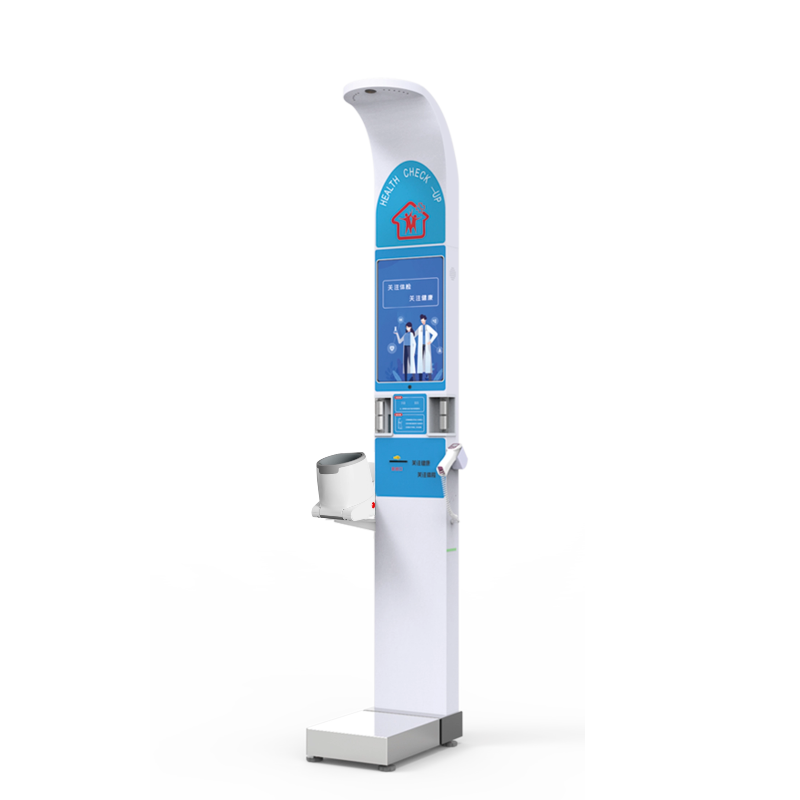

HW-900AG Large-screen Height and Weight All-in-One Machine

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: Height, weight, BMI, human body composition (17 items), blood pressure, heart rate, blood oxygen, body temperature
Height range: 0-200CM
Weight range: 1-500KG
Product Advantages:
19-inch high-definition touch screen
Built-in high-speed thermal printing
Ultrasonic contactless measurement
Fully automatic voice broadcast

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

Product Introduction

HW-900AG Large-screen height and weight all-in-one machine can measure height, weight, blood pressure, and other health indicators. The blood pressure monitor uses Omron/Panisham blood pressure monitor, 19-inch LCD touch screen, and guided self-service measurement throughout the process. There are voice operation prompts and measurement results broadcast during the operation. It is suitable for public health physical examinations, hospitals, physical examination centers, health centers, health centers, health centers, elderly health centers and other places.

Testing items

Features

STEP ONE

One-stop integrated design

Various physical examinations can be completed in one stop, height, weight, BMI body index, heart rate, body temperature, blood oxygen, body temperature, etc., which can be configured as needed according to customer needs.

learn more
STEP TWO

32-inch large screen display

The use of high-precision ultrasonic probes can realize the temperature compensation function, and the adaptive automatic compensation of the environment makes height detection more accurate.

learn more
STEP THREE

HD large screen

19-inch LCD touch screen, self-service measurement of various health indicators, can automatically enter gender and age, and complete the entire measurement process according to instructions, which is simple and convenient.

learn more

STEP ONE

Big brand blood pressure meter

Adopt an arm-type electronic blood pressure monitor.

learn more
STEP TWO

Data transmission

The standard RS232 communication interface can connect to the unit's physical examination system, upload measurement data, stable transmission data performance, and provide free serial port protocol.

learn more
STEP THREE

Built-in thermal printer

High-speed thermal printing measurement report, automatic paper cutting, easy to change paper, easy to operate, convenient and practical.

learn more

Functional parameters

Product model	HW-900AG Ultrasonic Intelligent Physical Examination Machine
Ultrasonic height detector	High-precision height probe measuring height 0-500cm accuracy 0.1cm
High-precision pressure sensor	High-precision balanced beam pressure sensor weighing 1-500kg Accuracy 0.1kg
Fully automatic blood pressure meter	Medical pulse wave blood pressure meter, oscillometric method, 17-42cm large boom, accuracy within ±3mm Hg
Heart rate measurement range	40-180 times/min
Human body composition testing	17 health information such as fat, basal metabolism, moisture, muscle, protein, fat removal weight, bone salt, and intracellular fluids.
Blood oxygen test	Refers to clip-type blood oxygen detection, measuring range 35-100% (±2% normal state {75-100%}, ±3% motion or weak perfusion below 70% undefined), measurement accuracy ±2% resolution 1%
Temperature test	Contactless precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ distance 1-5cm
Operation method	High-definition dual-screen (multimedia advertising screen + high-definition touch operation screen), audio and video guidance operation
Data transmission	RS-232 serial port upload computer, optional Bluetooth or wireless transmission to mobile phone
Power supply voltage	ＡＣ110－240V, 50HZ
Physical identification of traditional Chinese medicine	The nine major physiques of traditional Chinese medicine can be automatically judged and analyzed, and the two systems of 33 questions and 66 questions can be selected.
External dimensions	MAX: 3355235CM
Net weight of the whole machine	42kg
Average power consumption	≤60W
Eight login methods	Temperature: -10℃-+40℃, humidity: ≤85%
Working environment	8 evaluation methods
Vision color blindness	Wireless infrared remote control operation 9-inch LCD touch screen to measure vision color blindness
Operation method	The industrial control host uses three-screen collaborative work to complete the physical examination in an intelligent one-stop
Power supply voltage	AC: 110V-240V, 50Hz; DC: 12V±10%
Average power consumption	≤60W
Working environment	Temperature: -10℃-+40℃, humidity: ≤85%
External dimensions	MAX: 180 (L) × 180 (W) × 235 (H) cm
Expand functions	Alcohol testing, bone density and other functions are optional

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
