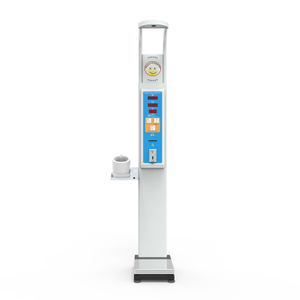

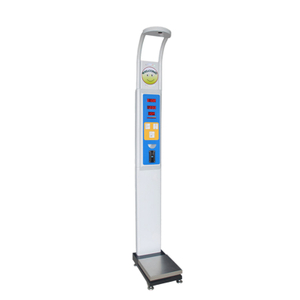

HW-900Y ultrasonic Height and Weight Scale

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: Height, Weight, BMI
Height range: 0-210CM
Weight range: 1-500KG
Product Advantages:
High-precision ultrasonic detector, contactless alveolar measurement
Use LED digital display screen to display time, temperature and date by standby
High-speed thermal printing, easy to change paper

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

Product Introduction

HW-900Y ultrasonic Height and Weight Scale uses ultrasonic precision height measurement, automatic temperature compensation and precision pressure sensor, precise measurement of height, weight, BMI and other health indicators, and highlight LED digital display, which is not affected by external light and viewing angle. The standby state displays date, time, and indoor temperature. Clear voice automatically broadcasts high-speed thermal printing physical examination report, and scans the QR code to view measurement results on the mobile phone.

Testing items

Features

STEP ONE

Height measurement method

Ultrasonic non-contact ranging, and achieves temperature difference compensation, without being affected by the external environment, measurement accuracy and accurate measurement.

learn more
STEP TWO

Weight measurement method

High-precision balanced beam pressure sensor weighing.

learn more
STEP THREE

Operation method

1.8-inch high-bright LED digital display is not affected by external light and viewing angle. The standby state displays date, time, and indoor temperature.

learn more

STEP ONE

Fully automatic voice broadcast

The system clearly guides the voice and automatically reports the measurement results.

learn more
STEP TWO

Data transmission

The standard RS232 communication interface can connect to the unit's physical examination system, upload measurement data, stable transmission data performance, and provide free serial port protocol.

learn more
STEP THREE

Built-in thermal printer

High-speed thermal printing measurement report, automatic paper cutting, easy to change paper, easy to operate, convenient and practical.

learn more

Functional parameters

Ultrasonic height detector	High-precision height probe measuring 0-210cm accuracy 0.1cm
High-precision pressure sensor	High-precision balanced beam pressure sensor weighing 1-500kg accuracy 0.1kg
Printing function	High-speed thermal printer for easy paper change
Operation method	1.8-inch large digital tube display, audio and video guidance operation
Data transmission	RS-232 serial port upload computer, optional Bluetooth or wireless transmission to mobile phone
Power supply voltage	AC110-240V, 50HZ
External dimensions	MAX:3355235CM
Net weight of the whole machine	40KG
Average power consumption	≤10W
Working environment	Temperature: -10℃-+40℃, humidity: ≤85%

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
