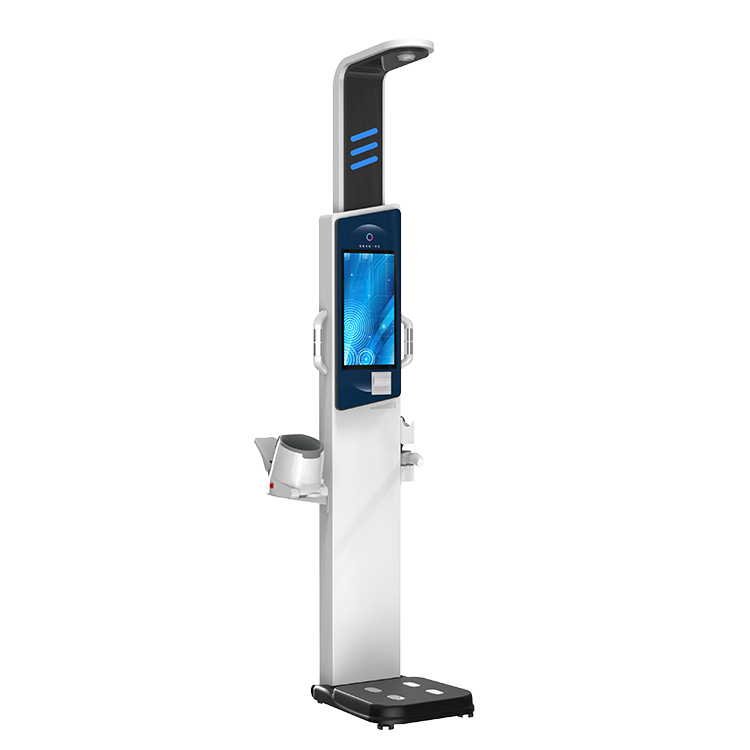

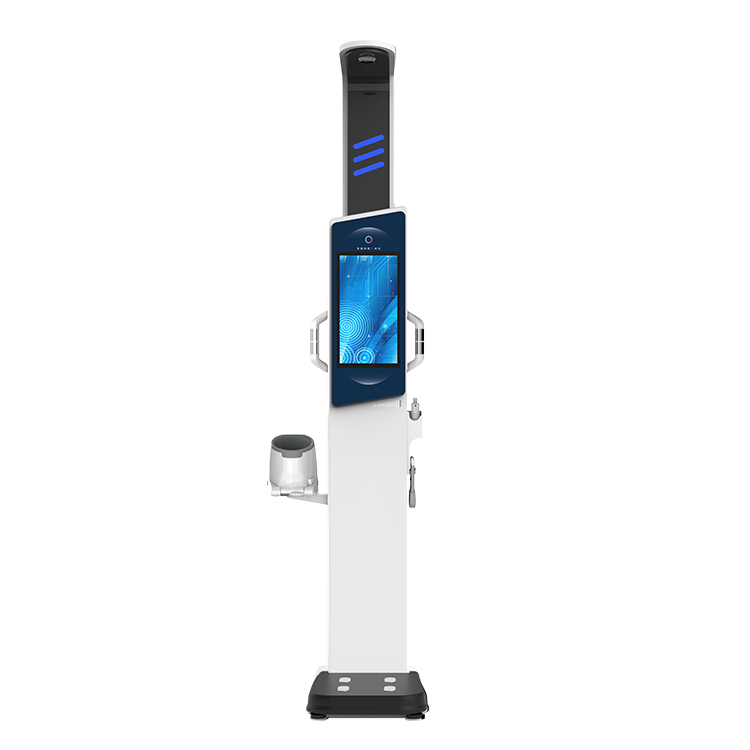

HW-V9G large-screen intelligent physical examination machine

Product Introduction

Pre-sale consultation phone number: 13838063822

Measurement items: height, weight, BMI, human body composition, blood pressure, heart rate, blood oxygen, body temperature
Expand functions: rapid electrocardiogram, color blindness, vision, blood sugar, uric acid, etc.
Product Advantages:
High-definition touchable large screen
The colorful light strip is embedded on the top, beautiful and atmospheric
Stable chassis, round and without rhombus
Adopt an arm-type electronic blood pressure meter, rotatable left and right, adjustable height

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

V9G

Product Introduction

The HW-V9 intelligent physical examination all-in-one machine is a comprehensive integrated health physical examination equipment based on the national public health service system. The data management system it carries can quickly collect data information, conduct data analysis through cloud computing, provide basic data for health guidance, and realize the intelligence, integration and precision of chronic disease management.

Standard functions

Expand functions

Features

STEP ONE

Operation method

10.2-inch high-definition touch-large screen to play health education knowledge; touch screen displays operation steps and measurement results.

learn more
STEP TWO

Appearance design

The colorful light strips are embedded on the top, which are beautiful and atmospheric.

learn more
STEP THREE

Adjustable blood pressure meter

It adopts an arm-type electronic blood pressure meter, which can be rotated left and right, and can be adjusted up and down, making it convenient for blood pressure measurement in different positions.

learn more

STEP ONE

Strong and durable chassis

The chassis is steady, round and without edges.

learn more
STEP TWO

Intelligent Internet

Provide measurement data to bind to WeChat official account, scan the QR code for the measurement results on your mobile phone, send the measurement results to your mobile phone, record each physical examination report, form a health curve chart and provide health suggestions, which facilitates record preservation and comparison.

learn more
STEP THREE

Printing method

Built-in thermal printer, high-speed thermal printing measurement report, automatic paper cutting, easy to change paper, easy to operate, convenient and practical.

learn more

Functional parameters

Product model	HW-V9 intelligent physical examination machine
Ultrasonic height detector	High-precision height probe measuring 0-210cm accuracy 0.1cm
High-precision pressure sensor	High-precision balanced beam pressure sensor weighing 1-300kg Accuracy 0.1kg
Fully automatic blood pressure meter	Medical pulse wave blood pressure meter, oscillometric measurement method, 17-42cm large boom, accuracy within ±3mmHg
Heart rate measurement range	40-180 times/minute
Human body composition testing	17 health information such as fat, basal metabolism, moisture, muscle, protein, fat removal weight, bone salt, and intracellular fluids.
Blood oxygen test	Finger-type blood oxygen detection is an important physiological index of respiratory cycle, measuring accuracy ±2% resolution 1%
Temperature test	Contactless precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ distance 1-5c
Operation method	19-inch high-definition touch operation screen, audio and video guidance operation
Data transmission	RS-232 serial port upload computer, optional Bluetooth or wireless transmission to mobile phone
Power supply voltage	AC110-240V, 50HZ
External dimensions	MAX:5860235CM
Net weight of the whole machine	35KG
Average power consumption	≤45W
Working environment	Temperature: -10℃-+40℃, humidity: ≤85%

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students' physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
