HW-500 new height, weight and body fat scale

HW-500 new height, weight and body fat scale

Product Introduction

Pre-sale consultation phone number: 13838063822
Measurement items: height, weight, BMI, human body composition

Product Advantages:

Contactless height measurement
25-item body composition analysis
10.1-inch high-definition touch screen
Unique disc lantern design
Intelligent voice and self-service printing

Availability:



Inquire

Product Description

Features

Product parameters

Scope of application

Customer Cases

Product Introduction

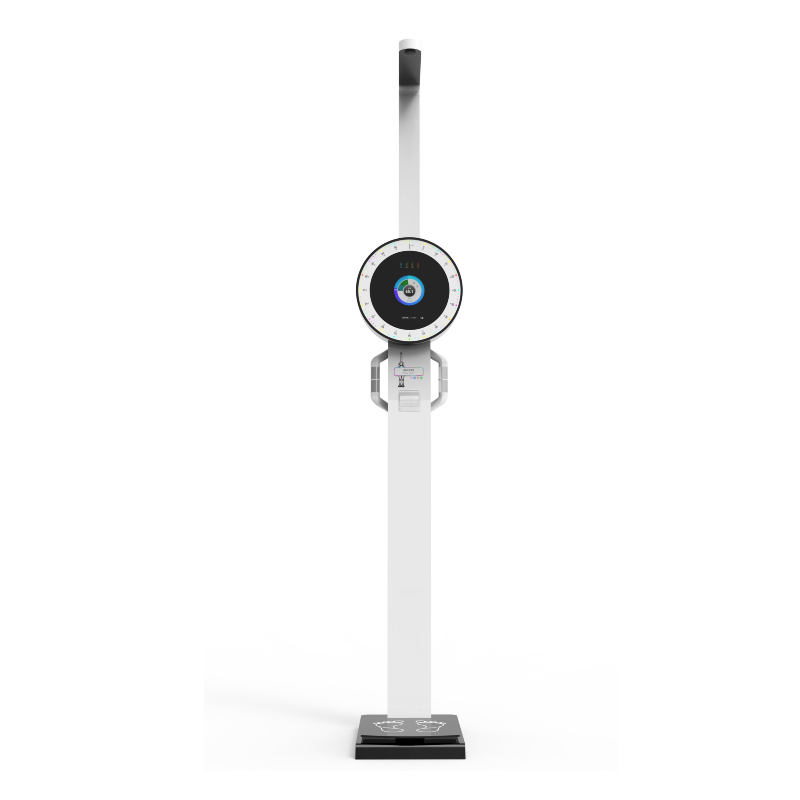

The HW-500 ultrasonic height, weight and body fat measuring instrument is an intelligent health terminal that integrates height, weight, BMI and 25 body composition measurements. It adopts ultrasonic non-contact height measurement and multi-frequency bioelectrical impedance analysis technology, combined with Android intelligent operating system and 10.1-inch high-definition touch screen, to provide users with self-service, fast and accurate comprehensive physical examination services. Data can be uploaded to the hospital system or health management platform in a variety of ways, supporting WeChat login, scanning QR codes to obtain reports, thermal printing and other functions. It is widely used in hospitals, physical examination centers, pharmacies, health cabins, gyms and other scenarios.

Testing items

Features

STEP ONE

Contactless height measurement

Adopt high-precision ultrasonic probe and real-time temperature compensation

learn more
STEP TWO

High-definition touch screen

The operation is smooth, the analog dial pointer displays the time in standby, and a variety of dial graphics can be switched, which is full of technology.

learn more
STEP THREE

Fully automatic voice broadcast

The whole process guided measurement is provided, the voice prompts are loud, the system intelligent voice prompts and automatically broadcasts the measurement results.

learn more

STEP ONE

Unique disc lantern design

High-hardness tempered glass panel, safe and explosion-proof. After the measurement is completed, the disc lantern automatically changes color according to the BMI value, making the health status clear at a glance.

learn more
STEP TWO

Flexible data transfer

The serial port protocol is provided for free, and the upload server address can be customized to easily connect to the hospital management system or third-party APP.

learn more
STEP THREE

Intelligent voice and self-service printing

The measurement results will be announced by voice throughout the process. After the measurement is completed, a QR code will be generated, which can be scanned with your mobile phone to obtain a detailed physical examination report. Built-in high-speed thermal printer, supports custom headers and footers, and reports are available immediately.

learn more

Functional parameters

Product model	HW-500 ultrasonic height, weight and body fat measuring instrument (new model)
Altitude measurement devices	High-precision ultrasonic detector
Focus on sensors	High-precision balanced beam pressure sensor
Display method	HD touch display
Login method	Standard: Personal account, WeChat code scanning Optional: ID card reader, face recognition
Displayed during standby	Date, time, temperature
Displayed during measurement	Height/weight/BMI/body composition
How to measure body composition	Multi-frequency bioelectrical impedance method, fixed hand electrode
voice	The system intelligent voice prompts and automatically broadcasts measurement results
Power supply voltage	AC 100-240V, 50/60Hz; DC 12V/2A
operating system	Android system
Operating temperature	Temperature -10℃ ~ +40℃
power	≤10W
The weight of the whole machine	≤25kg
External dimensions	693(L) × 400(W) × 2463(H) mm

Scope of application

Healthy Lodge

Through the health huts of community and township health centers, comprehensively carry out health education, health testing, health assessment, health guidance reports, help residents to do a good job in health prevention, and assist chronic patients with health follow-up.
Elderly care institutions

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
School Institutions

With the improvement of health awareness, more and more schools have begun to pay attention to students" physical health and incorporate health examinations into their daily management system.
Medical Institutions

Help grassroots medical institutions build Internet + intelligent chronic disease management centers with the minimum cost, and provide efficient tools for grassroots medical and health institutions.
Enterprises

Help institutions establish, update and collect personnel health records. Statistics on the number and proportion of various chronic patients, which is conducive to the management of institutions, personnel allocation and other work, prevent in advance, and reduce risks.
Physical Examination Center

The services provided by the physical examination center are more comprehensive and meticulous, suitable for comprehensive assessment of health status; while Intelligent Health Check-up Kiosk is more suitable for daily health monitoring and preliminary screening. The two functions complement each other and can provide people with a comprehensive range of health services.
